Sony HBD-E280 - Switching Regulator (SWR1) Disassembly

HBD-E280/T28
16

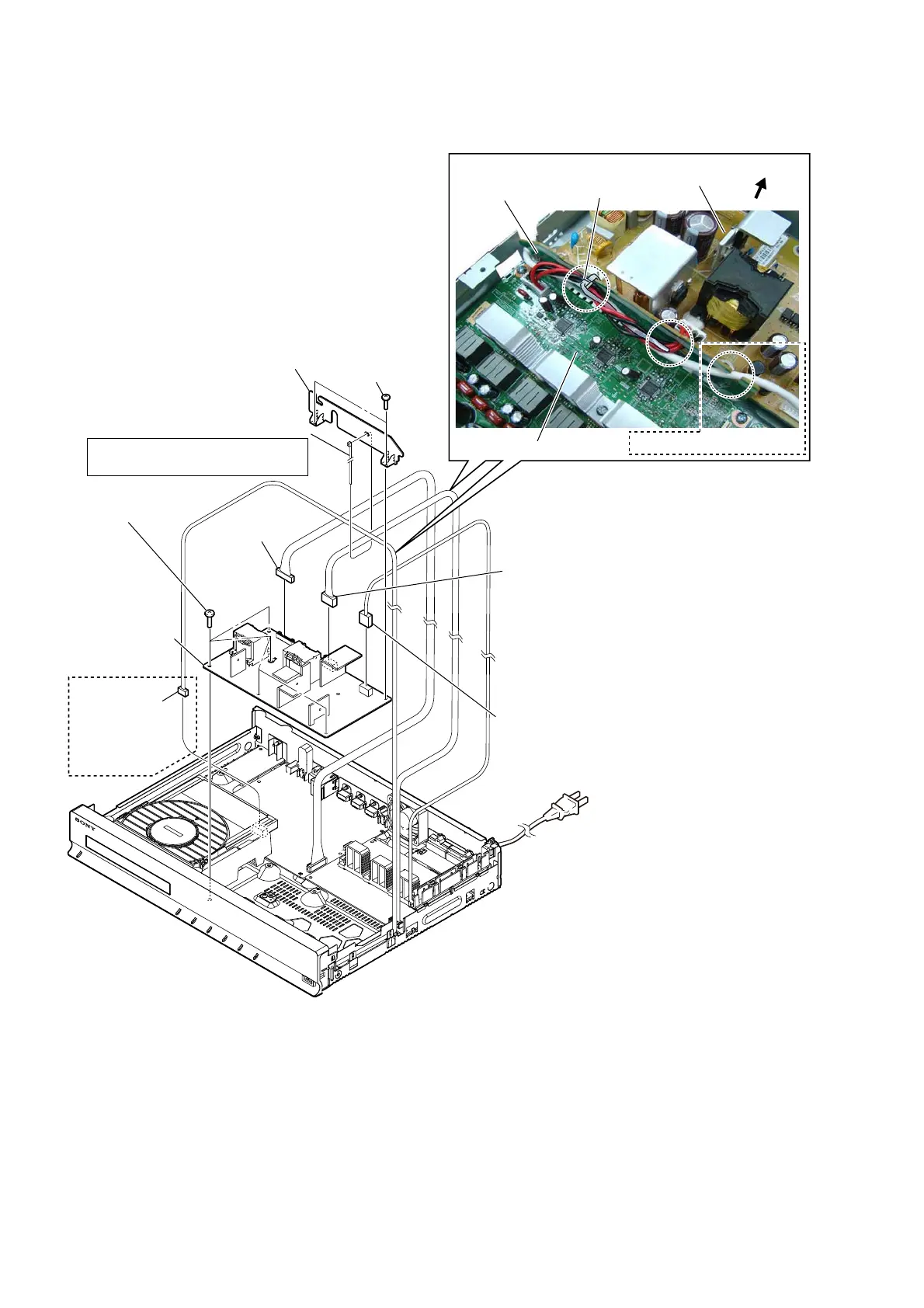

2-9. SWITCHING REGULATOR (SWR1)
8 five screws
(BV3)
3 two screws
(BV3)
9 switching regulator
(SWR1)
5 power cord connector
(CN1)
6 connector
(CN101)
2 connector
(CN602)
7 connector
(CN301)
Note:
In reassembling, use new cable tie
to fasten the clamp same as before.
1
Cut the cable tie.
4
HOLD WIRE board
front side
AMP board
:LUHVHWWLQJ
switching regulator
(SWR1)
HOLD WIRE board
cable tie
$(3,78.$860;
$(3,78.
$860;
Ver. 1.1
• Abbreviation
AUS : Australian model
IT : Italian model
MX : Mexican model
