Sony HBD-E280 - Chassis Section Exploded View

78
HBD-E280/T28

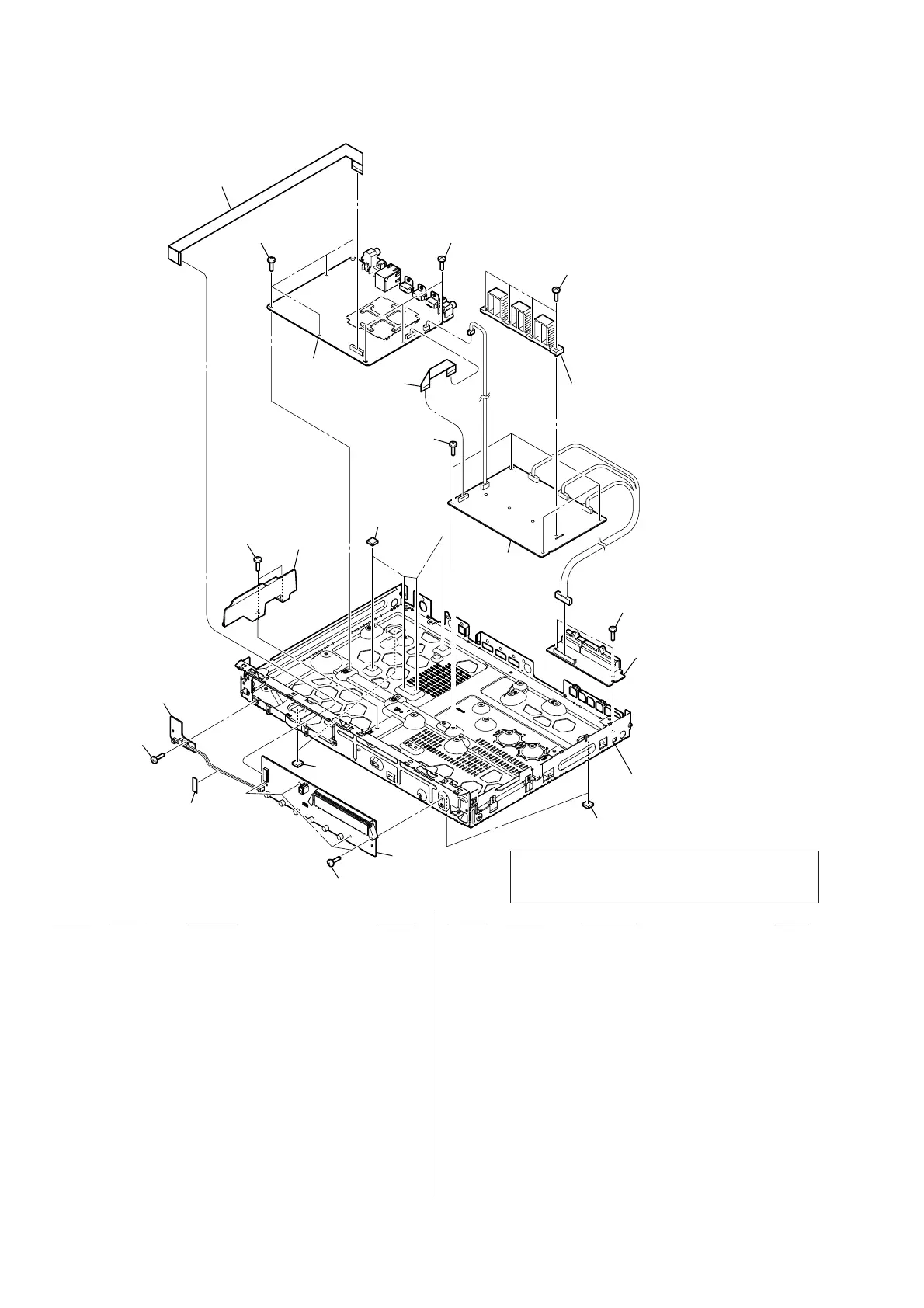

6-3. CHASSIS SECTION
101 3-077-331-21 +BV3 (3-CR)
102 4-231-099-91 SHEET, RADIATION
103 A-1815-452-A DISPLAY BOARD, COMPLETE
(E280: US, CND, AUS, PX, MX/T28)
103 A-1815-453-A DISPLAY BOARD, COMPLETE (E280: AEP, IT, UK)
9 104 A-1816-360-A MB-141 BOARD, COMPLETE (for SERVICE)
(E280: US)
9 104 A-1816-361-A MB-141 BOARD, COMPLETE (for SERVICE)
(E280: CND)
9 104 A-1816-362-A MB-141 BOARD, COMPLETE (for SERVICE)
(E280: PX)
9 104 A-1816-363-A MB-141 BOARD, COMPLETE (for SERVICE)
(E280: AEP)
9 104 A-1816-364-A MB-141 BOARD, COMPLETE (for SERVICE)
(E280: UK)
9 104 A-1816-366-A MB-141 BOARD, COMPLETE (for SERVICE)
(E280: AUS)
9 104 A-1816-367-A MB-141 BOARD, COMPLETE (for SERVICE)
(E280: MX)
9 104 A-1816-371-A MB-141 BOARD, COMPLETE (for SERVICE)
(T28: CND)
9 104 A-1816-372-A MB-141 BOARD, COMPLETE (for SERVICE)
(T28: MX)
9 104 A-1832-609-A MB-141 BOARD, COMPLETE (for SERVICE)
(E280: IT)
105 A-1799-980-A POWER KEY BOARD, COMPLETE
106 3-077-331-11 +BV3 (3-CR)
107 A-1801-264-A AMP BOARD, COMPLETE
108 4-232-478-31 FOOT
109 1-828-778-51 WIRE (FLAT TYPE) (26 CORE)
110 1-842-929-51 WIRE (FLAT TYPE) (15 CORE)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
not supplied
not supplied
not supplied
not supplied
101
110
101
101
101
101
101
105
102
103
104
106
107
108
108
101
109
not supplied
(SPEAKER board)
Note: Wires (fl at type) for service is all straight.
Please bend it referring go “HOW TO BEND FFC”
on page 11 when you install it in the unit.
Ver. 1.1
