Sony HBD-E280 - BD Drive Section (BPX-6) Exploded View

79
HBD-E280/T28

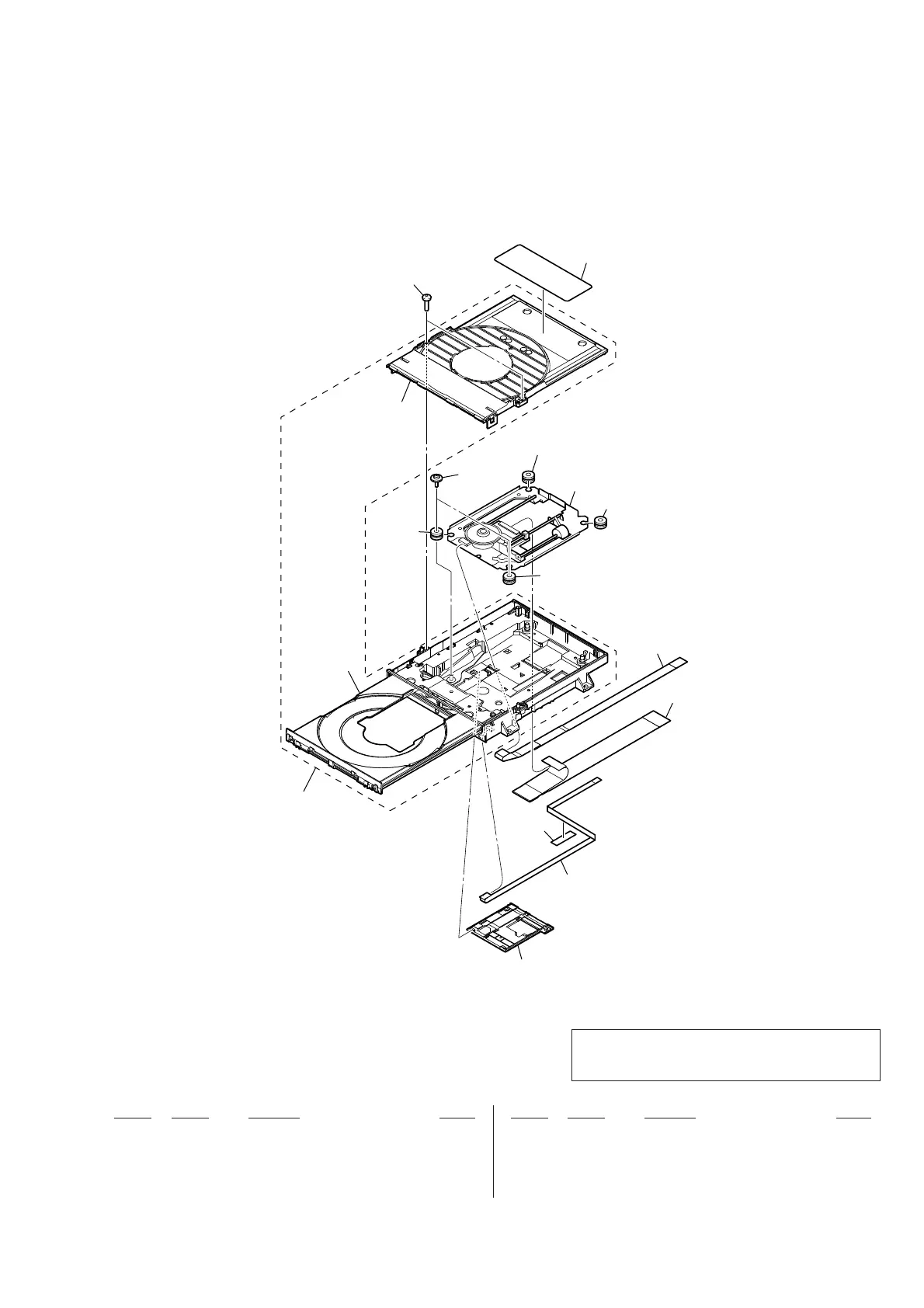

6-4. BD DRIVE SECTION (BPX-6)
151 4-175-656-01 HOLDER, FFC (REAR)
152 A-1750-926-A LOADING FOR SERVICE
153 3-087-053-11 +BVTP2.6 (3CR)
154 2-345-115-01 SCREW (S), FLOAT
155 4-175-937-11 INSULATOR
0 156 8-820-445-04 OPTICAL PICK-UP BLOCK (KEM-470AAA/C2RP)
157 1-838-606-51 WIRE (FLAT TYPE) (9 CORE)
158 1-838-604-51 WIRE (FLAT TYPE) (45 CORE)
159 1-828-292-51 WIRE (FLAT TYPE) (5 CORE)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
not supplied
152
151
not
supplied
not supplied
159
158
157
154
156
155
155
155
155
not supplied
153
Note: Wires (fl at type) for service is all straight.
Please bend it referring go “HOW TO BEND FFC”
on page 11 when you install it in the unit.
