Sony HBD-E280 Service Manual

HBD-E280/T28
17

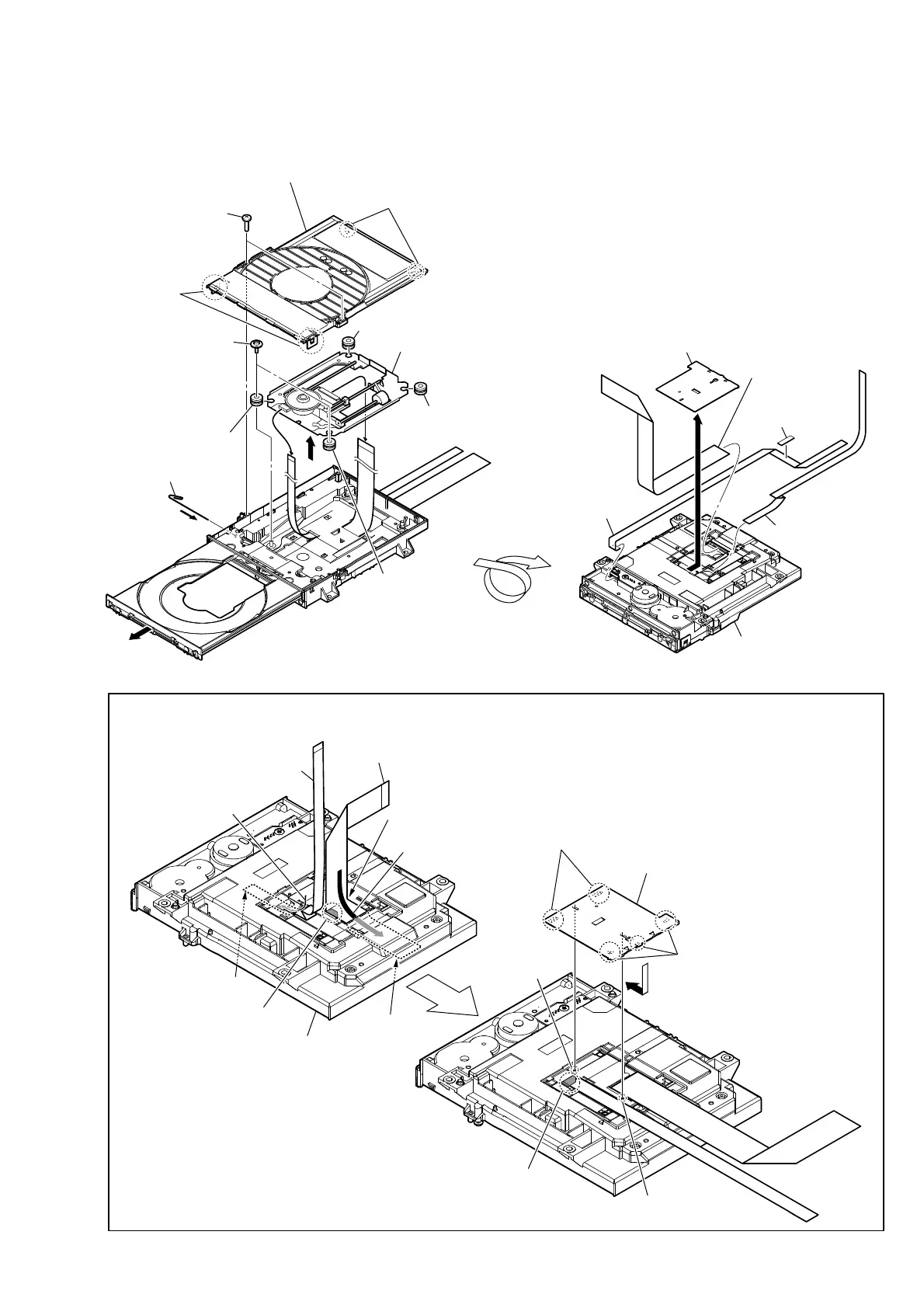

2-10. OPTICAL PICK-UP BLOCK (KEM-470AAA), WIRE (FLAT TYPE)
1 two screws
(BVTP 2.6)
7 two float screws (S)
qa insulator
5 Insert the thin
wire (clip etc.).
qa insulator
qa insulator
qs optical pick-up block
(KEM-470AAA)
qa insulator
qd non-halogene
tape
qf wire (flat type) (5 core)
qk wire (flat type)
(45 core)
qj wire (flat type)
(9 core)
loading assy (D)
qh ffc holder (rear)
2 two claws
6
8
9
qg
0
3 two claws
4 chuck holder assy (D)
– Bottom view –
1 wire (flat type) (45 core)
Fold
Under the guide.
Under the guide.
(Fold area)
boss
boss
loading assy (D)
terminal face
terminal face
2 Through the hole.
4 Through the hole.
3 wire (flat type) (9 core)
5 ffc holder (rear)
7 two claws
7 three claws
6
,QVWDOODWLRQRIZLUHIODWW\SHFRUHDQGZLUHIODWW\SHFRUH
Note:
This illustration sees the loading assy (D) from bottom side.

Sony HBD-E280 Specifications

General

Channels	5.1
HDMI Inputs	1
USB Playback	Yes
Bluetooth	No
Weight	2.7 kg
Blu-ray Disc Player	Yes
DVD Player	Yes
CD Player	Yes
USB Port	Yes
HDMI Output	1
Digital Coaxial Audio Output	No
Ethernet Port	Yes
Wi-Fi	No
Dimensions (W x H x D)	430 x 320 mm
Type	Blu-ray Disc Player
