HBD-E280/T28
11
SECTION 2
DISASSEMBLY
• This set can be disassembled in the order shown below.

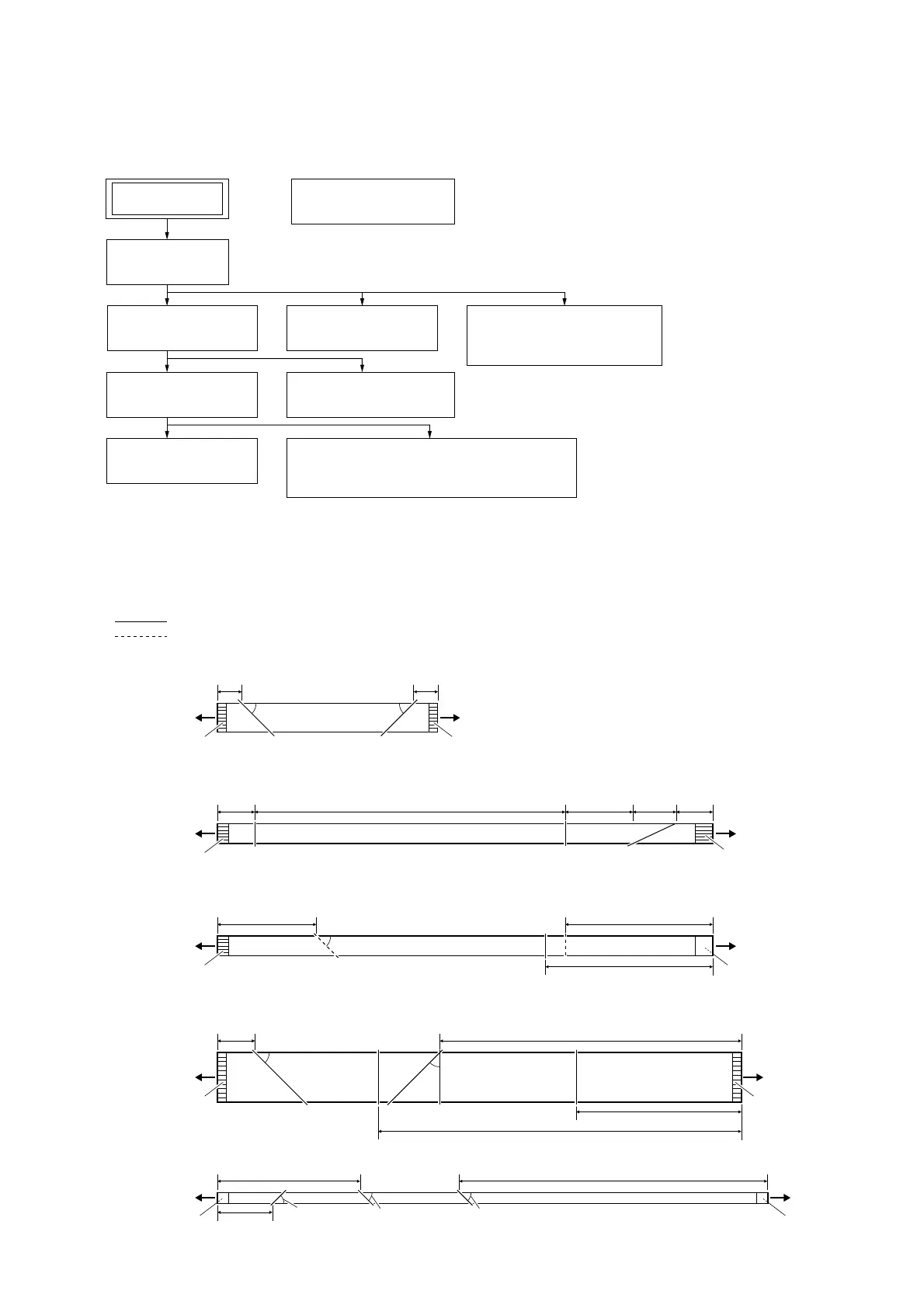

2-1. DISASSEMBLY FLOW
2-2. CASE (E0)
(Page 12)
SET
2-9. OPTICAL PICK-UP BLOCK (KEM-470AAA),
WIRE (FLAT TYPE)
(Page 17)
2-7. SWITCHING REGULATOR
(SWR1)
(Page 16)
2-6. AMP BOARD
(Page 15)
2-4. BD DRIVE (BPX-6)
(Page 13)
2-8. FRONT PANEL ASSY
(Page 13)
2-3. LOADING PANEL
(Page 12)
2-5. MB-141 BOARD
(Page 14)
2-2. HOW TO BEND FFC
(Page 11)
: Mountain fold
: Valley fold
wire (flat type) (26 core), length 100 mm (Ref. No. 109)
wire (flat type) (9 core), length 225 mm (Ref. No. 157)
wire (flat type) (45 core), length 238 mm (Ref. No. 158)
wire (flat type) (5 core), length 250 mm (Ref. No. 159)
11 mm 11 mm
45º
45 mm 67 mm
76 mm
45º
17 mm
65 mm 140 mm
25 mm
137 mm
75 mm
165 mm
45º
45º
45º
45º
45º
45º
MB-141 board
(CN5905)
AMP board
(CN3002)
The upper side
is contact side.
MB-141 board
(CN2460)
The upper side
is contact side.
MB-141 board
(CN1301)
MB-141 board
(CN2470)
The upper side
is contact side.
The upper side
is contact side.
The upper side
is contact side.
BD drive
(BPX-6)
BD drive
(BPX-6)
BD drive
(BPX-6)
The lower side
is contact side.
The lower side
is contact side.
The lower side
is contact side.
wire (flat type) (15 core), length 220 mm (Ref. No. 110)
12 mm
150 mm 31 mm 15 mm 12 mm
MB-141 board
(CN6201)
The upper side
is contact side.
DISPLAY board
(CN02)
The upper side
is contact side.
