Sony HBD-E280 - Power Block Section Exploded View

77
HBD-E280/T28

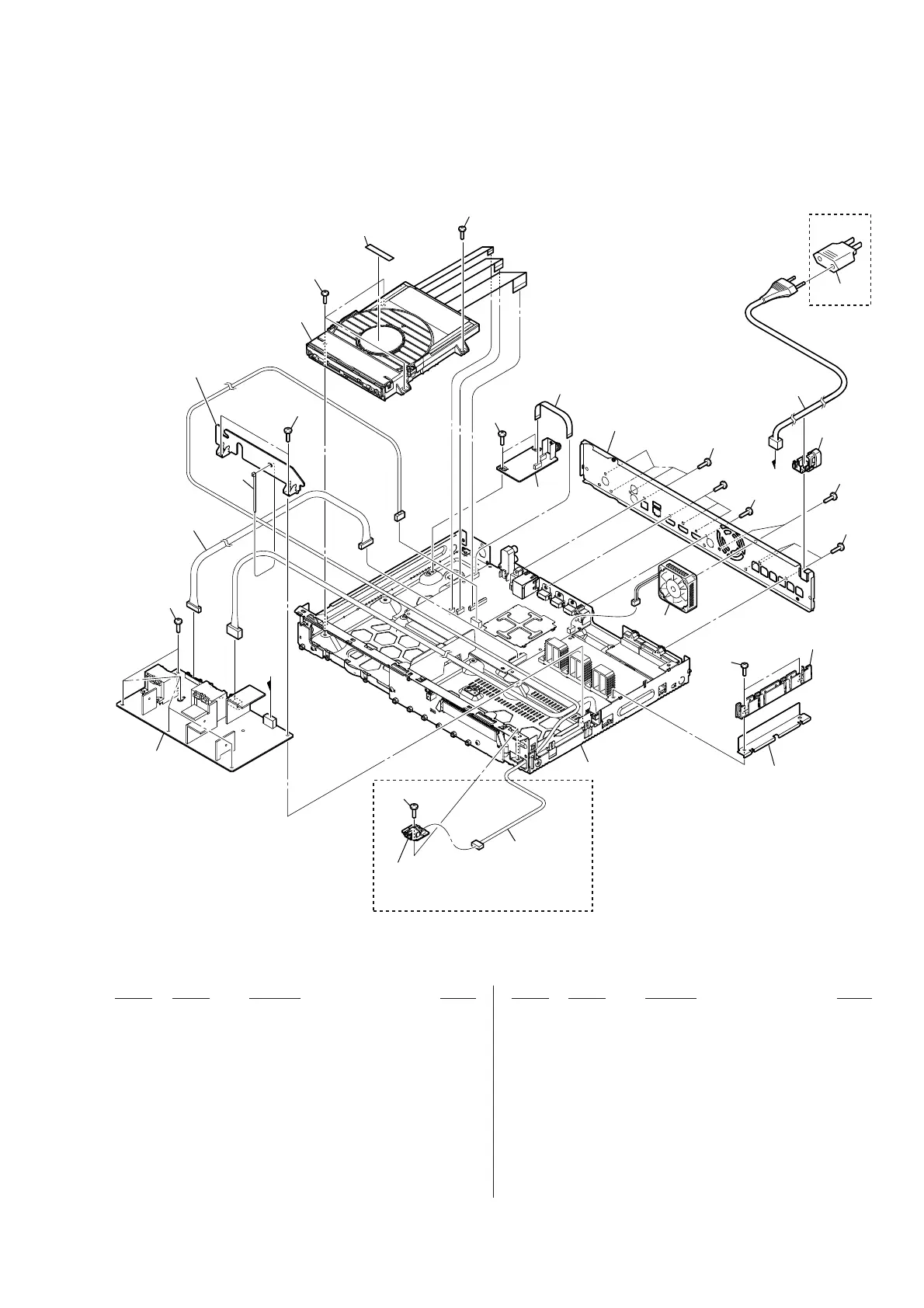

6-2. POWER BLOCK SECTION
51 3-077-331-21 +BV3 (3-CR)
52 A-1799-983-A TUNER BOARD, COMPLETE (US, CND, PX)
52 A-1799-986-A TUNER BOARD, COMPLETE (AEP, IT, UK)
52 A-1799-989-A TUNER BOARD, COMPLETE (AUS, MX)
53 4-162-271-01 SCREW, TAPPING
54 3-077-331-11 +BV3 (3-CR)
0 55 1-777-071-23 CORD, POWER (PX)
0 55 1-777-071-83 CORD, POWER (AEP, IT, MX)
0 55 1-835-068-21 CORD, POWER (AUS)
0 55 1-837-308-11 CORD, POWER-SUPPLY (US, CND)
0 55 1-837-309-21 CORD, POWER-SUPPLY (UK)
0 56 3-113-062-01 CORD BUSH (2104)
57 1-828-295-51 WIRE (FLAT TYPE) (7 CORE)
58 1-967-633-11 HARNESS (USB) (AEP, IT, UK, AUS, MX)
0 59 1-569-008-22 ADAPTOR, CONVERSION (PX, MX)
M1 1-855-032-11 FAN, D.C.
SWR1 1-474-270-11 REGULATOR, SWITCHING (EDPS-170AF B)
(EXCEPT PX, MX)
SWR1 1-474-271-11 REGULATOR, SWITCHING (EDPS-170AF C)
(PX, MX)
#1 7-682-546-09 SCREW +B 3X5
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
59
(PX, MX)
51
52
not supplied
#1
M1
chassis section
54
55
56
54
54
57
54
not supplied
BD drive section
(BPX-6)
51
not supplied
SWR1
not supplied
not supplied
not
supplied
51
51
58
51
53
51
not supplied
(HOLD WIRE board)
not supplied
(FRONT USB board)
A
A
(AEP, IT, UK, AUS, MX)
Ver. 1.1
