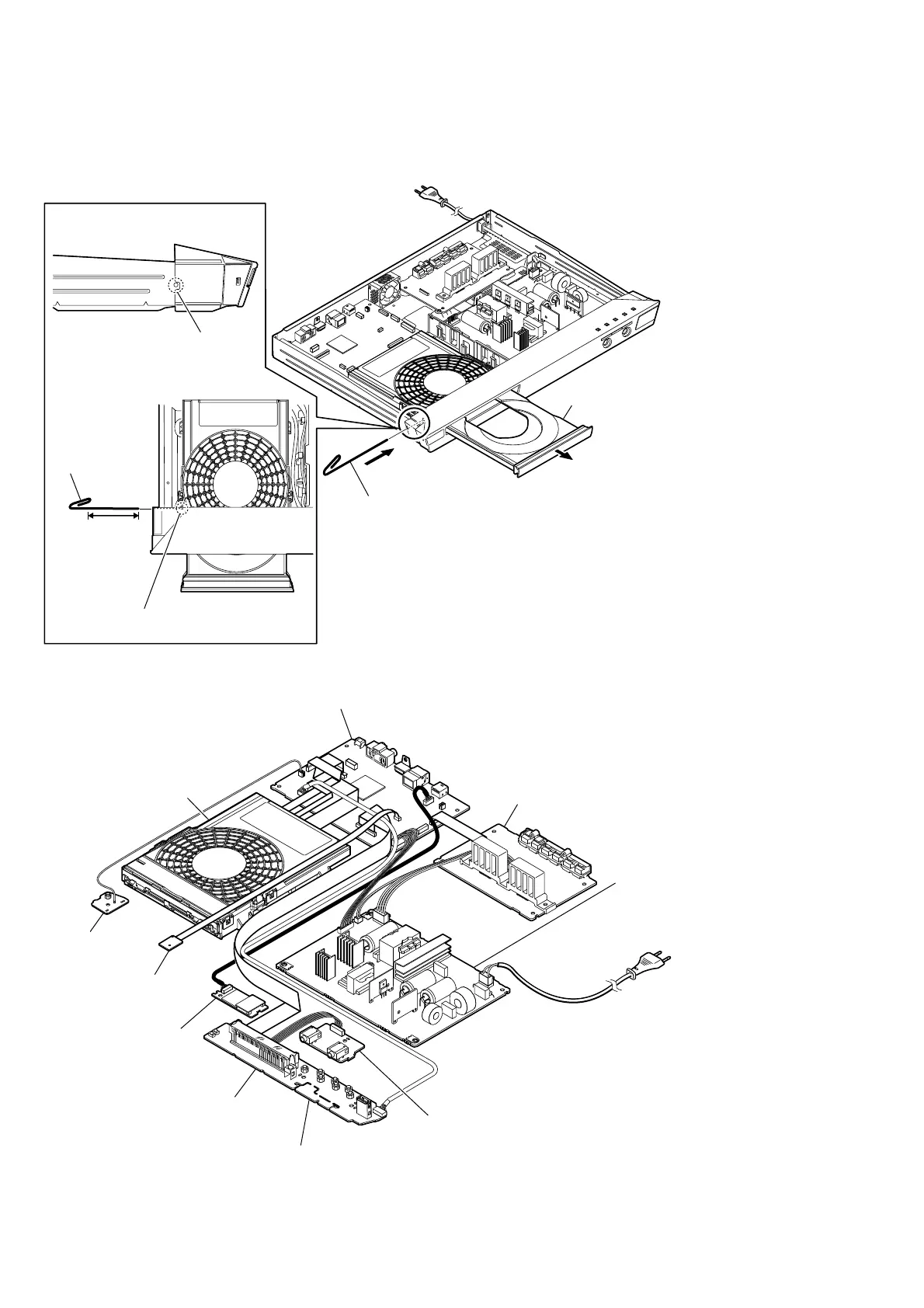

HOW TO OPEN THE TRAY WHEN POWER SWITCH TURN OFF
Note 1: After the case is removed, this work is done.
Note 2: Please prepare the thin wire (clip etc. processed to the length of 8 cm or more).
SERVICE POSITION
1 Remove the case.
(Illustration of disassembly is omitted.)
2 Insert the clip etc.
3
tray
tray
BD drive
Insert the clip etc.
processed to the
length of 8 cm or
more in the hole
on the side of the
chassis and push.
8 cm or more
hole
– Side view –
– Top view –
Note:
Push after it inserts it in this hole well.
MB1002 board
AMP board
BD drive (BPX-7)
POWER KEY board
KARAOKE board
(SP, RU)
NON-KARAOKE board
(EXCEPT SP, RU)
PANEL board
RC-S801/A (WW)
switching regulator (SWR1)
(3L392W-1) (US, CND, AEP, UK,
SAF, SP, TW, AUS,
TH, CH)
(3L392W) (E3, E51, PX, EA, E12,
E32, RU, MX6, AR)
card, WLAN/BT COMBO
