Sony HBD-E4100 - Front Panel Section

77
HBD-E2100/E3100/E3200/E4100/E6100

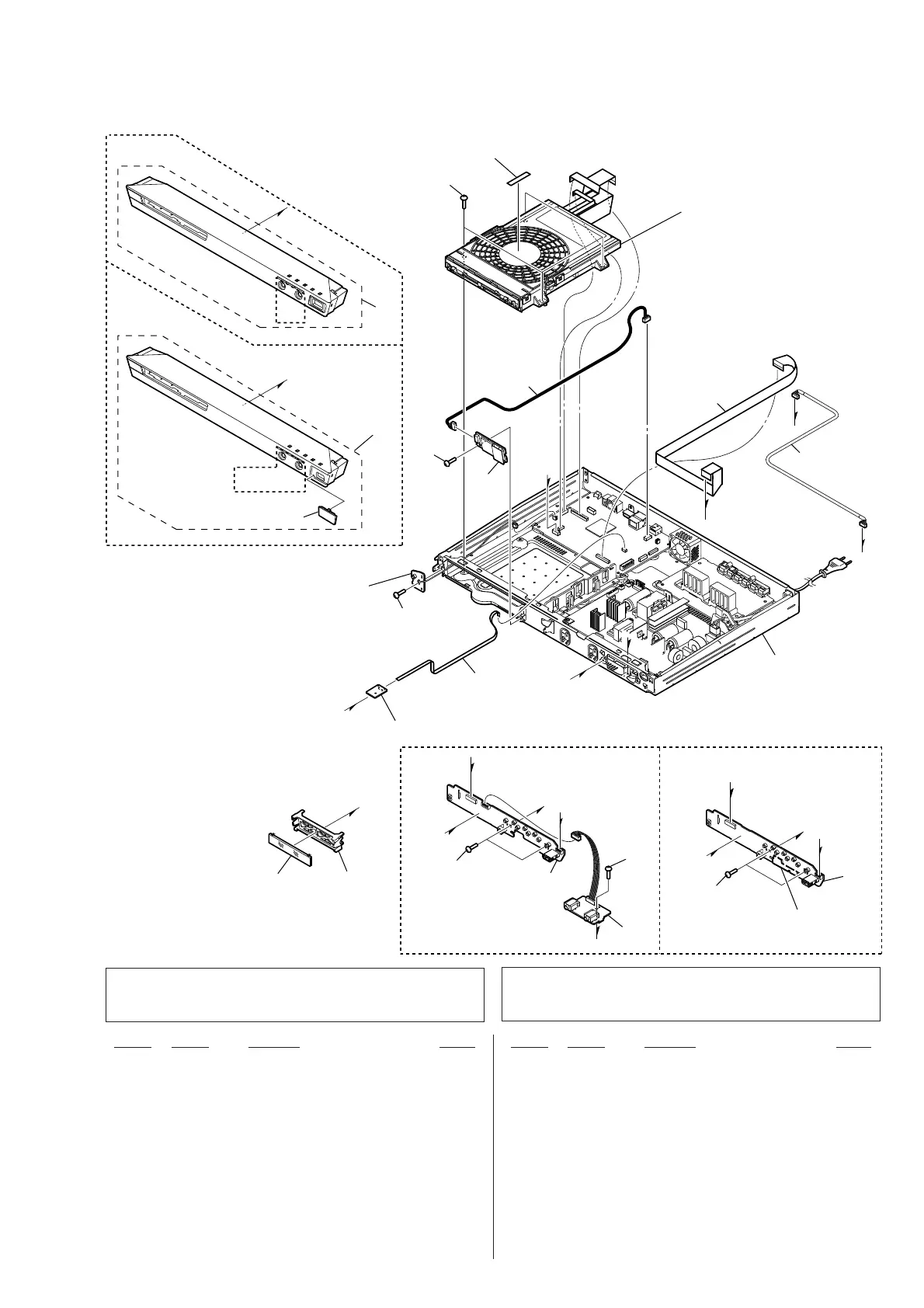

7-2. FRONT PANEL SECTION
51 X-2585-795-2 FRONT PANEL ASSY (EJ1) (E2100: EXCEPT SP)
51 X-2585-796-2 FRONT PANEL ASSY (EJ1K) (E2100: SP)
51 X-2585-797-2 FRONT PANEL ASSY (EJ2)
(E3100: EXCEPT SP, RU)
51 X-2585-798-2 FRONT PANEL ASSY (EJ2K) (E3100: SP, RU)
51 X-2585-799-2 FRONT PANEL ASSY (EJ4)
(E4100: EXCEPT SP, RU)
51 X-2585-800-2 FRONT PANEL ASSY (EJ4K) (E4100: SP, RU)
51 X-2585-801-2 FRONT PANEL ASSY (EJ8)
(E6100: EXCEPT SP, RU)
51 X-2585-802-2 FRONT PANEL ASSY (EJ8K) (E6100: SP, RU)
51 X-2589-165-1 FRONT PANEL ASSY (EJ2) MK2 (E3200)
52 1-846-378-51 WIRE (FLAT TYPE) (8 CORE)
53 8-989-470-05 RC-S801/A5 (WW)
54 3-077-331-71 +BV3 (3-CR)
55 1-968-687-12 HARNESS (USB)
56 1-458-601-11 CARD, WLAN/BT COMBO
57 1-846-376-61 WIRE (FLAT TYPE) (21 CORE) (SP, RU)
57 1-846-377-61 WIRE (FLAT TYPE) (15 CORE) (EXCEPT SP, RU)
58 1-969-958-11 HARNESS (USB)
59 A-1901-384-A PANEL BOARD, COMPLETE (EXCEPT SP, RU)
59 A-1901-496-A PANEL BOARD, COMPLETE (SP, RU)
60 A-1901-498-A KARAOKE BOARD, COMPLETE (SP, RU)
ND01 1-483-460-11 VACUUM FLUORESCENT DISPLAY
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note 1: When replacing the WLAN/BT COMBO card, refer to
“CHECKING METHOD OF NETWORK OPERATION”
(page 11).
Note 2: Wires (fl at type) for service is all straight.
Please bend it referring go “HOW TO BEND FFC” on
page 14 when you install it in the unit.
G
55
56
54
57
58
54
52
53
54
54
54
60
59
59
C
C
not supplied
(POWER KEY board)
ND01
B
B
B
(E2100)
(E3100/E4100/E6100)
BD drive section
(BPX-7)
chassis bottom section
54
not supplied
not supplied
(SP)
51
51
(SP, RU)
not supplied
not supplied
(NON-KARAOKE board)
(SP, RU ) (EXCEPT SP, RU)
G
F
F
H
H
H
F
D
D
E
E
E
D
Ver. 1.7
