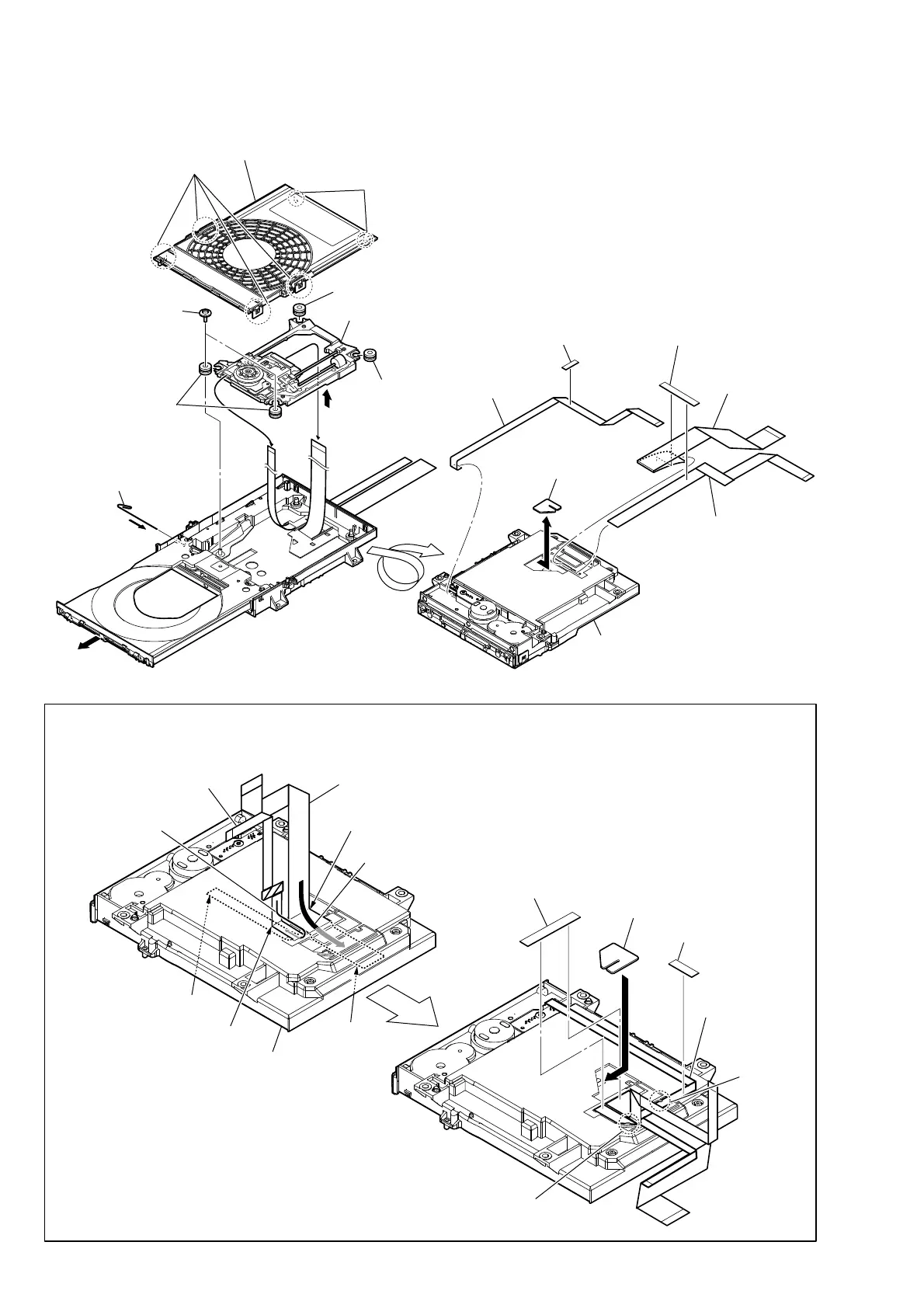

2-11. OPTICAL PICK-UP BLOCK (KEM480AAA), WIRE (FLAT TYPE)
6 two screws (S), float
0 insulator
4 Insert the thin
wire (clip etc.).
0 insulator
qa device, optical KEM480AAA
0 insulator
qs tape, non-halogene
qj
qk cover, drive
qg flexible flat cable
(45 core)
qh wire (flat type)
(9 core)
1 four claws
5
7
8
9
2 two claws
3 holder, chuck assy (T)
qd wire (flat type)
(5 core)
qf tape, FFC
– Bottom view –
loading assy (T)
8
9 cover, drive
1 flexible flat cable (45 core)
6 wire (flat type)
(5 core)
Fold
Fold
2 Through the hole
3 wire (flat type) (9 core)
4 Through the hole
terminal face
terminal face
loading assy (T)
Under the guide
(Fold area)
Under the
guide
,QVWDOODWLRQRIIOH[LEOHIODWFDEOHFRUHZLUHIODWW\SHFRUHDQGZLUHIODWW\SHFRUH
Note:
This illustration sees the loading assy (T) from bottom side.
5 tape, FFC
7 tape, non-halogene
