Sony HBD-E4100 - 7 Exploded Views; Case Section

76
HBD-E2100/E3100/E3200/E4100/E6100
A
A
4
3
not supplied
not supplied
1
2
1
front panel section
SECTION 7
EXPLODED VIEWS
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
 
Parts Color Cabinet’s Color
• Abbreviation
AR : Argentina model
AUS : Australian model
CH : Chinese model
CND : Canadian model
E3 : 240 V AC area in E model
E12 : 220 – 240 V AC area in E model
E32 : 110 – 240 V AC area in E model
E51 : Chilean and Peruvian models
EA : Saudi Arabia model
MX6 : Latin-American model
PX : PX model
RU : Russian model
SAF : South African model
SP : Singapore model
TH : Thai model
TW : Taiwan model
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce por-
tant le numéro spécifi é.

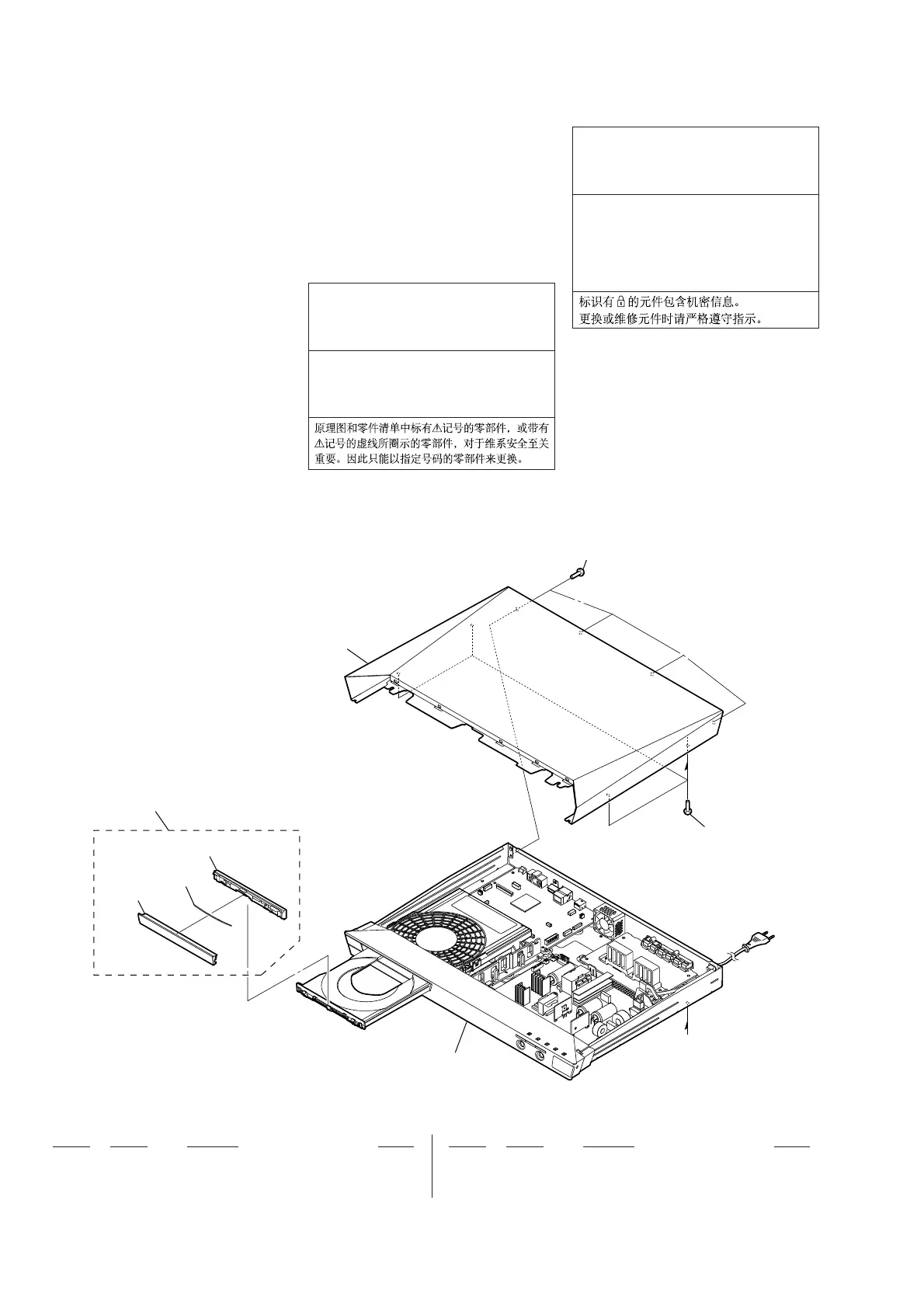

7-1. CASE SECTION
1 3-077-331-71 +BV3 (3-CR)
2 4-438-897-02 CASE (US)
2 4-438-897-12 CASE (EXCEPT US)
3 X-2585-804-1 PANEL LOADING ASSY
4 4-295-431-01 SPRING, LOADING
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
The components identifi ed by mark 9 con-
tain confi dential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
Les composants identifi és par la marque
9 contiennent des informations confi den-
tielles.
Suivre scrupuleusement les instructions
chaque fois qu’un composant est remplacé
et / ou réparé.
Ver. 1.7
