78
HBD-E2100/E3100/E3200/E4100/E6100
Note: Wires (fl at type) for service is all straight.
Please bend it referring go “HOW TO BEND FFC” on page
14 when you install it in the unit.
9 102 A-1901-764-A MB1002 BOARD, COMPLETE (for SERVICE)
(E3100: SP)
9 102 A-1901-794-A MB1002 BOARD, COMPLETE (for SERVICE)
(E3100: TH)
9 102 A-1901-800-A MB1002 BOARD, COMPLETE (for SERVICE)
(E3100: E32)
9 102 A-1902-052-A MB1002 BOARD, COMPLETE (for SERVICE)
(E4100: CND)
9 102 A-1902-058-A MB1002 BOARD, COMPLETE (for SERVICE)
(E4100: AEP)
9 102 A-1902-064-A MB1002 BOARD, COMPLETE (for SERVICE)
(E4100: UK)
9 102 A-1902-110-A MB1002 BOARD, COMPLETE (for SERVICE)
(E4100: RU)
9 102 A-1902-120-A MB1002 BOARD, COMPLETE (for SERVICE)
(E4100: E12)
9 102 A-1902-140-A MB1002 BOARD, COMPLETE (for SERVICE)
(E4100: E3)
9 102 A-1902-170-A MB1002 BOARD, COMPLETE (for SERVICE)
(E4100: EA)
9 102 A-1902-180-A MB1002 BOARD, COMPLETE (for SERVICE)
(E4100: SP)
9 102 A-1902-234-A MB1002 BOARD, COMPLETE (for SERVICE)
(E4100: CH)
9 102 A-1902-240-A MB1002 BOARD, COMPLETE (for SERVICE)
(E4100: TH)
9 102 A-1902-248-A MB1002 BOARD, COMPLETE (for SERVICE)
(E4100: TW)
9 102 A-1902-254-A MB1002 BOARD, COMPLETE (for SERVICE)
(E4100: E51, MX6)

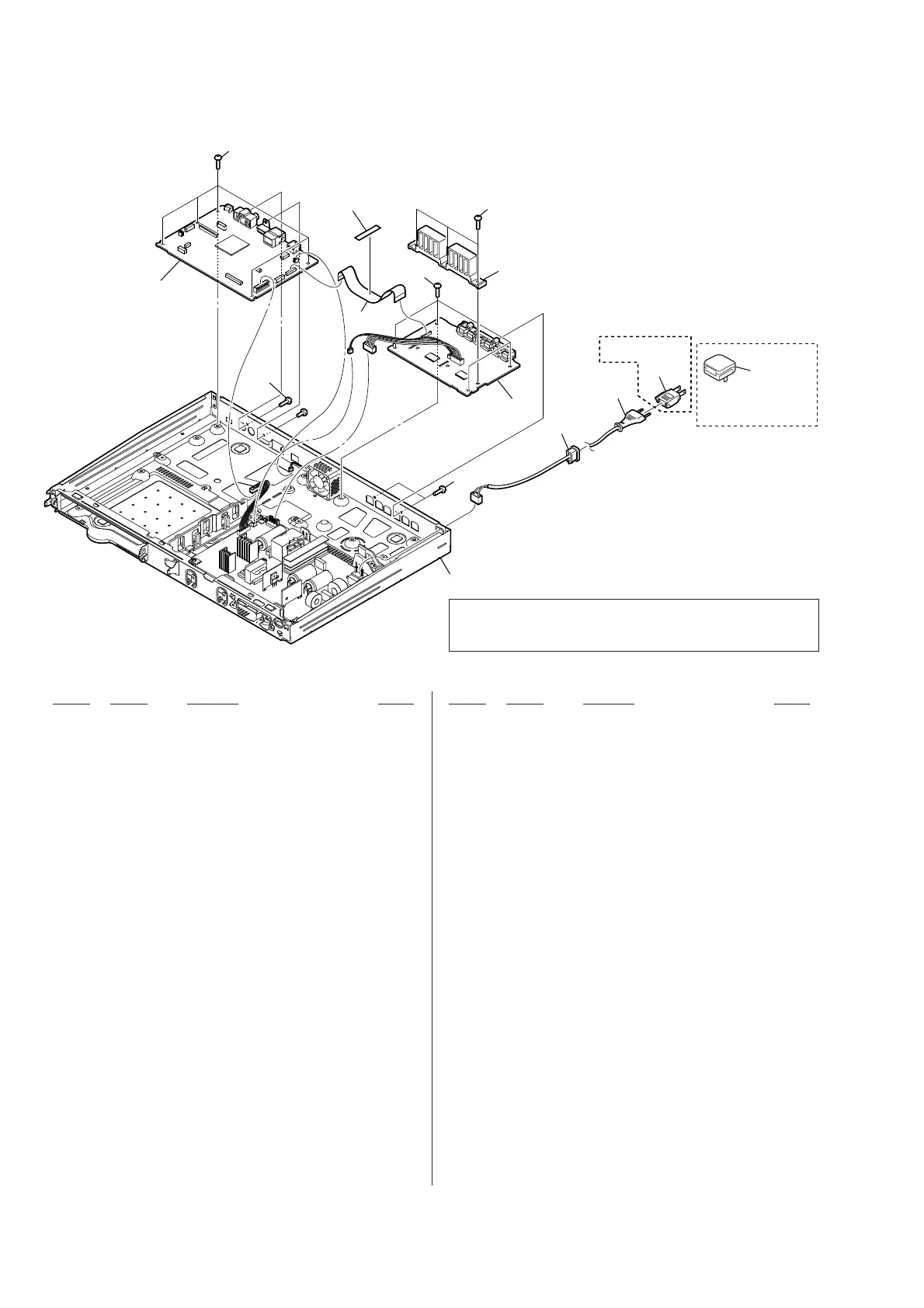

7-3. CHASSIS BOTTOM SECTION
101 3-077-331-71 +BV3 (3-CR)
9 102 A-1901-414-A MB1002 BOARD, COMPLETE (for SERVICE)
(E2100: US)
9 102 A-1901-461-A MB1002 BOARD, COMPLETE (for SERVICE)
(E2100: CND)
9 102 A-1901-480-A MB1002 BOARD, COMPLETE (for SERVICE)
(E2100: AEP)
9 102 A-1901-487-A MB1002 BOARD, COMPLETE (for SERVICE)
(E2100: UK)
9 102 A-1901-506-A MB1002 BOARD, COMPLETE (for SERVICE)
(E2100: SAF)
9 102 A-1901-513-A MB1002 BOARD, COMPLETE (for SERVICE)
(E2100: SP)
9 102 A-1901-526-A MB1002 BOARD, COMPLETE (for SERVICE)
(E2100: AUS)
9 102 A-1901-532-A MB1002 BOARD, COMPLETE (for SERVICE)
(E2100: TW)
9 102 A-1901-538-A MB1002 BOARD, COMPLETE (for SERVICE)
(E2100: E51, MX6)
9 102 A-1901-565-A MB1002 BOARD, COMPLETE (for SERVICE)
(E3100: US)
9 102 A-1901-575-A MB1002 BOARD, COMPLETE (for SERVICE)
(E3100: CND)
9 102 A-1901-651-A MB1002 BOARD, COMPLETE (for SERVICE)
(E3100: E3)
9 102 A-1901-657-A MB1002 BOARD, COMPLETE (for SERVICE)
(E3100: SAF)
9 102 A-1901-689-A MB1002 BOARD, COMPLETE (for SERVICE)
(E3100: EA)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101
101
#1
102
103
105
104
101
101
101
not supplied
chassis section
106
107
108
(PX, MX6, E32)
(E2100: SP for
Hong Kong model)
109
Ver. 1.7
– Continued on next page –
