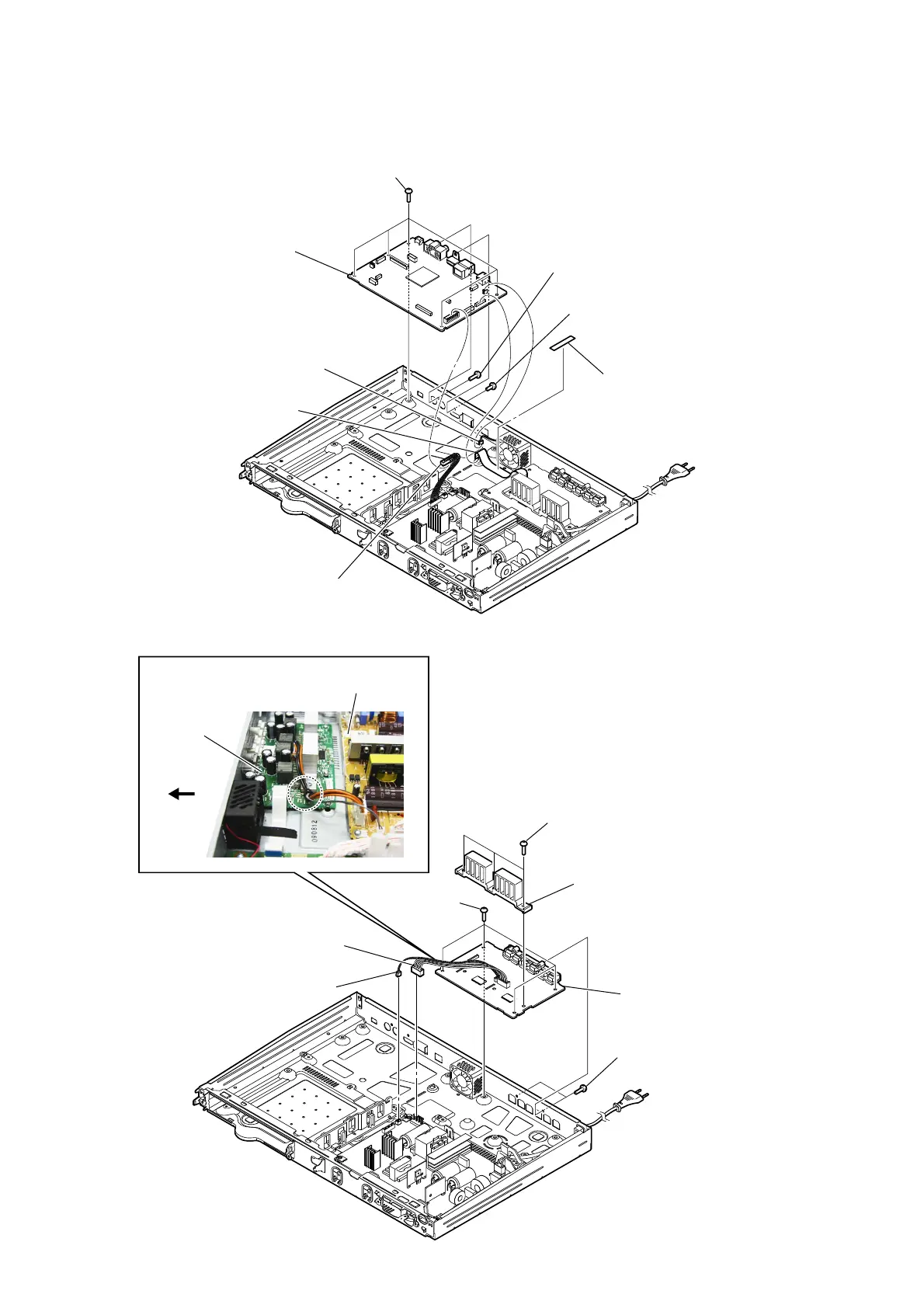

Sony HBD-E4100 - MB1002 Board; AMP Board

HBD-E2100/E3100/E3200/E4100/E6100
18
rear side
1 CN101 (4P)
2 CN4 (2P)
3 four screws
(+BV3 (3-CR))
5 heat sink (AMP 5.1CH)
4 three screws
(+BV3 (3-CR))
6 two screws
(+BV3 (3-CR))
7 AMP board
switching regulator (SWR1)
:LUHVHWWLQJ
AMP board
1 CN201 (2P)
2 tape
3 wire (flat type)
(24 core) (CN707)
4 CN202 (8P)
5 five screws
(+BV3 (3-CR))
6 one screw
(+BV3 (3-CR))
8 MB1002 board
7 one screw
(+B 3 u5)
2-8. MB1002 BOARD
2-9. AMP BOARD
