Sony HBD-E4100 - Front Panel Assy; BD Drive (BPX-7)

HBD-E2100/E3100/E3200/E4100/E6100
16
3 three claws
3 three claws
(SP)
2 four claws
4 front panel assy
1 wire (flat type) (8 core)
(CN806)
2 four claws
4 front panel assy
:LUHVHWWLQJ
switching regulator (SWR1)
MB1002 board
front side
6358
(E3100/E4100/E6100)(E2100)

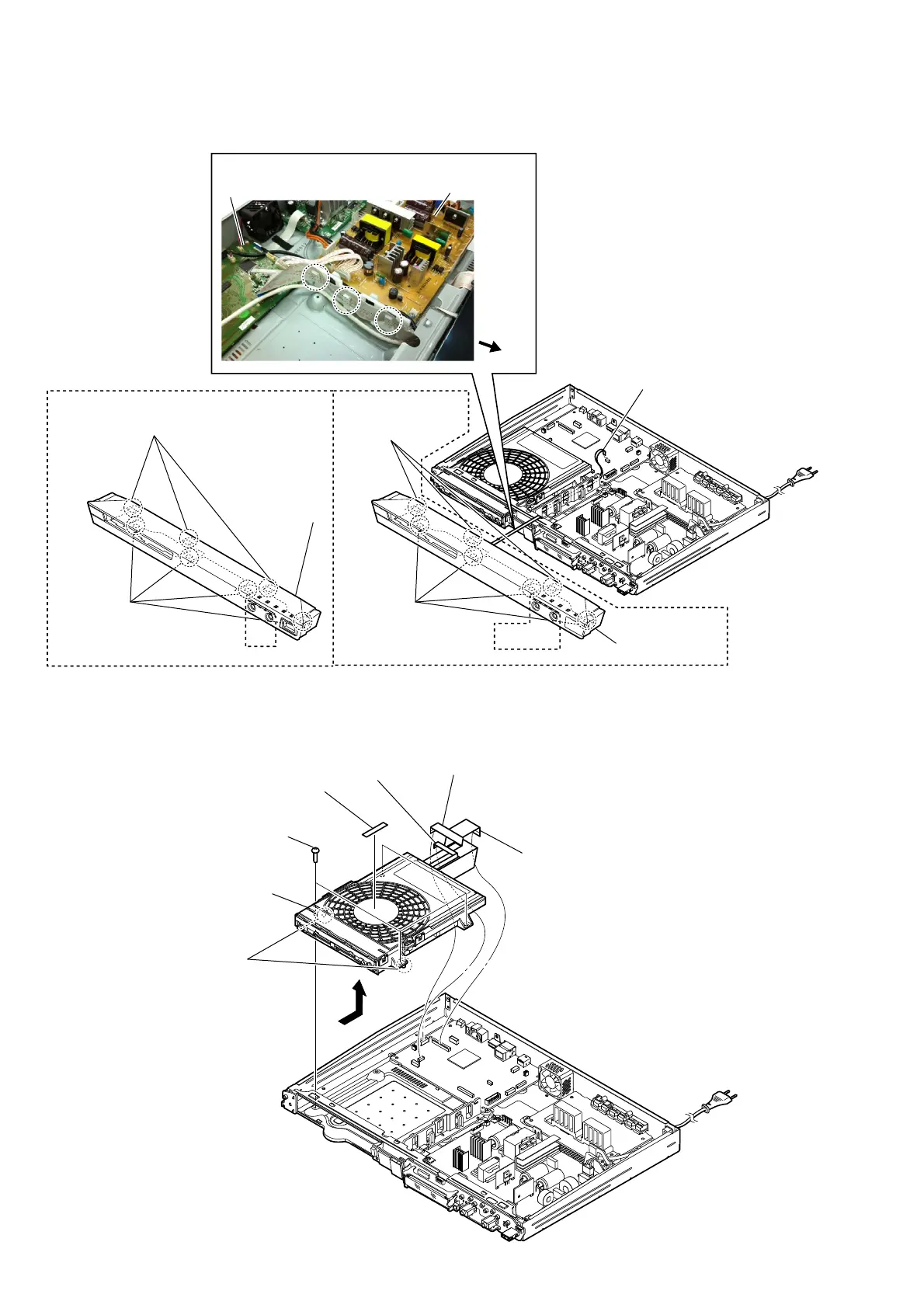

2-5. FRONT PANEL ASSY
• Abbreviation
RU : Russian model
SP : Singapore model
2-6. BD DRIVE (BPX-7)
4 four screws
(+BV3 (3-CR))
8 BD drive BPX-7
7 sheet, sound
5 boss
6
1 flexible flat cable (45 core) (CN501)
2 wire (flat type)
(9 core) (CN660)
3 wire (flat type)
(5 core) (CN670)
Note:
When you install the BD
drive (BPX-7), please match
the position of the boss two
places.
Ver. 1.5
