Sony HBD-E4100 - Case; Panel Loading Assy

HBD-E2100/E3100/E3200/E4100/E6100
15

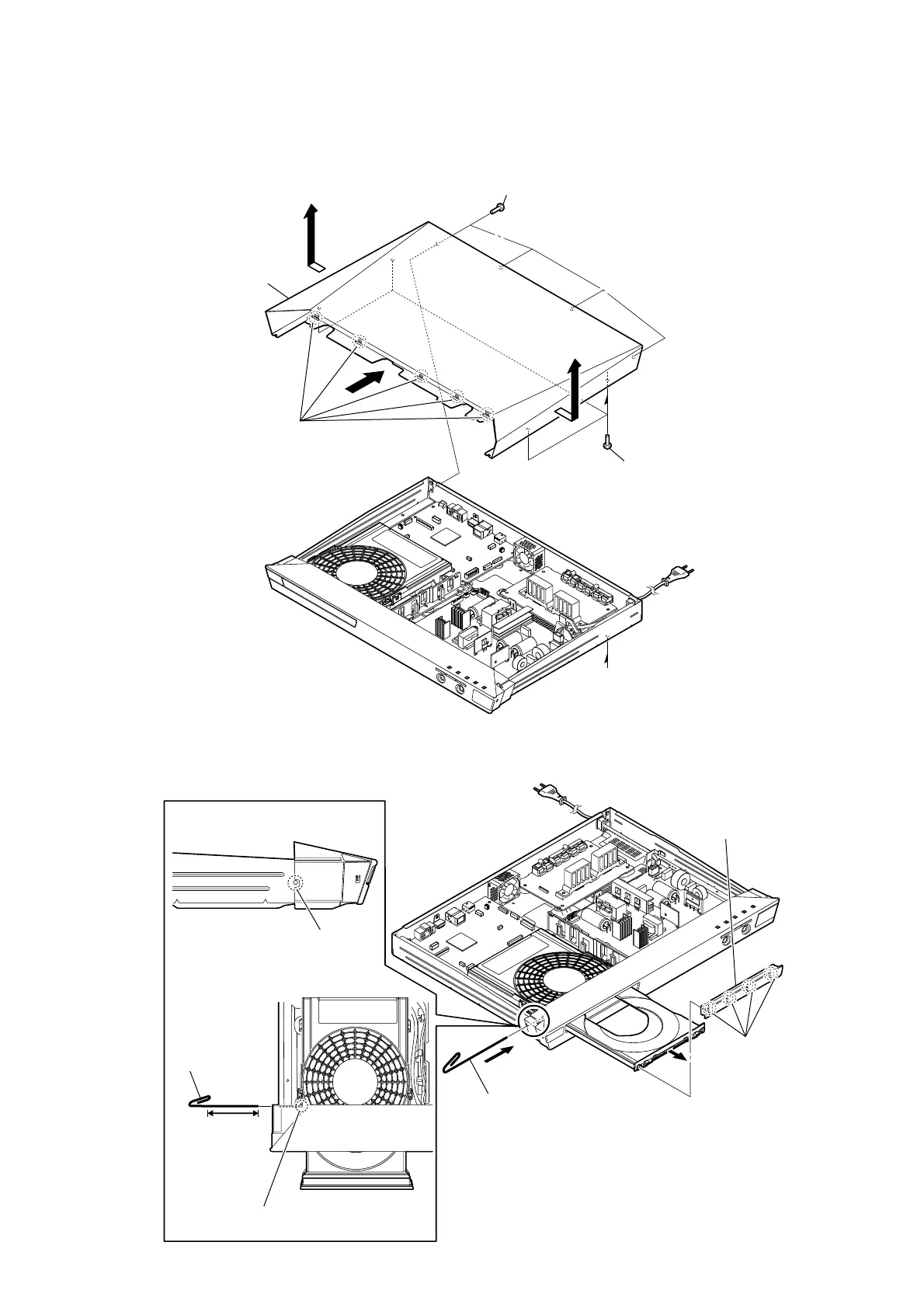

2-4. PANEL LOADING ASSY
Note: Follow the disassembly procedure in the numerical order given.
2-3. CASE
1 four screws (+BV3 (3-CR))
7 case
2 four screws (+BV3 (3-CR))
3 five claws
A
A
5
4
6
1 Insert the clip etc.
tray
BD drive
Insert the clip etc.
processed to the
length of 8 cm or
more in the hole
on the side of the
chassis and push.
8 cm or more
hole
– Side view –
– Top view –
Note:
Push after it inserts it in this hole well.
3 four claws
4 panel loading assy
2
Ver. 1.5
