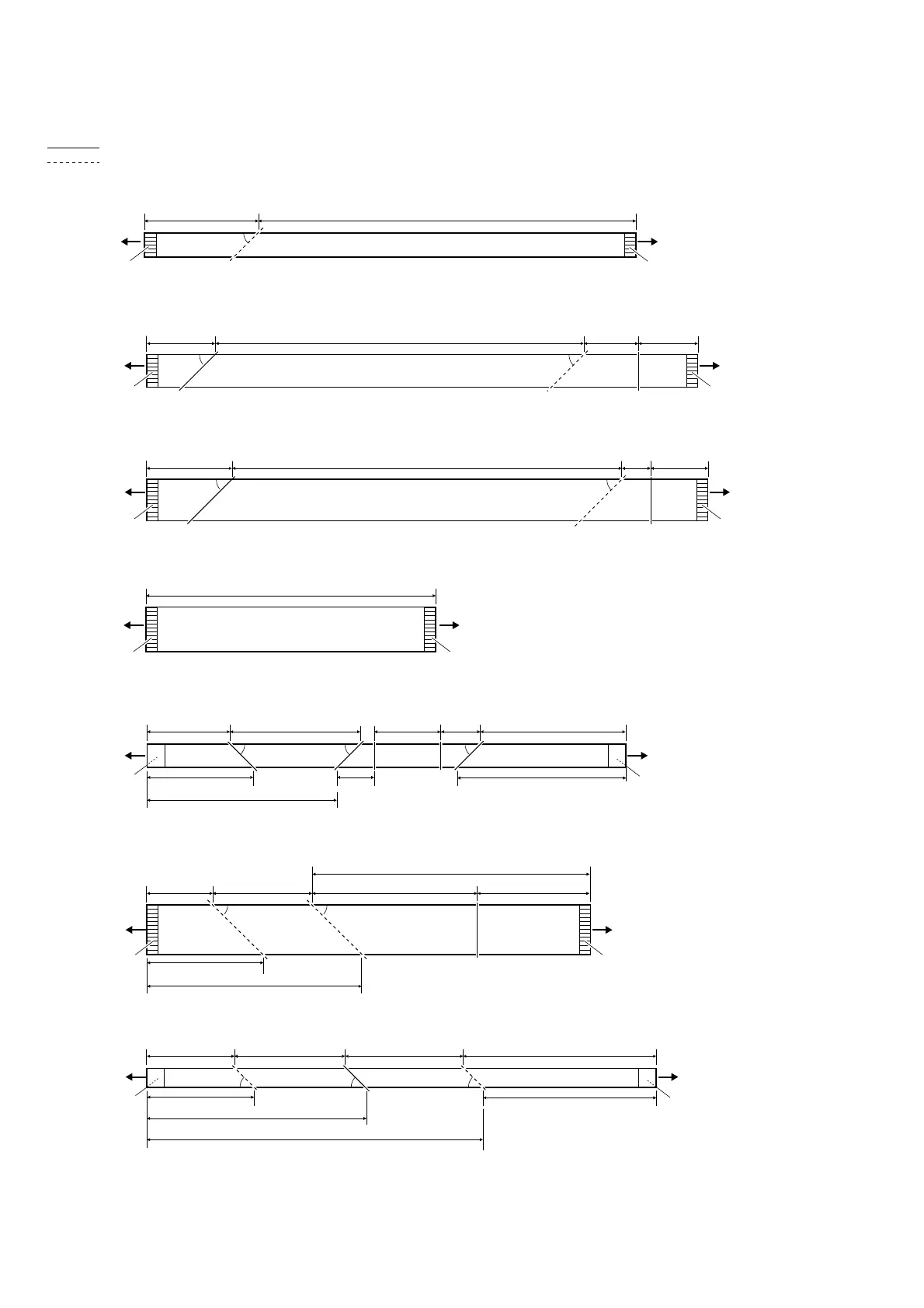

2-2. HOW TO BEND FFC
: Mountain fold
: Valley fold
wire (flat type) (9 core), length 252 mm (Ref. No. 206)
78 mm 21 mm 12 mm 110 mm
29 mm
MB1002 board
(CN660)
The lower side
is contact side.
The lower side
is contact side.
39 mm 12 mm
97 mm
BD drive
(BPX-7)
120 mm
45º 45º45º
wire (flat type) (5 core), length 276 mm (Ref. No. 208)
58 mm 139 mm
33 mm 46 mm
MB1002 board
(CN670)
The lower side
is contact side.
The lower side
is contact side.
39 mm
85 mm
143 mm
45º 45º45º
BD drive
(BPX-7)
133 mm
wire (flat type) (15 core), length 300 mm (Ref. No. 57) (EXCEPT SP, RU)
MB1002 board
(CN805)
PANEL board
(CN02)
25 mm
45º 45º
18 mm 22 mm
235 mm
The upper side
is contact side.
The upper side
is contact side.
wire (flat type) (21 core), length 305 mm (Ref. No. 57) (SP, RU)
MB1002 board
(CN803)
PANEL board
(CN01)
30 mm
45º 45º
10 mm
20 mm
235 mm
The upper side
is contact side.
The upper side
is contact side.
The upper side
is contact side.
The upper side
is contact side.
wire (flat type) (8 core), length 260 mm (Ref. No. 52)
40 mm 220 mm
RC-S801/A
(WW)
MB1002
(CN806)
45º
wire (flat type) (24 core), length 105 mm (Ref. No. 105)
105 mm
MB1002 board
(CN707)
The upper side
is contact side.
AMP board
(CN3505)
The upper side
is contact side.
19 mm 49 mm 101 mm 62 mm
91 mm
45º
MB1002 board
(CN501)
The upper side
is contact side.
The upper side
is contact side.
BD drive
(BPX-7)
42 mm
163 mm
45º
flexible flat cable (45 core), length 231 mm (Ref. No. 207)
