Sony HBD-E4100 - POWER KEY Board, WLAN;BT COMBO Card, KARAOKE Board (SP, RU), PANEL Board

HBD-E2100/E3100/E3200/E4100/E6100
17
2 one screw
(+BV3 (3-CR))
3 POWER KEY board
1 CN804 (2P)
4 CN404 (5P)
5 one screw
(+BV3 (3-CR))
0 two screws
(+BV3 (3-CR))
qs one screw
(+BV3 (3-CR))
qa PANEL board
qd KARAOKE board
qf NON-KARAOKE board
6 card, WLAN/BT COMBO
8 CN03 (6P)
9 harness (USB) CN51 (5P)
7 wire (flat type) (21 core) (CN01)
(SP, RU)
wire (flat type) (15 core) (CN02)
(EXCEPT SP, RU)
G
G
D
F
F
F
D
E
E
E
D
(SP, RU)
(EXCEPT SP, RU)
:LUHVHWWLQJ
:LUHVHWWLQJ
:LUHVHWWLQJ
front side
front side
front side
switching regulator (SWR1)
switching regulator (SWR1)
switching regulator (SWR1)
MB1002 board
MB1002 board
MB1002 board
harness USB
0 two screws
(+BV3 (3-CR))
qa PANEL board

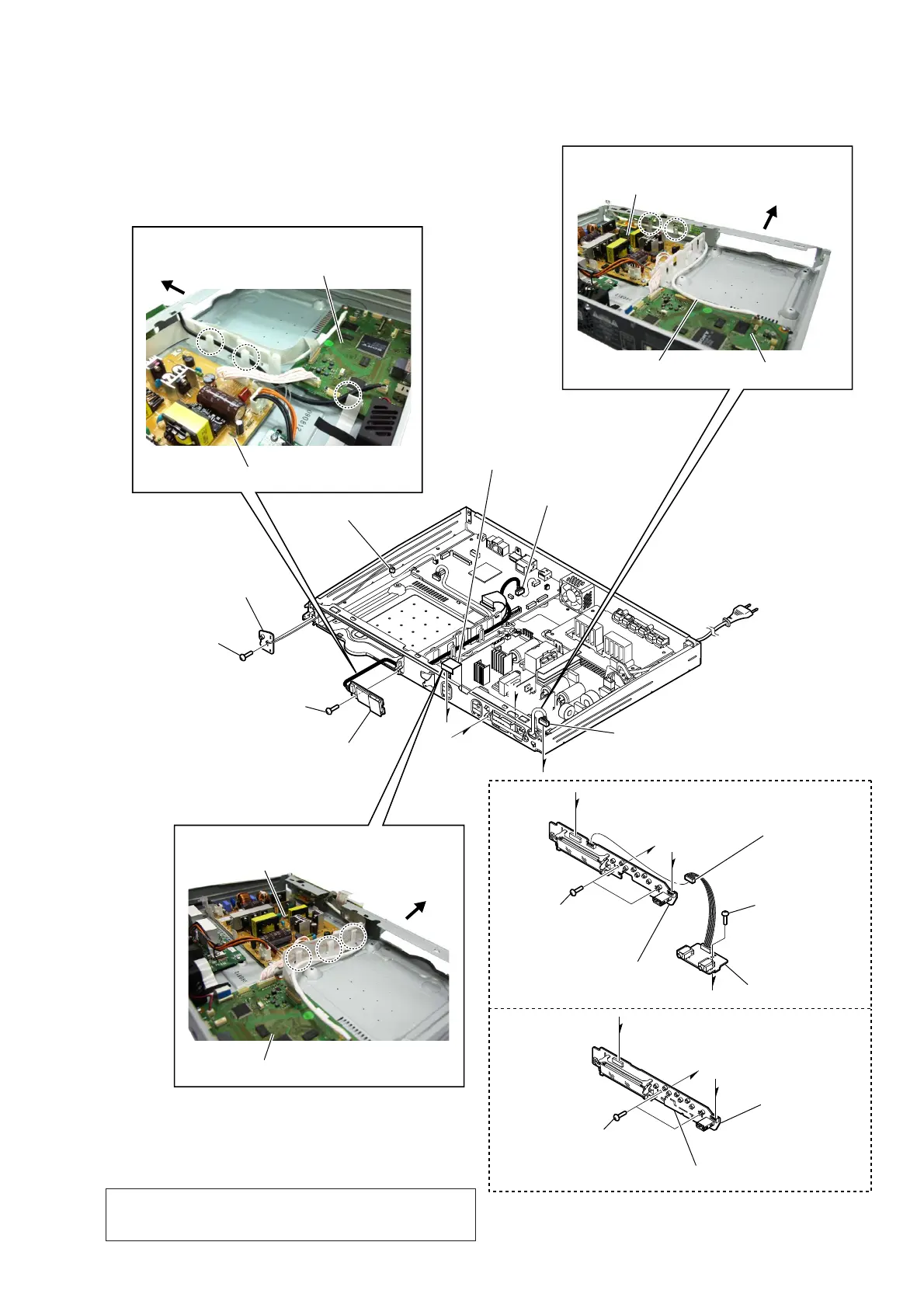

2-7. POWER KEY BOARD, WLAN/BT COMBO CARD, KARAOKE BOARD (SP, RU), PANEL BOARD
• Abbreviation
RU : Russian model
SP : Singapore model
Note: When replacing the WLAN/BT COMBO card, refer to
“CHECKING METHOD OF NETWORK OPERATION”
(page 11).
Ver. 1.5
