Sony HBD-E4100 - BD Drive Section (BPX-7)

81
HBD-E2100/E3100/E3200/E4100/E6100
Note: Wires (fl at type) for service is all straight.
Please bend it referring go “HOW TO BEND FFC” on page
14 when you install it in the unit.

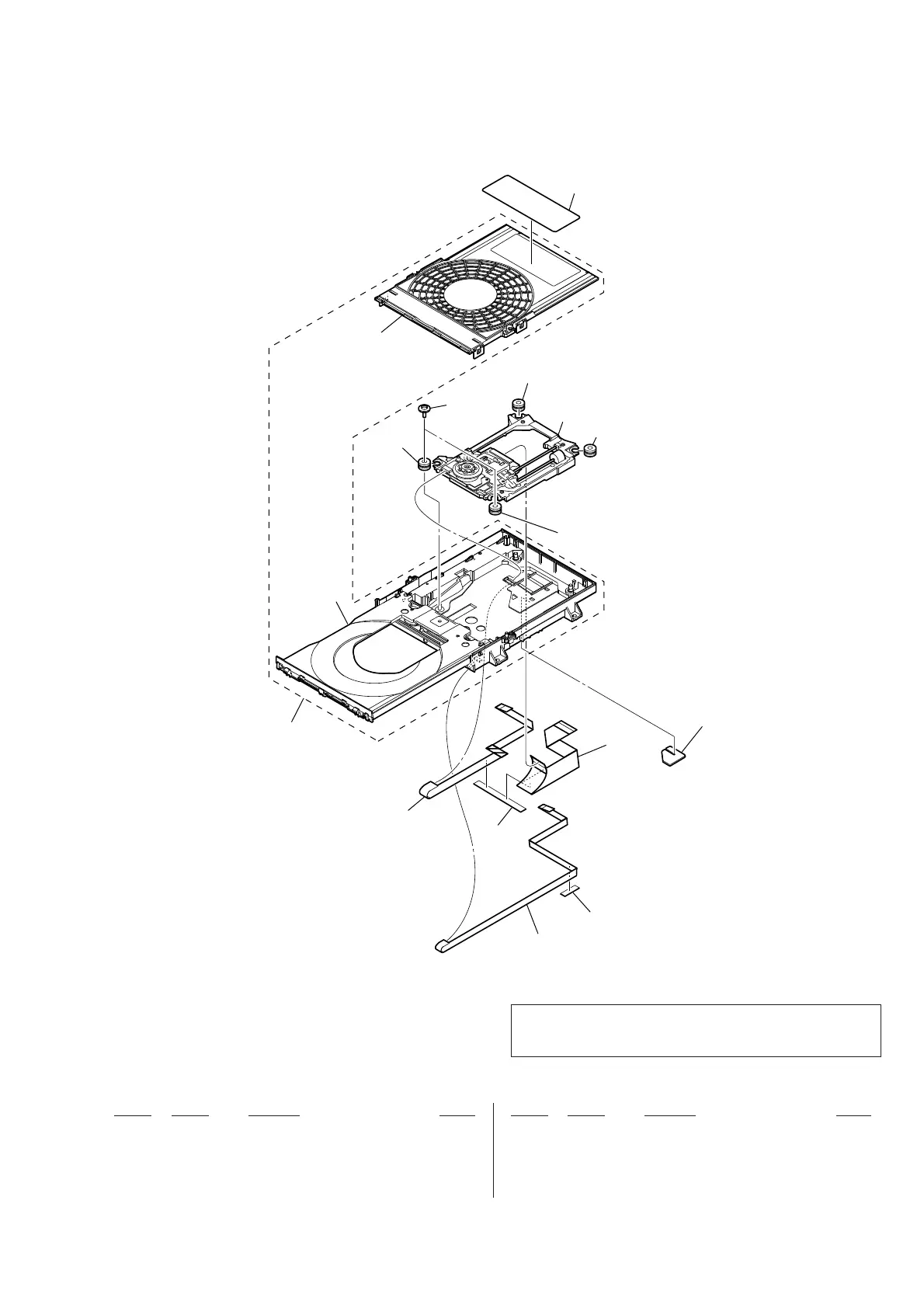

7-5. BD DRIVE SECTION (BPX-7)
201 4-295-426-01 COVER, DRIVE
202 A-1850-153-D LOADING FOR SERVICE (BPX-7)
203 2-345-115-01 SCREW (S), FLOAT
204 4-175-937-31 INSULATOR
0 205 8-820-452-07 DEVICE, OPTICAL KEM480AAA/C2RP2
206 1-846-349-61 WIRE (FLAT TYPE) (9 CORE)
207 1-846-347-11 FLEXIBLE FLAT CABLE (45 CORE)
208 1-846-348-61 WIRE (FLAT TYPE) (5 CORE)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
not supplied
202
201
not supplied
not
supplied
not supplied
206
207
208
203
205
204
204
204
204
not supplied
Ver. 1.5
