— 12 —
6
Four screws
(BVTP 2.6
×
8)
2
Four screws
(BVTP 2.6
×
8
)
5
Connector
(CN671)
4
Connector
(CN661)
1
Connector
(CN642)
7
CD lid assy
3
CD-B1 SW board
1
Connector
(CN612)
2
Four screws
(BVTP 2.6
×
8
)
6
Panel (B) sub assy
4
Panel (A) sub assy
5
Two claws
3
Two claws

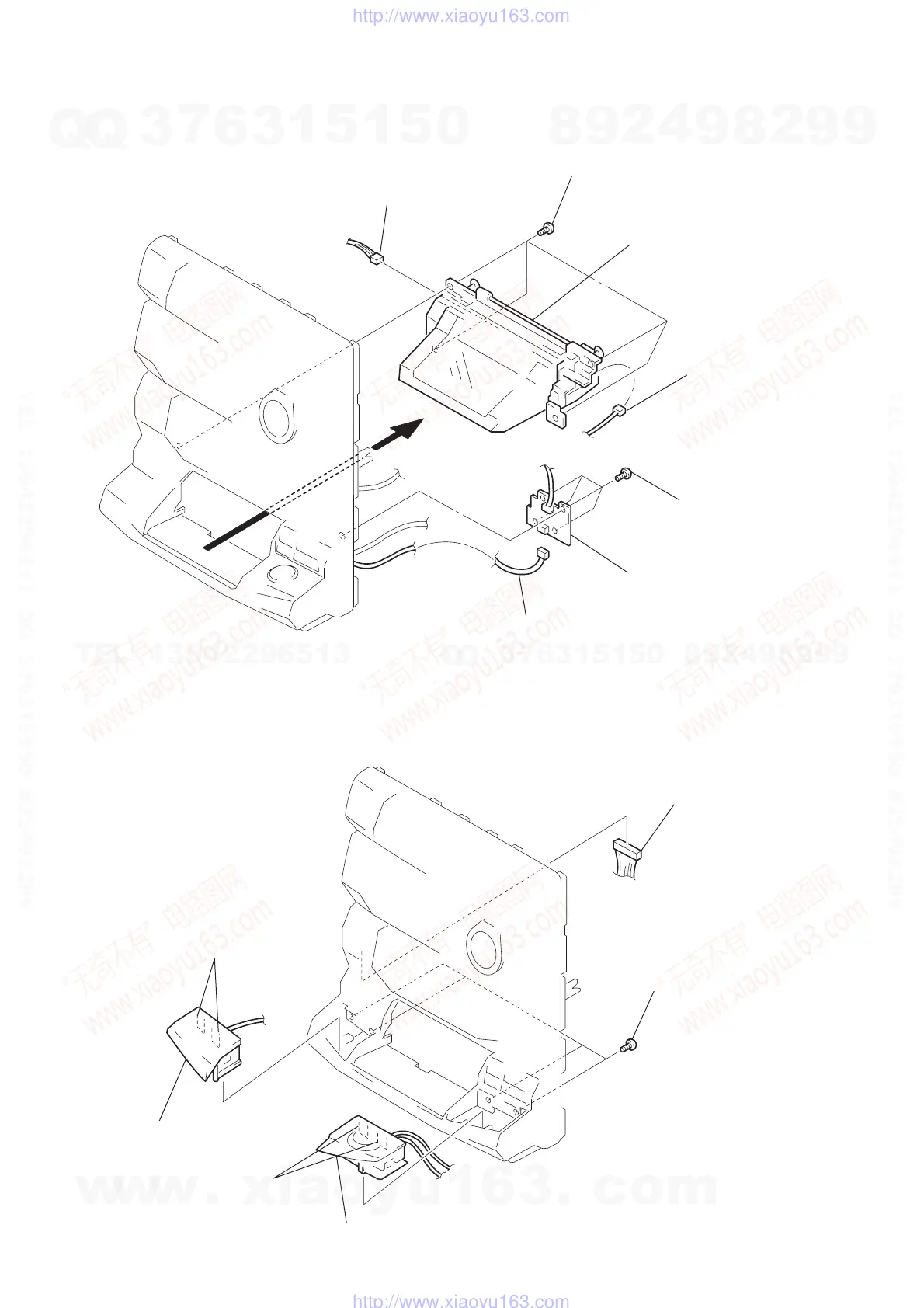

2-8. CD LID ASSY SECTION
2-9. PANEL (A) / (B) SUB ASSY
