SECTION 7
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• Abbreviation
AR : Argentine EE : East European
AUS : Australian MX : Mexican
CND : Canadian SAF : South African
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
— 87 —
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
! sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
2
1
1
#2
#2
#2
#3
#1
#1
#1
3
5
4
6
7
AUS, UK
XB44

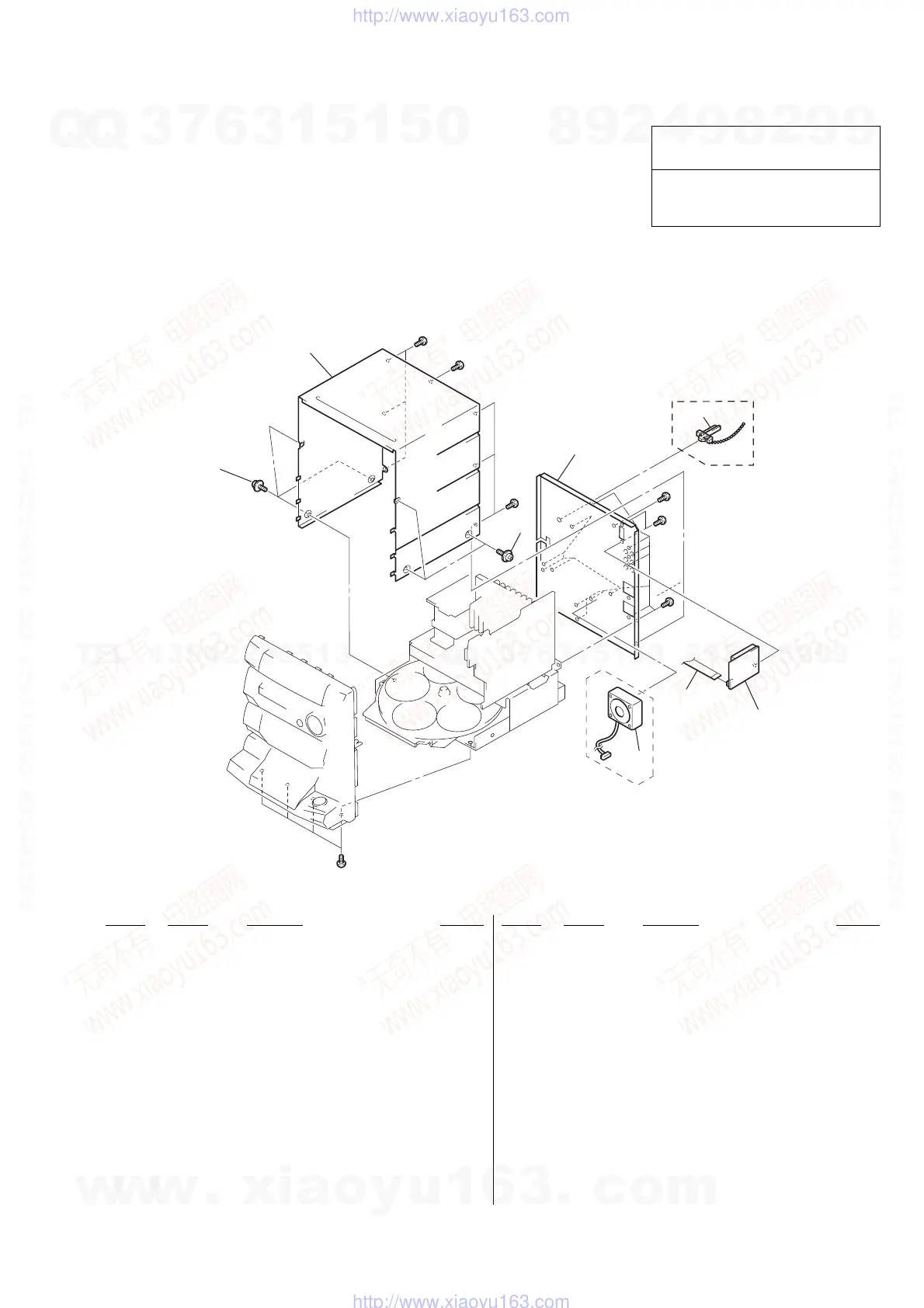

7-1. CASE, REAR PANEL SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1 3-363-099-01 SCREW (CASE 3 TP2)
* 2 4-987-052-72 CASE (G5500)
* 2 4-987-052-92 CASE (EXCEPT G5500)
* 3 4-996-410-01 PANEL, BACK (XB33: E, AR)
* 3 4-996-410-21 PANEL, BACK (XB33: MX)
* 3 4-996-410-31 PANEL, BACK (XB33: AUS)
* 3 4-996-410-41 PANEL, BACK (XB33: SAF)
* 3 4-996-411-01 PANEL, BACK (D390: US)
* 3 4-996-411-11 PANEL, BACK (D390: CND)
* 3 4-996-411-21 PANEL, BACK (XB50: AEP, UK)
* 3 4-996-411-31 PANEL, BACK (XB50: EE,CIS)
* 3 4-996-411-41 PANEL, BACK (G5500)
* 3 4-996-412-01 PANEL, BACK (XB44: E, AR)
* 3 4-996-412-21 PANEL, BACK (XB44: MX)
* 3 4-996-412-31 PANEL, BACK (XB44: AUS)
* 3 4-996-412-41 PANEL, BACK (XB44: SAF)
* 3 4-996-419-01 PANEL, BACK (D790: US)
* 3 4-996-419-11 PANEL, BACK (D790: CND)
* 3 4-996-419-21 PANEL, BACK (XB60: AEP, UK)
* 3 4-996-419-31 PANEL, BACK (XB60: EE, CIS)
4 4-956-370-12 BAND, PLUG FIXED (AUS, UK)
5 1-233-544-11 ENCAPSULATED COMPONENT
(D390/D790/G5500)
5 1-233-545-11 ENCAPSULATED COMPONENT (XB33/XB44)
* 5 A-4303-588-A TCB BOARD, COMPLETE (EE, CIS)
* 5 A-4303-590-A TCB BOARD, COMPLETE (AEP, UK)
6 1-769-974-11 WIRE (FLAT TYPE) (13 CORE)
(EXCEPT XB50/XB60)
6 1-773-006-11 WIRE (FLAT TYPE) (15 CORE) (XB50/XB60)
7 1-698-792-11 FAN, DC (XB44)
