Sony HCD-D790 - 6-7. SCHEMATIC DIAGRAM - TUNER SECTION (AEP, UK model); Tuner Section Schematic (AEP, UK models)

HCD-D390/D790/G5500/XB33/XB44/XB50/XB60
— 59 —
— 60 —

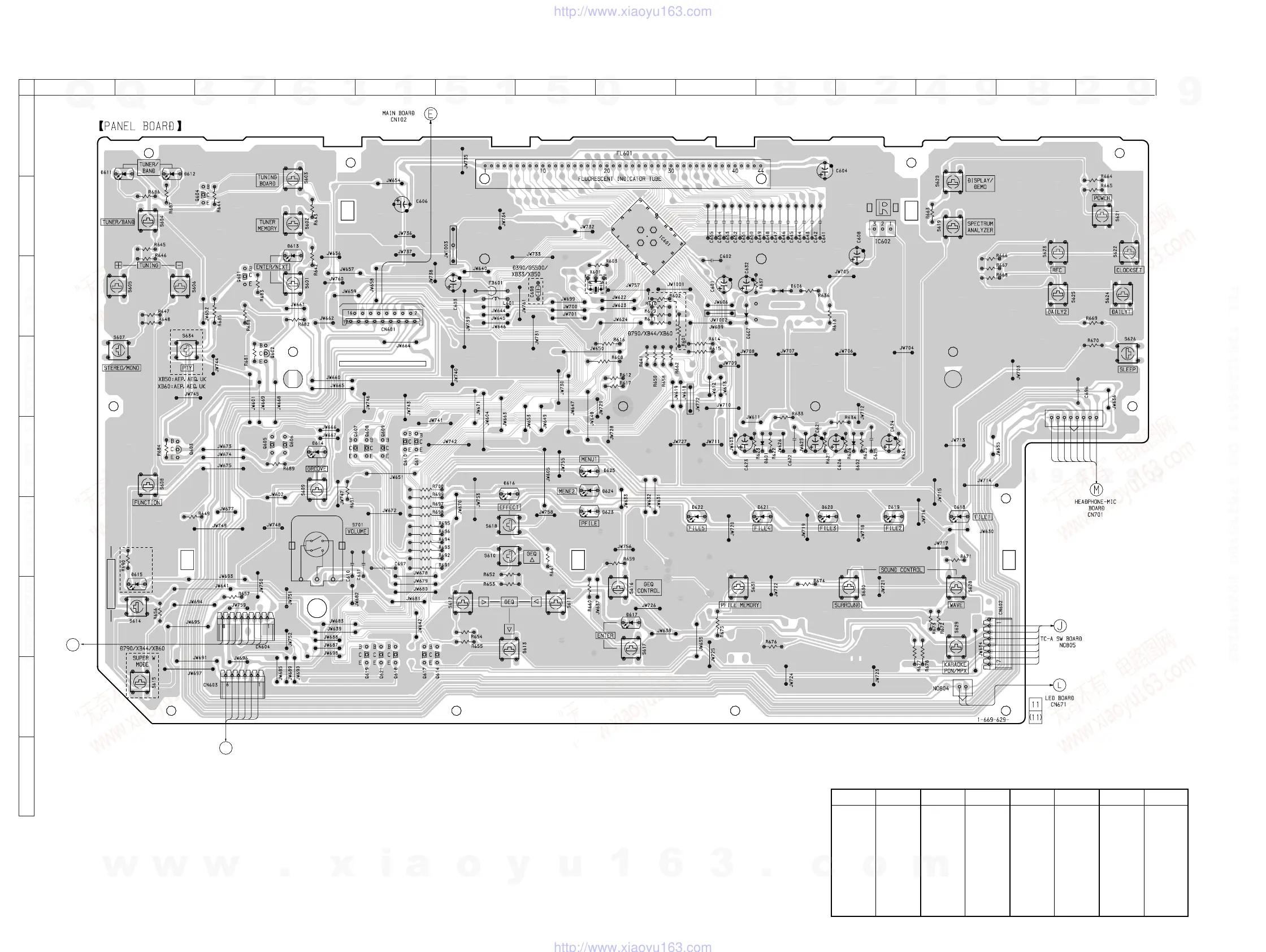

6-17. PRINTED WIRING BOARD – PANEL SECTION – • See page 25 for Circuit Boards Location.
N
TC-B SW BOARD
NO806
(Page 55)
K
CD-B1 SW
BOARD
NO811
(Page 55)
D790/XB44/XB60
SUPPER WOOFER
(Page 67)
NO801
(Page 56)
(Page 55)
(Page 56)
12
A
B
C
D
E
F
G
H
I
34567891011121314
16
Ref. No. Location
• Semiconductor Location
Ref. No. Location
D601 E-10
D602 E-11
D606 C-10
D607 C-9
D611 A-2
D612 A-2
D613 C-4
D614 E-4
D615 G-2
D616 E-6
D617 G-8
D618 F-12
D619 F-11
D620 F-10
D621 F-10
D622 F-9
D623 F-7
D624 E-7
D625 E-7
Ref. No. Location Ref. No. Location
IC601 B-8
IC602 B-11
Q601 B-8
Q602 D-3
Q603 E-2
Q604 B-3
Q605 E-3
Q606 E-4
Q607 E-4
Q608 E-5
Q609 E-5
Q610 E-5
Q611 E-5
Q614 G-5
Q617 G-5
Q618 G-5
Q619 G-5
Q621 G-5
