Sony HCD-D790 - SECTION 2 DISASSEMBLY; Disassembly Overview; 2-1. UPPER CASE Removal

— 8 —
SECTION 2
DISASSEMBLY

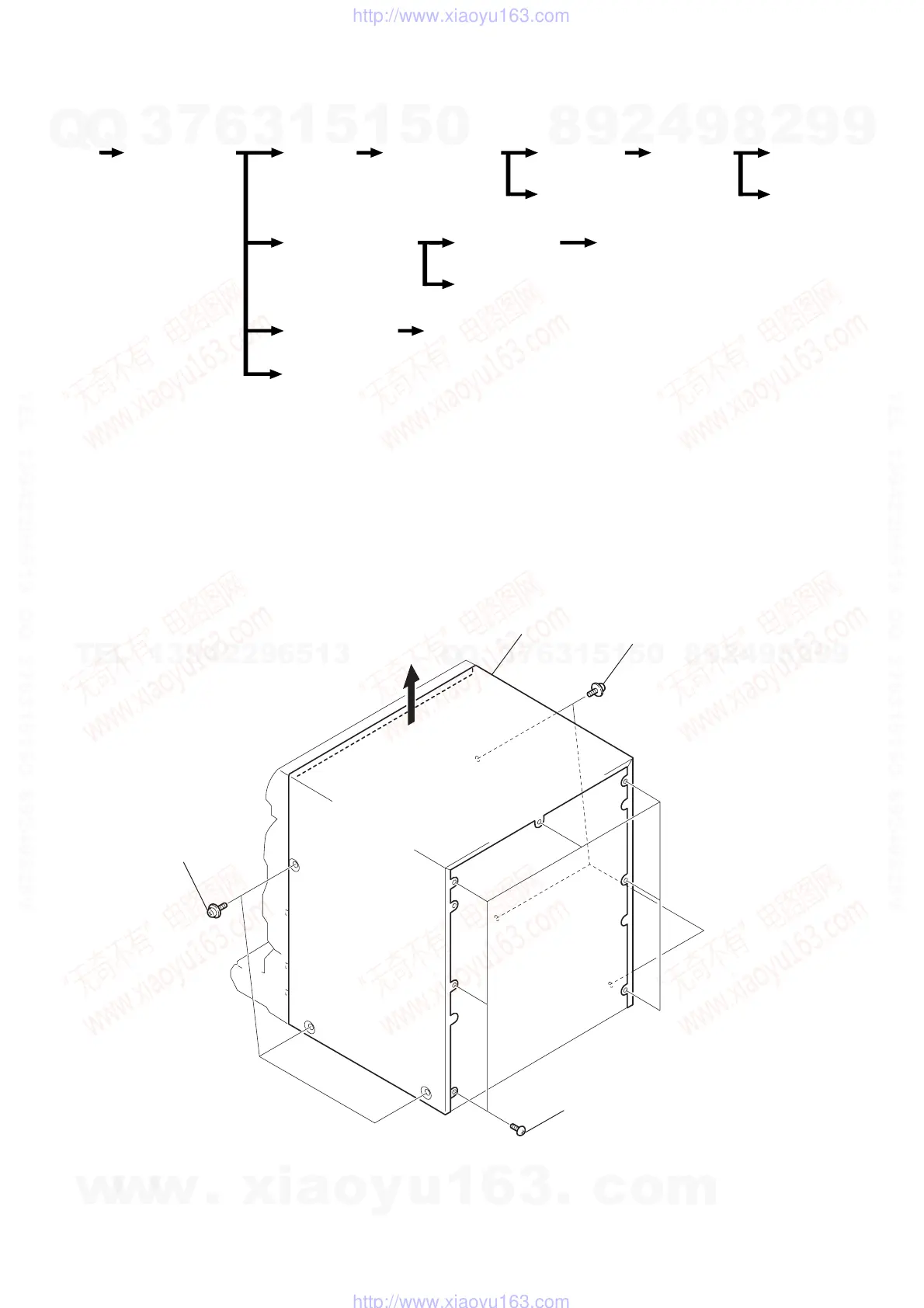

• This set can be disassembled in the order shown below.
2-1. UPPER CASE
Note: Follow the disassembly procedure in the numerical order given.
MAIN BOARD
(Page 9)
CD LID ASSY
SECTION
(Page 12)
TAPE MECHANISM
DECK SECTION
(Page 11)
MAIN
SECTION
(Page 10)
AUDIO BOARD
(Page 15)
CASSETTE
LID ASSY
(Page 11)
CD MECHANISM
DECK SECTION
(Page 10)
DISC TABLE
(Page 13)
BASE UNIT
(Page 13)
BD BOARD
(Page 14)
PANEL (A)/(B)
SUB ASSY
(Page 12)
CAPSTAN MOTOR
(Page 15)
OPTICAL
PICK-UP
(Page 14)
SLED
MOTOR
(Page 14)
FRONT PANEL
SECTION
(Page 9)
UPPER
CASE
(Page 8)
3 Upper case
1 Three screws
(case 3 point)
1 Three screws
(case 3 point)
2 Seven screws
(BVTT 3
× 6)
