— 21 —
TUNER SECTION
0dB=1µV
Note 1: As a front-end (FE1) is difficult to repair if faulty, replace
it with new one.
Note 2: No adjustment is needed due to a tuner pack for except
AEP, UK, East European, CIS models.
AM Tuned Level Adjustment
Note: FM Tuned Level adjustment should be performed after this
AM Tuned Level Adjustment.
Setting:
Band: MW
Procedure:
1. Set the output of SSG so that the input level of the set becomes
55 dB.
2. Tune the set to 999 kHz or 1,050 kHz.
3. Adjust RV41 to the point (moment) when the TUNED indicator
will change from going off to going on.
Adjustment Location: TCB board
FM Tuned Level Adjustment
Note: This adjustment should be performed after the AM Tuned
Level Adjustment.
Setting:
Band: FM
AM RF SSG

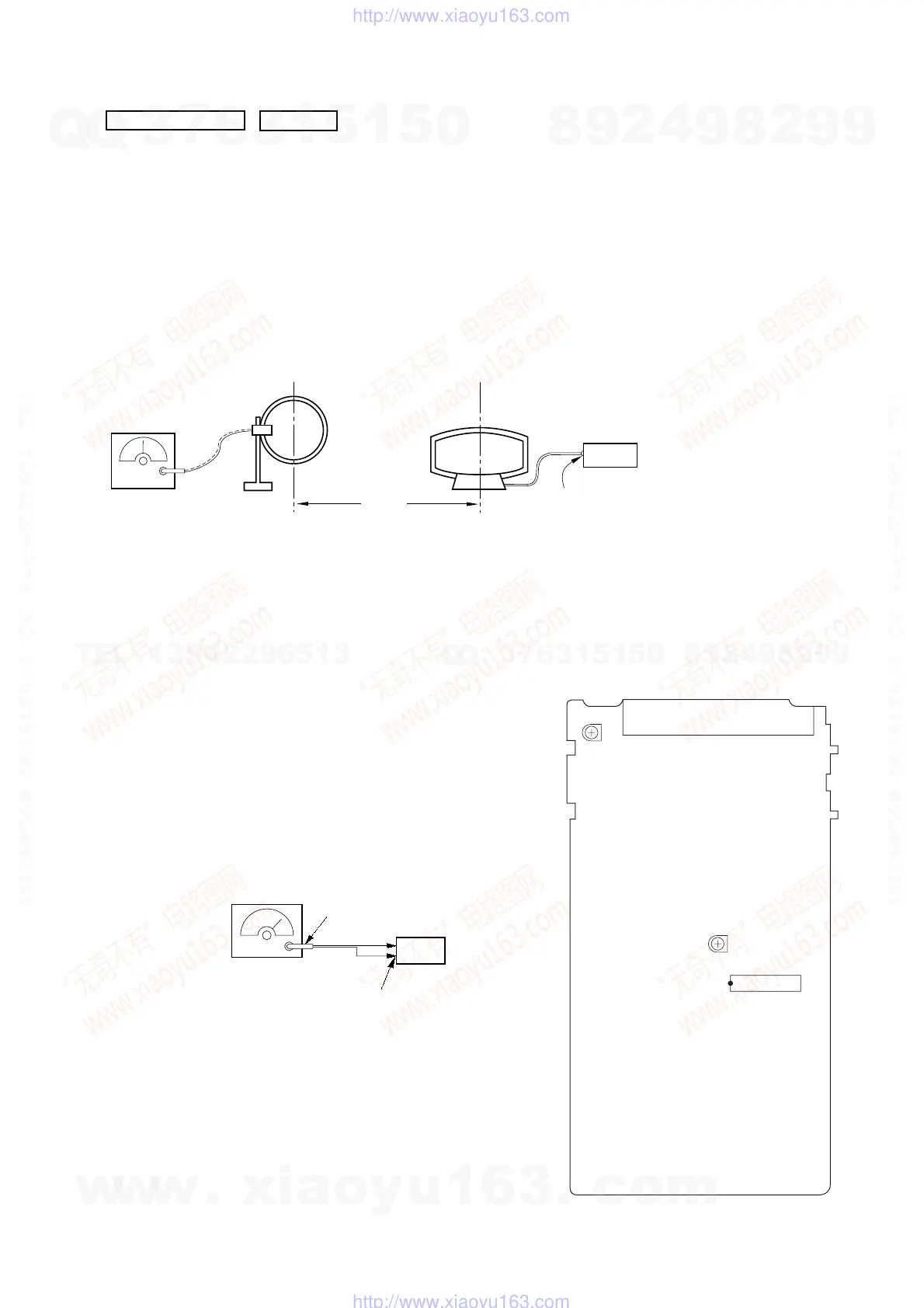

loop antenna
set
loop antenna
(Supplied accessories)
60 cm
AM ANTENNA
terminal (TM1)
30% amplitude
modulation by
400 Hz signal
Modulation: 999 kHz (at 9 kHz step)
1,050 kHz (at 10 kHz step)
Field strength dB (
µ
V/m) =SSG output level dB (
µ
V/m) –26 dB.
Carrier frequency : 98 MHz
Modulation : AUDIO 1 kH, 75 kHz
deviation (100%)
Output level: 25db (at 75
Ω
open)
FM ANTENNA
terminal (TM1)
75
Ω
coaxial
set
FM RF SSG
Procedure:
1. Supply a 25 dB 98 MHz signal from the ANTENNA terminal.
2. Tune the set to 98 MHz.
3. Adjust RV42 to the point (moment) when the TUNED indicator
will change from going off to going on.
RV41
AM Tuner Level
TM1
RV42
FM Tuned
Level
IC21
Adjustment Location: TCB board
