Sony HCD-D790 - Printed Wiring Board - Deck Section

HCD-D390/D790/G5500/XB33/XB44/XB50/XB60
— 49 — — 50 —

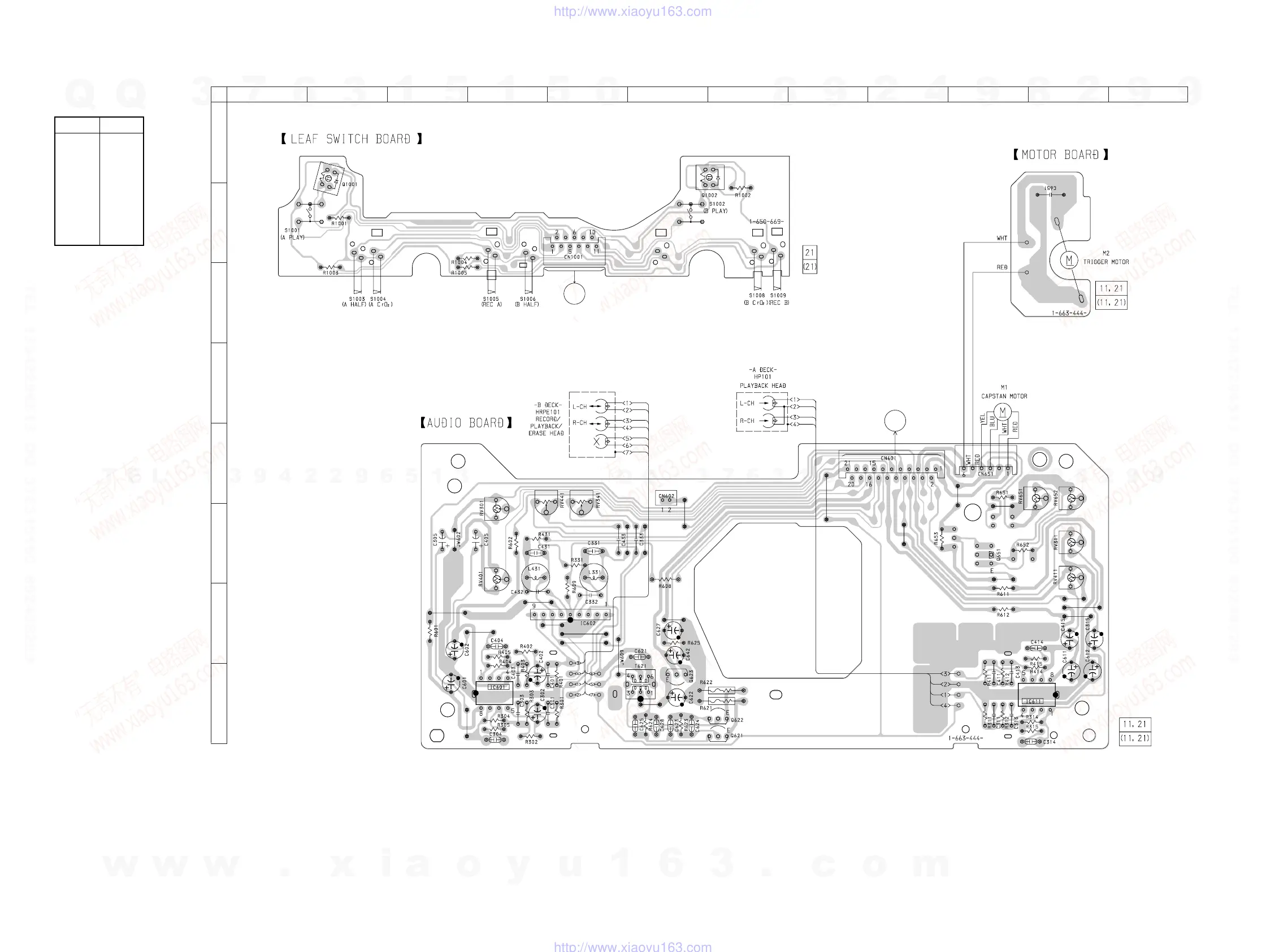

6-11. PRINTED WIRING BOARD – DECK SECTION – • See page 25 for Circuit Boards Location.
Ref. No. Location
IC601 H-4
IC602 G-5
IC611 H-11
Q621 H-7
Q622 H-7
Q623 H-6
Q651 F-10
Q1001 A-2
Q1002 A-7
• Semiconductor
Location
12
A
B
C
D
E
F
G
H
3456789101112
I
MAIN BOARD
CN206
(Page 67)
MAIN BOARD
CN205
(Page 67)
