Sony HCD-D790 - Disassembly Procedures - Panel and Main Boards; 2-2. FRONT PANEL SECTION Disassembly; 2-3. MAIN BOARD Access

— 9 —

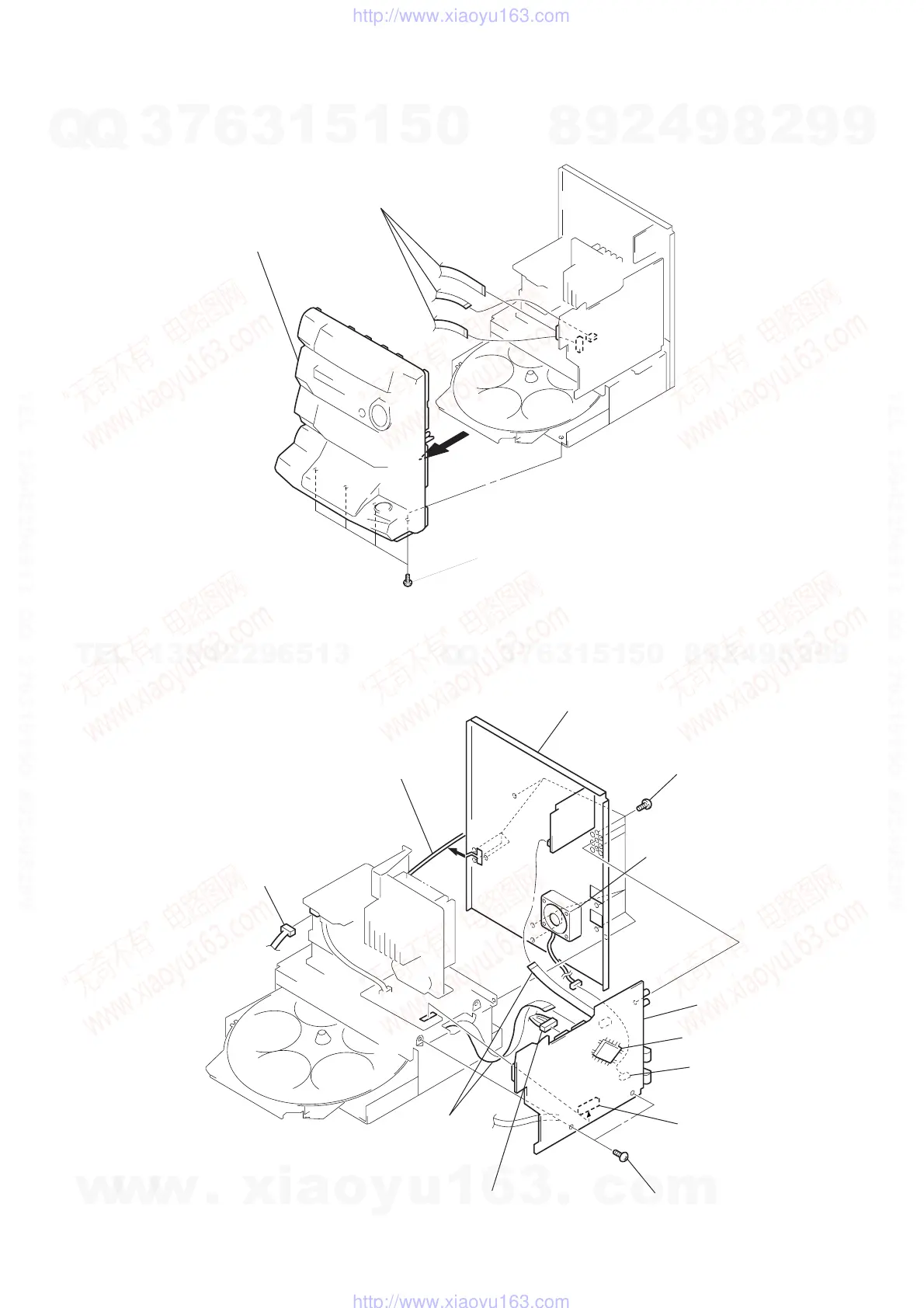

2-2. FRONT PANEL SECTION
2-3. MAIN BOARD
6 Back panel
5 Power cord
3 Connector
(CN901)
2 Connector
(CN203)
1 Two flat wires
(CN1,202)
7 Two screws
(BVTP 3
× 8)
4 Twelve screws
(BVTP 3
× 8)
Fan is for (XB44 only)
8 Connector
(CN101)
9 Connector
(CN105)
(XB44 only)
0 MAIN boar
d
IC201
1 Three flat wires
(CN102, 205, 206)
2 Four screws
(BVTP 3 x 8)
3 Front panel section
