Sony HCD-D790 - Disassembly Procedures - Main and CD Sections; 2-4. MAIN SECTION Disassembly; 2-5. CD MECHANISM DECK SECTION Disassembly

— 10 —

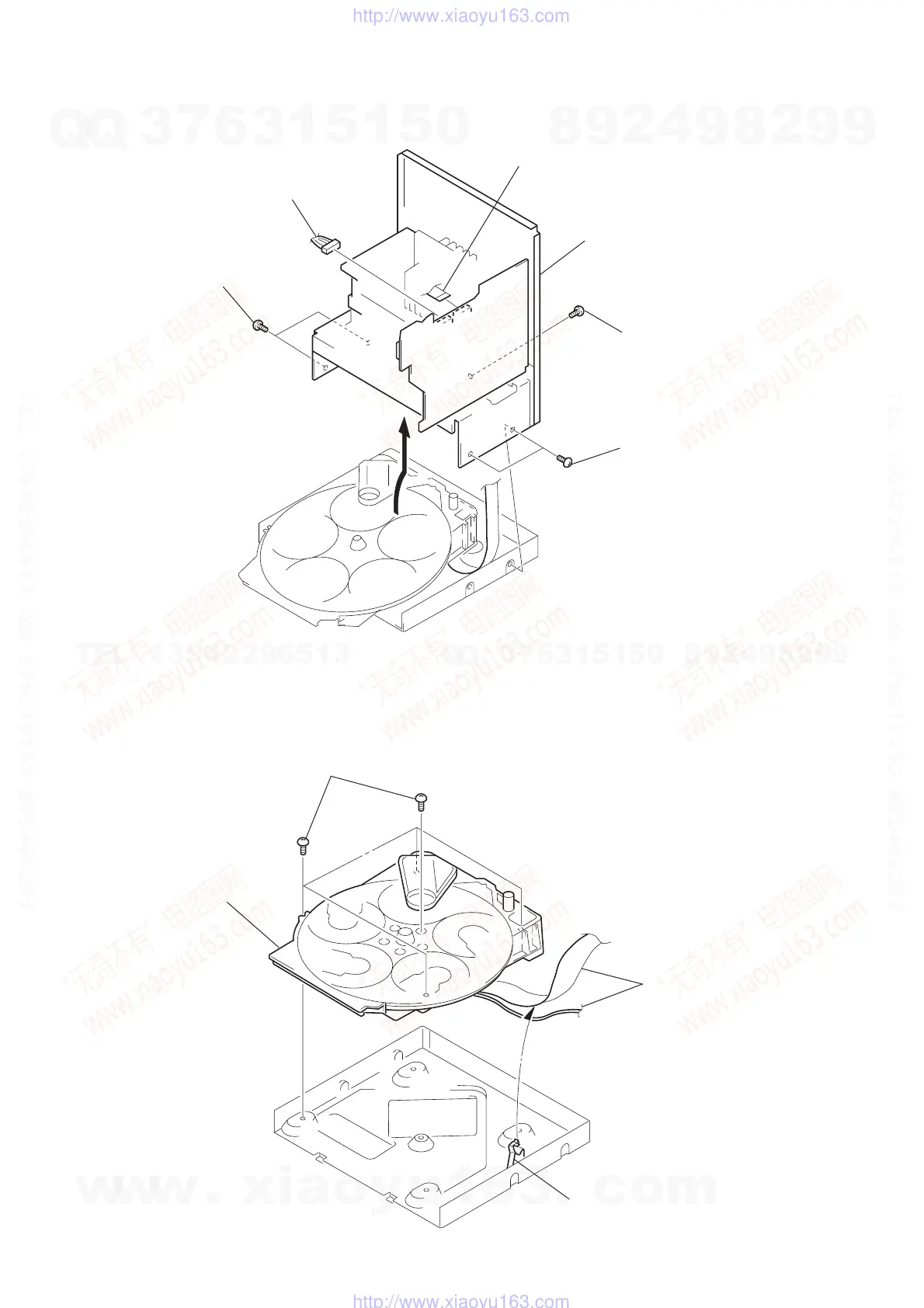

2-4. MAIN SECTION
2-5. CD MECHANISM DECK SECTION
1 Flat wire (CN202)
4 Main section
2 Connector
(CN203)
3 Screw
(BVTP 3
× 8
)
3 Two screws
(BVTP 3
× 8
)
3 Two screws
(BVTP 3
× 8)
3 Five screws
(BVTP 3
× 8)
4 CD mechanism
deck section
2 Flat wire and
lead wire
1 Open the clamp.
