— 45 —
HCD-D390/D790/G5500/XB33/XB44/XB50/XB60

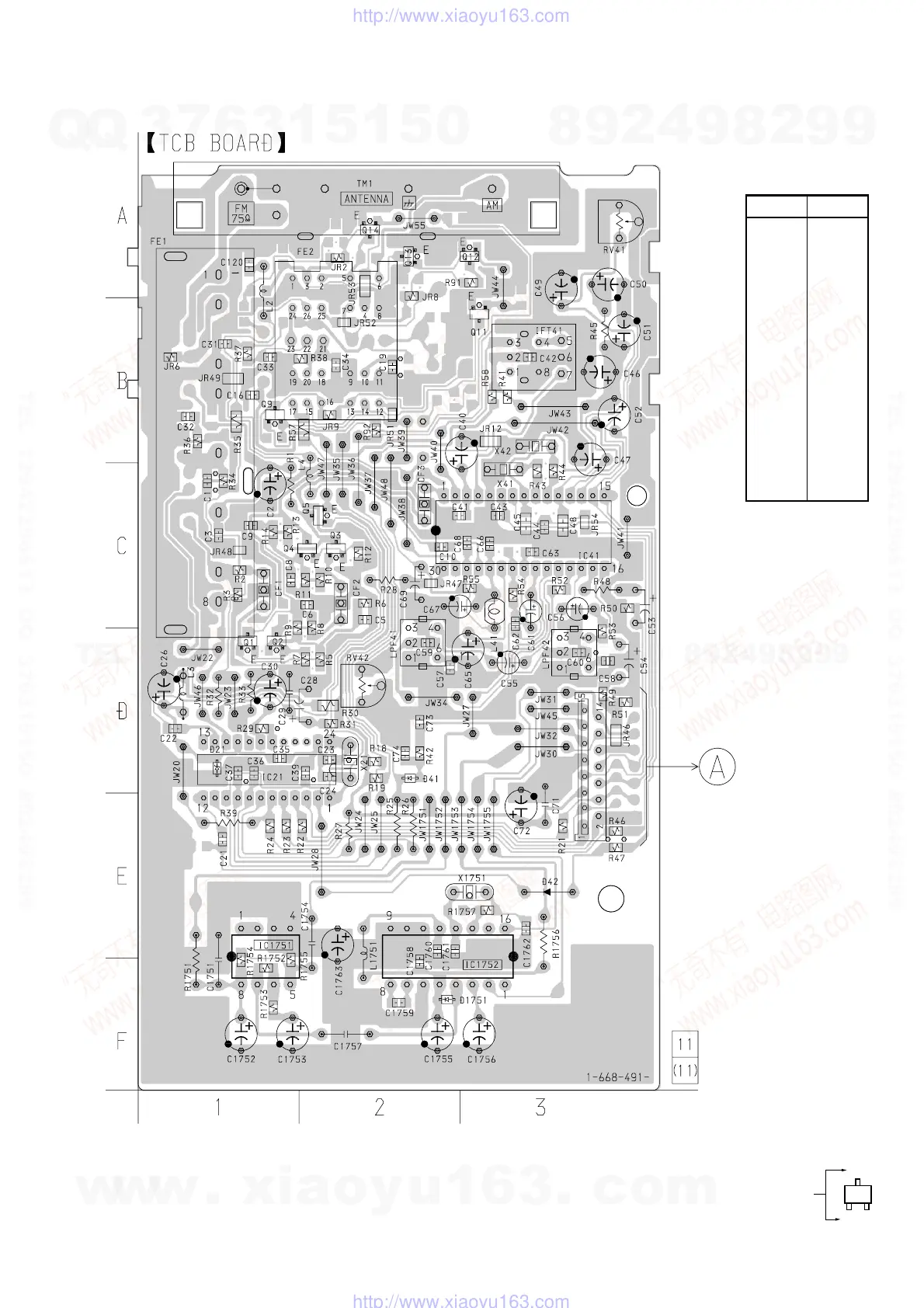

6-8. PRINTED WIRING BOARD – TUNER SECTION (AEP, UK Model) –
• See page 25 for Circuit Boards Location.
(Page 68)
16
MAIN BOARD
CN201
Ref. No. Location
• Semiconductor
Location
D21 D-1
D41 D-2
D42 E-3
D1751 F-2
IC21 D-1
IC41 C-3
IC1751 E-1
IC1752 F-3
Q1 D-1
Q2 D-1
Q3 C-2
Q4 C-2
Q5 C-2
Q9 B-1
Q11 B-3
Q12 A-3
Q13 A-2
Q14 A-2
• Indication of transistor
