— 90 —
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

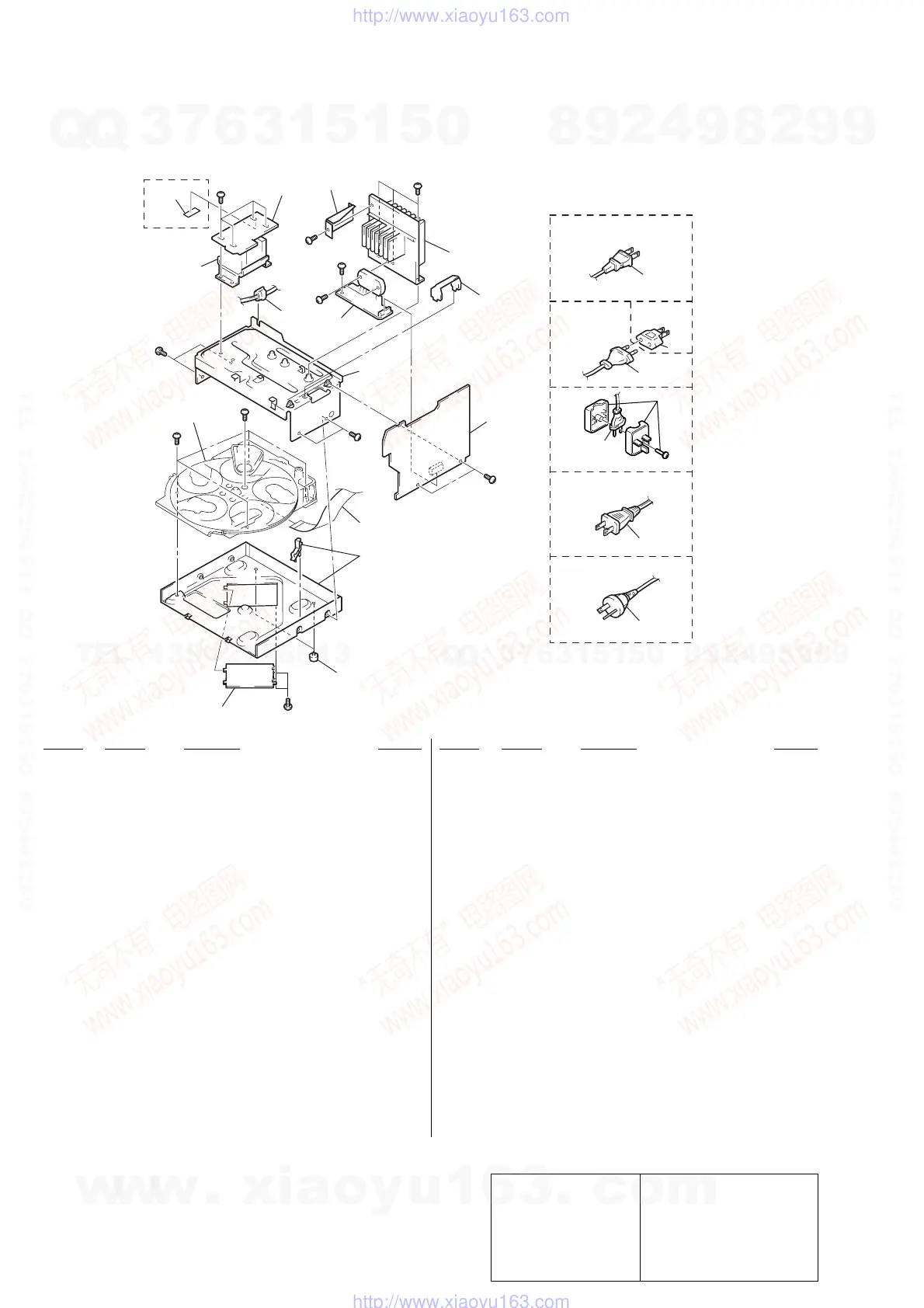

7-4. CHASSIS SECTION
* 151 1-664-014-11 TRANS BOARD
(D390: US/D790: US/G5500/XB50/XB60)
* 151 1-668-169-11 TRANS BOARD
(D390: CND/D790: CND/XB33/XB44)
* 152 3-701-946-28 LABEL, FUSE RATING (D390: CND/D790: CND)
153 3-703-244-00 BUSHING (FBS001), CORD
(EXCEPT XB33: E, MX/XB44: E, MX)
153 4-966-266-01 BUSHING (S) (FBS002), CORD
(XB33: E, MX/XB44: E, MX)
* 154 A-4392-442-A POWER AMP BOARD, COMPLETE
(D390/D790/G5500)
* 154 A-4403-868-A POWER AMP BOARD, COMPLETE (XB60)
* 154 A-4403-888-A POWER AMP BOARD, COMPLETE (XB44)
* 154 A-4403-900-A POWER AMP BOARD, COMPLETE (XB50)
* 154 A-4403-912-A POWER AMP BOARD, COMPLETE (XB33)
* 155 A-4392-438-A MAIN BOARD, COMPLETE (D390/G5500)
* 155 A-4392-474-A MAIN BOARD, COMPLETE (D790)
* 155 A-4403-870-A MAIN BOARD, COMPLETE (XB60: AEP, UK)
* 155 A-4403-890-A MAIN BOARD, COMPLETE (XB44: E, AR, MX)
* 155 A-4403-894-A MAIN BOARD, COMPLETE (XB50: AEP, UK)
* 155 A-4403-909-A MAIN BOARD, COMPLETE (XB33: E, AR, MX)
* 155 A-4407-353-A MAIN BOARD, COMPLETE (XB50: EE, CIS)
* 155 A-4407-358-A MAIN BOARD, COMPLETE (XB60: EE, CIS)
* 155 A-4407-361-A MAIN BOARD, COMPLETE (XB44: SAF, AUS)
* 155 A-4407-364-A MAIN BOARD, COMPLETE (XB33: SAF, AUS)
156 1-777-868-11 WIRE (FLAT TYPE) (19 CORE)
157 X-4941-228-1 FOOT (F22125H-M)
* 158 4-988-533-01 HOLDER, PWB
! 159 1-569-008-11 ADAPTOR, CONVERSION 2P (AR)
! 159 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (UK)
! CNP901 1-558-943-51 CORD, POWER (E, MX)
! CNP901 1-575-042-21 CORD, POWER (US, CND)
! CNP901 1-575-651-21 CORD, POWER (AEP, EE, AR, CIS, SAF, UK)
! CNP901 1-696-845-11 CORD, POWER (AUS)
! T901 1-431-045-11 TRANSFORMER, POWER (D390: US/G5500)
! T901 1-431-046-11 TRANSFORMER, POWER (D790: US)
! T901 1-431-634-11 TRANSFORMER, POWER (XB50)
! T901 1-431-635-11 TRANSFORMER, POWER (XB33)
! T901 1-431-636-11 TRANSFORMER, POWER (XB60)
! T901 1-431-637-11 TRANSFORMER, POWER (XB44)
! T901 1-431-733-11 TRANSFORMER, POWER
(D390: CND/D790: CND)
Note:
The components identi-
fied by mark ! or dotted
line with mark ! are criti-
cal for safety.
Replace only with part
number specified.
Note:
Les composants identifiés par
une marque ! sont critiques
pour la sécurité.
Ne les remplacer que par une
piéce portant le numéro
spécifié.
151
152
158
155
159
156
157
153
154
not supplied
not supplied
CNP901
not supplied
CDM37L-5BD29AL
T901
#1
#1
#1
#2
#1
not
supplied
D390:CND/D790:CND
#4
#1
#1
#1
#1
#1
not supplied
E, MX,
AEP, EE,
AR,CIS,SAF
AR
US, CND
AUS
CNP901
CNP901
CNP901
CNP901
