– 40 –
HCD-D890AV/XB55AV/XB80AV/XB88AV
Ref. No. Location
• Semiconductor
Location
• Indication of transistor

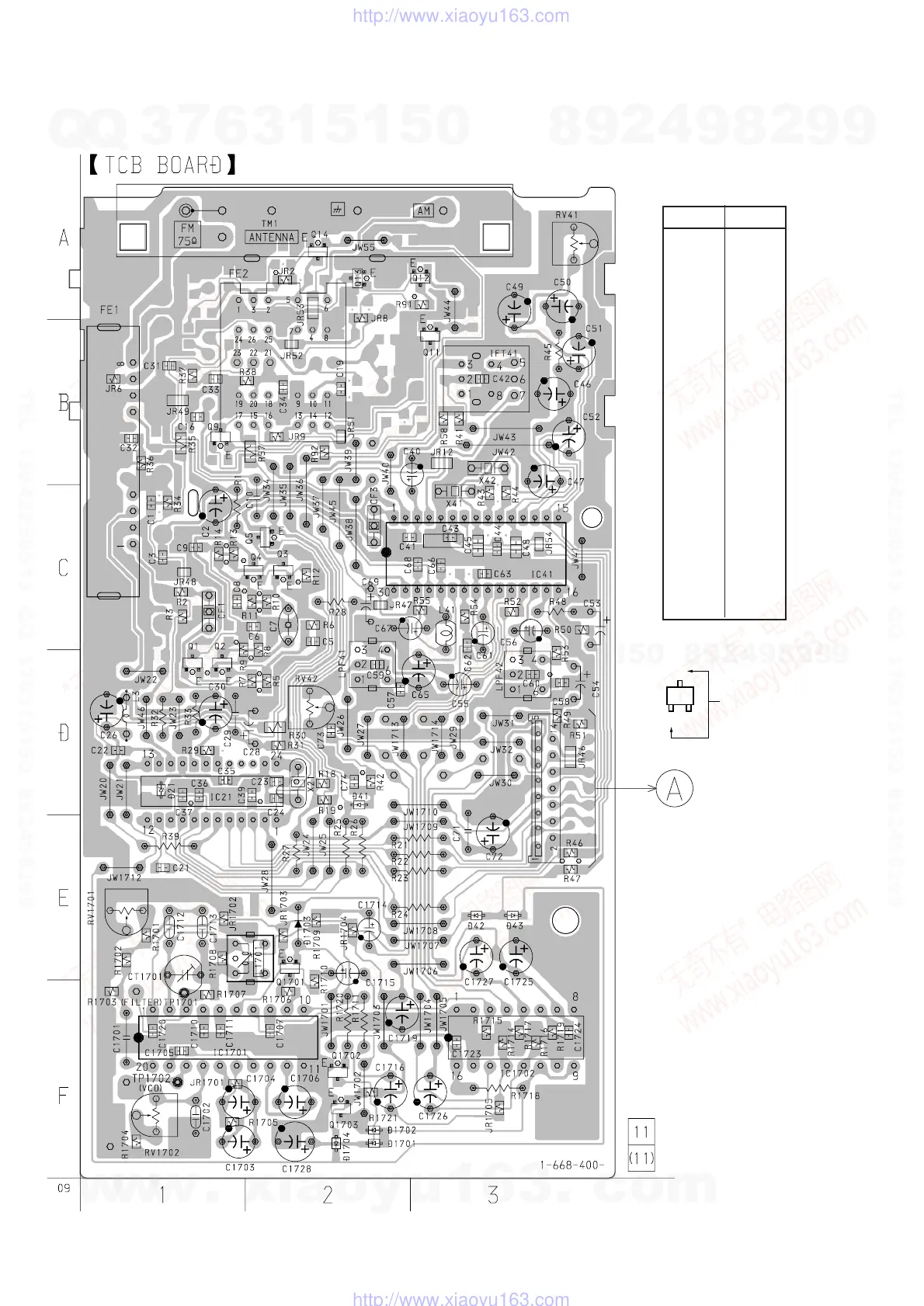

6-7. PRINTED WIRING BOARD – TUNER SECTION – (East European, CIS model)
• See page 18 for Circuit Boards Location.
D1 D-1
D41 D-2
D42 E-3
D43 E-3
D1701 F-2
D1702 F-2
D1703 E-2
D1704 F-2
IC21 D-1
IC41 C-3
IC1701 F-1
IC1702 F-3
Q1 D-1
Q2 D-2
Q3 C-2
Q4 C-2
Q5 C-2
Q9 B-1
Q11 B-3
Q12 A-3
Q13 A-2
Q14 A-2
Q1701 E-2
Q1702 F-2
Q1703 F-2
(Page 44)
