– 106 –

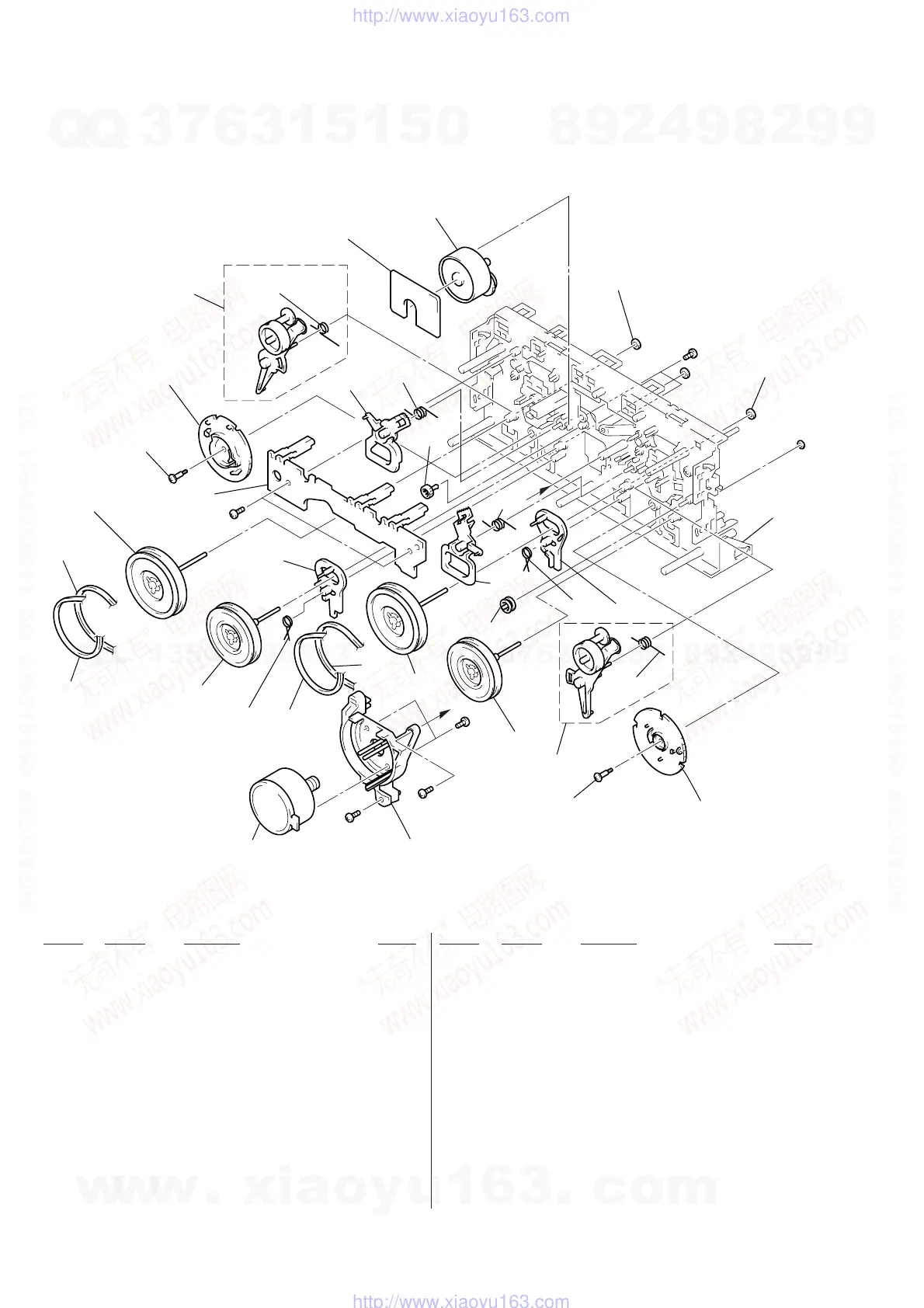

7-7. TC MECHANISM SECTION-3 (TCM-220WR2)
pA: MOTOR board (Suppplied with AUDIO board)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
301 3-908-597-01 CAM (A)
302 3-908-608-11 SCREW, STEP
303 X-3372-930-1 ARM (A) ASSY, FR
304 X-3370-169-1 FLYWHEEL (AR) ASSY
305 3-928-047-01 PULLEY, TENSION
306 3-908-599-01 LEVER (REV-A)
307 3-908-601-01 SPRING (REV LEVER), TORSION
308 3-908-603-01 LEVER (TRIGGER A)
309 X-3367-593-1 FLYWHEEL (BF) ASSY
310 3-908-605-01 SPRING (TRIGGER), TORSION
311 3-908-609-01 GEAR, TRIGGER
312 3-913-845-11 BELT (A)
313 3-913-846-11 BELT (FR)
314 X-3370-171-1 FLYWHEEL (BR) ASSY
315 3-908-600-01 LEVER (REV-B)
* 316 1-650-669-11 LEAF SWITCH BOARD
317 3-908-598-01 CAM (B)
318 X-3372-931-1 ARM (B) ASSY, FR
319 3-911-114-01 SPRING (FR), TORSION
320 3-908-604-01 LEVER (TRIGGER B)
321 3-911-115-01 WASHER, STOPPER
322 3-917-176-11 BELT (B)
323 X-3370-172-1 FLYWHEEL (AF) ASSY
* 324 A-2007-131-A AUDIO BOARD, COMPLETE
325 X-3371-441-1 CHASSIS ASSY, MECHANICAL
M1 X-3371-223-1 MOTOR ASSY (CAPSTAN)
M2 A-2004-410-A MOTOR ASSY (TRIGGER)
322
313
309
316
302
317
318
319
320
310
315
314
307
313
312
323
303
302
304
305
308
307
306
319
301
310
311
321
321
324
p
A
M2
#2
#4
#
325
#3
#7
#7
#6
not supplied
M1
