– 103 –

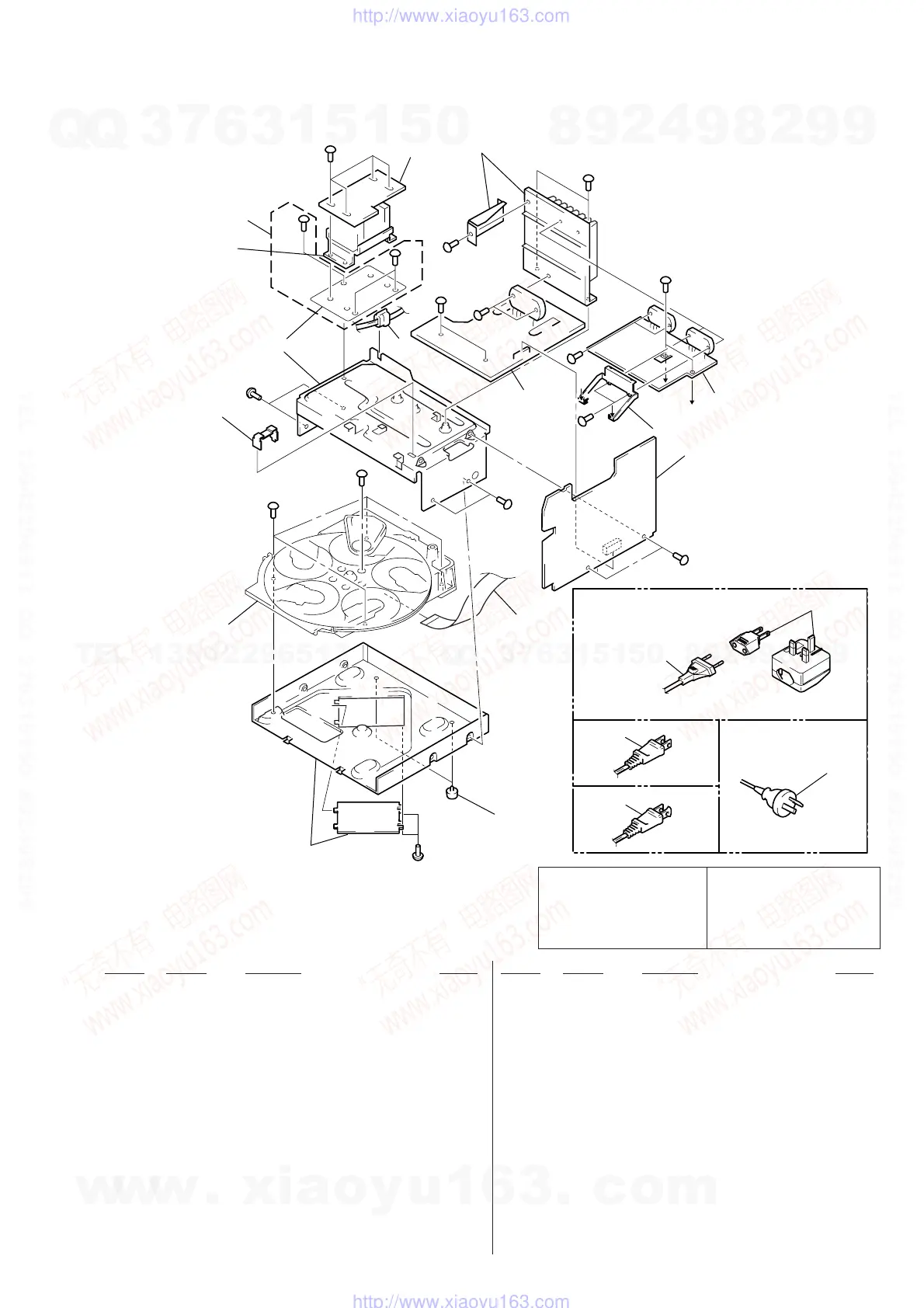

7-4. CHASSIS SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* 151 1-663-994-11 TRANS BOARD (XB80AV)
* 151 1-668-169-11 TRANS BOARD (D890AV/XB55AV/XB88AV)
! 152 1-569-008-11 ADAPTOR, CONVERSION 2P (XB88AV:AR)
! 152 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (XB80AV:UK)
153 3-703-244-00 BUSHING (FBS001), CORD
(D890AV/XB55AV/XB80AV/XB88AV:AR,SAF, AUS)
153 4-966-266-01 BUSHING (S)(FBS002), CORD (XB88AV:E,MX)
* 154 A-4407-196-A POWER BOARD, COMPLETE (XB80AV)
* 154 A-4407-230-A POWER BOARD, COMPLETE (D890AV)
* 154 A-4407-990-A POWER BOARD, COMPLETE (XB55AV/XB88AV)
* 155 A-4407-205-A MAIN BOARD, COMPLETE (XB80AV:AEP,UK)
* 155 A-4407-222-A MAIN BOARD, COMPLETE (XB88AV:E,MX,AR)
* 155 A-4407-233-A MAIN BOARD, COMPLETE (D890AV)
* 155 A-4407-713-A MAIN BOARD, COMPLETE (XB80AV:EE,CIS)
* 155 A-4407-716-A MAIN BOARD, COMPLETE (XB88AV:SAF,AUS)
* 155 A-4407-718-A MAIN BOARD, COMPLETE (XB55AV)
156 1-782-715-11 WIRE (FLAT TYPE) (19 CORE)
157 X-4941-228-1 FOOT (F22125H-M)
* 158 A-4407-200-A SURROUND BOARD, COMPLETE (XB80AV)
* 158 A-4407-216-A SURROUND BOARD, COMPLETE
(XB55AV/XB88AV)
* 158 A-4407-228-A SURROUND BOARD, COMPLETE (D890AV)
* 159 4-988-533-01 HOLDER, PWB
! CNP901 1-558-943-41 CORD, POWER (E)
! CNP901 1-558-943-51 CORD, POWER (MX)
! CNP901 1-575-042-21 CORD, POWER (CND)
! CNP901 1-575-651-21 CORD, POWER (AEP,UK,EE,CIS,AR,SAF)
! CNP901 1-696-845-11 CORD, POWER (AUS)
! T501 1-431-139-11 TRANSFORMER, POWER (XB80AV)
! T901 1-431-639-11 TRANSFORMER, POWER (XB55AV/XB88AV)
! T901 1-431-671-11 TRANSFORMER, POWER (D890AV)
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
(UK)
(AR)
(AEP,UK,EE,CIS,AR,SAF)
(AUS)
(E,MX)
(CND)
