– 107 –

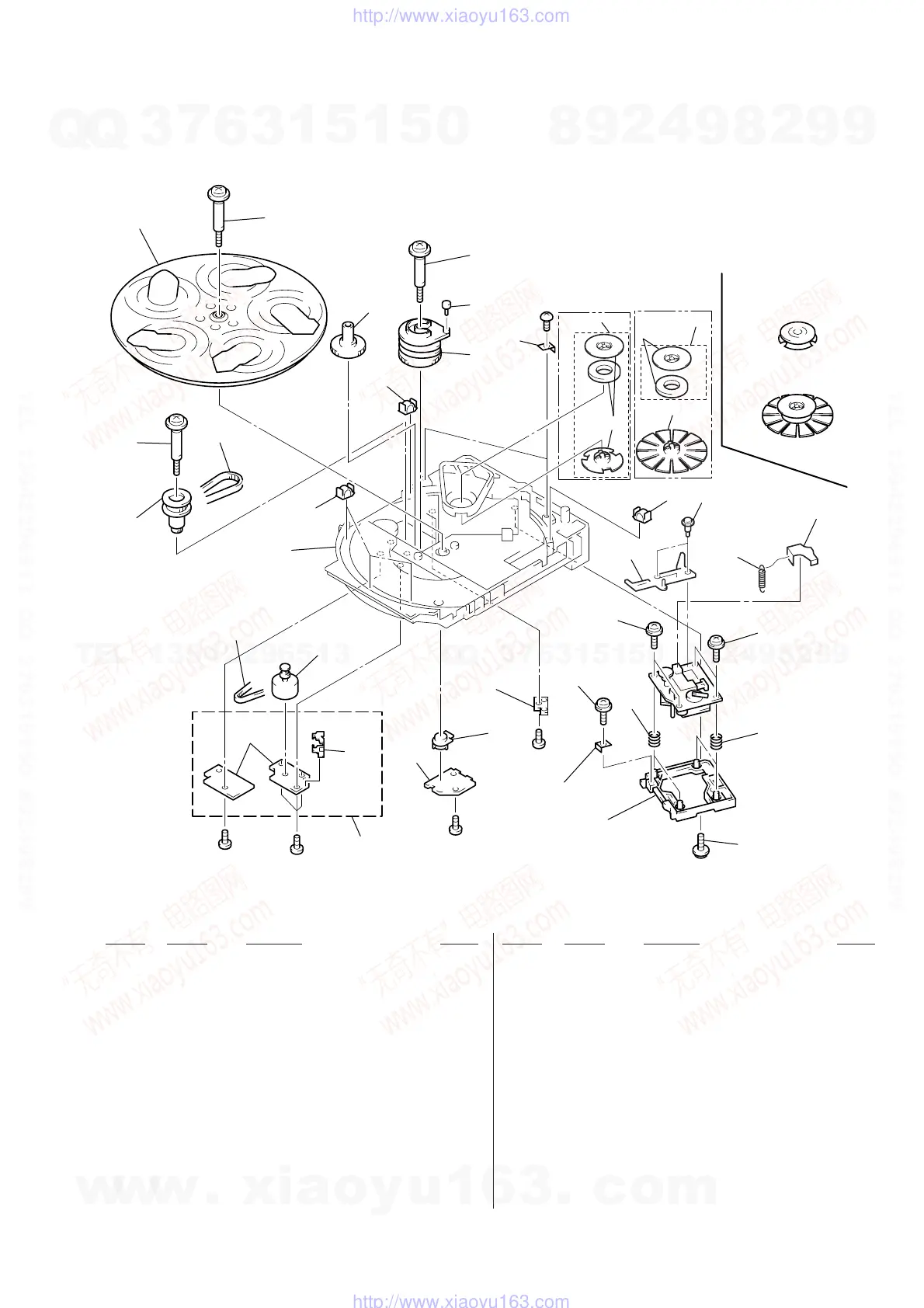

7-8. CD MECHANISM SECTION (CDM37L-5BD29AL/CMD37LH-5BD29AL)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* 364 A-4673-765-A CD MOTOR BOARD, COMPLETE
365 4-978-426-01 INDICATOR (NO.)
* 366 1-659-059-13 LED BOARD
* 367 1-659-058-13 TABLE SENSOR BOARD
368 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
369 4-958-593-01 SPRING (BU), COMPRESSION
* 370 4-978-419-01 HOLDER (BU-5)
371 4-917-583-71 BRACKET, YOKE
372 4-989-493-01 SLIDER (37)
373 4-989-494-01 SCREW (SLIDER), STEP
374 4-989-819-02 SPRING, TENSION
375 4-989-491-21 COVER, LENS
M201 A-4660-977-A MOTOR ASSY (TABLE)
351 4-987-976-01 SCREW, STEP
352 4-944-490-01 BELT (TIMING)
353 A-4660-978-A GEAR (PULLEY) ASSY
354 4-978-421-01 GEAR (MID)
355 4-978-425-01 ROLLER (CAM)
356 4-978-420-01 CAM (HOLDER)
* 357 1-452-879-11 MAGNET (CDM37L-5BD29AL)
* 357 1-452-925-11 MAGNET ASSY (CDM37LH-5BD29AL)
358 4-978-417-01 TABLE, DISC
359 4-993-142-11 PULLEY (L), PRESS
360 X-4947-960-1 ROLLER ASSY
* 361 4-978-583-01 BRACKET (BU)
* 362 4-978-418-01 CHASSIS
* 363 4-980-385-01 HOLDER (SW)
