– 43 – – 44 –

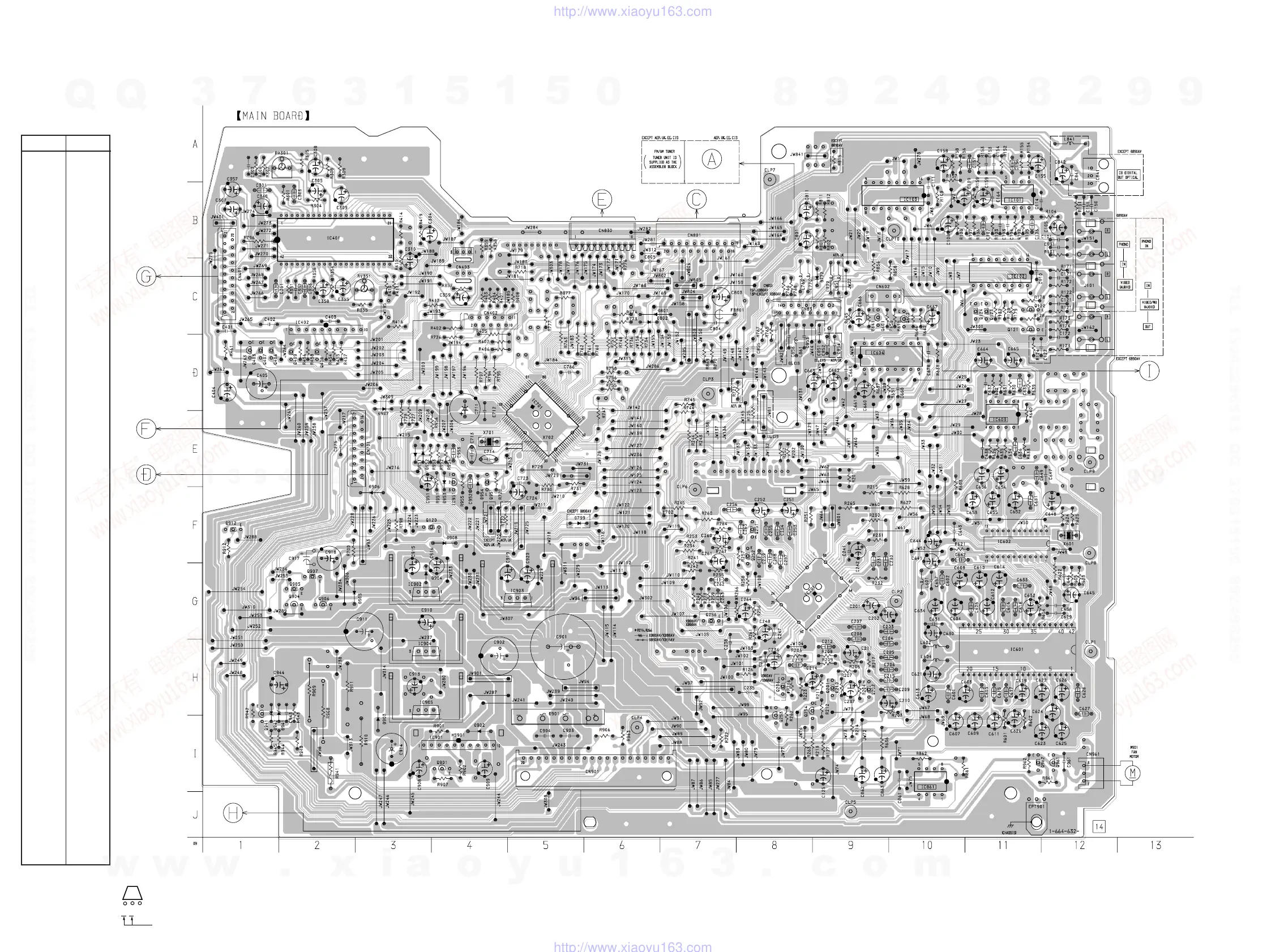

6-9. PRINTED WIRING BOARD – MAIN SECTION –
• See page 18 for Circuit Boards Location.
Ref. No. Location
• Semiconductor
Location
• Indication of transistor
HCD-D890AV/XB55AV/XB80AV/XB88AV
D702 F-7
D772 C-9
D799 F-5
D801 C-6
D802 C-6
D901 H-5
D902 I-4
D903 I-3
D905 G-2
D906 F-3
D907 D-3
D908 F-4
D941 H-1
D942 H-1
D951 E-3
D952 E-3
D953 E-4
D954 E-4
IC101 B-11
IC102 C-11
IC103 B-10
IC201 G-9
IC401 B-2
IC402 C-2
IC601 H-11
IC602 F-11
IC603 E-11
IC604 D-9
IC701 E-5
IC841 A-12
IC861 I-10
IC901 I-4
IC902 G-3
IC903 G-5
IC904 H-3
IC905 H-3
IC951 E-4
Q120 F-3
Q121 C-11
Q122 C-11
Q123 C-11
Q124 C-11
Q201 H-9
Q202 H-9
Q206 E-8
Q251 F-8
Q252 F-8
Q253 H-8
Q254 H-8
Q256 G-7
Q403 D-1
Q406 D-1
Q407 D-1
Q408 D-2
Q409 D-2
Q601 C-9
Q602 C-10
Q901 I-4
Q904 G-2
Q905 G-2
Q906 G-2
Q907 G-2
Q912 F-1
Q941 H-1
Q951 E-4
Q961 I-12
Q962 I-11
C
These are omitted
EB
(Page 39, 40)
(Page 34)
(Page 75)
(Page 55)
(Page 55)
(Page 65)
(Page 59)
(Page 83)
