Sony HCD-D890AV - 1 General; 2 Disassembly; Front Panel; Main Board

– 6 –

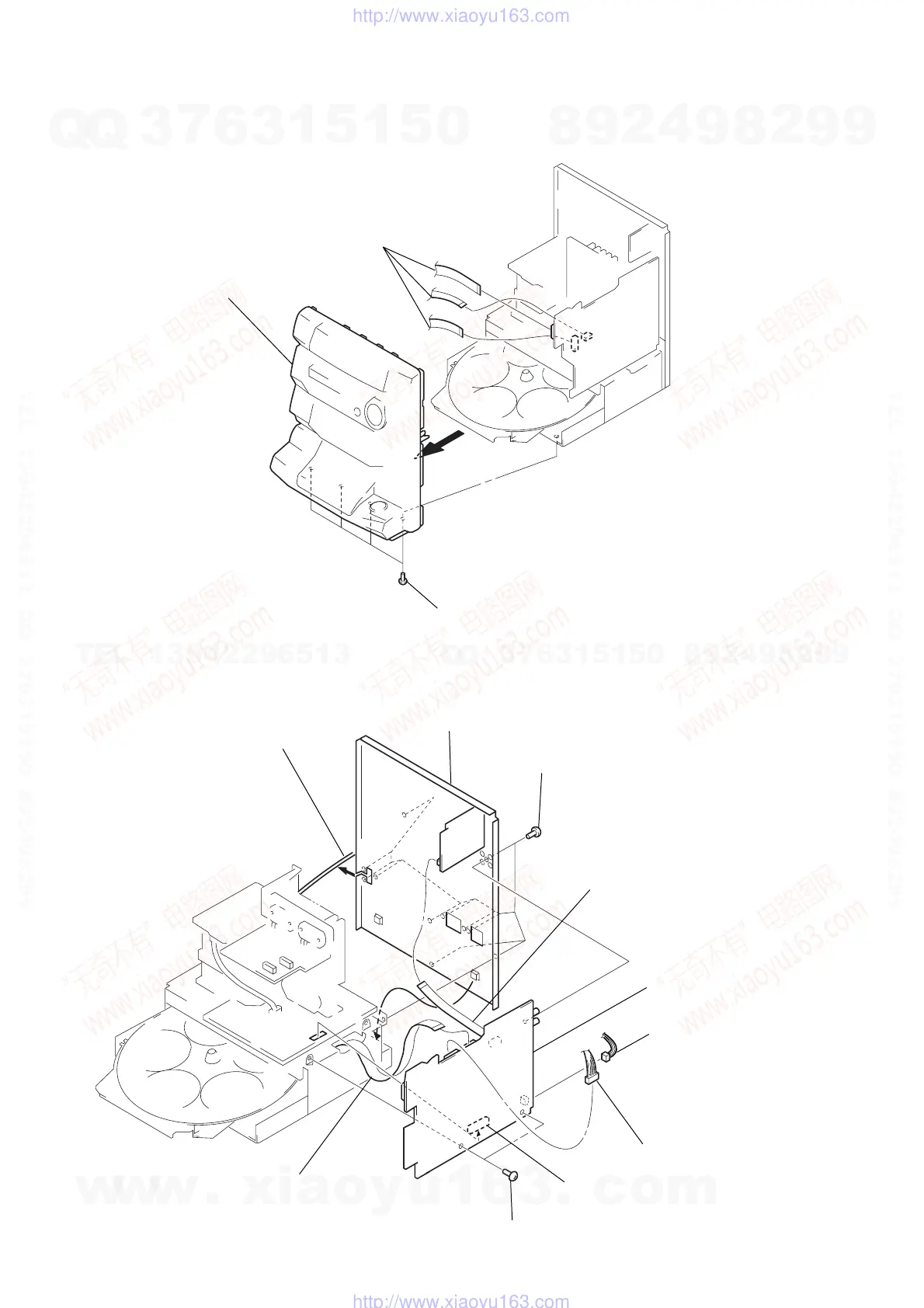

SECTION 2
DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.
2-1. FRONT PANEL
2-2. MAIN BOARD
1 Three flat type wiers
(CN401,CN402,CN701)
3 Front panel
2 Four screws (BVTP3x8)
4 Back panel
2 Eleven screws (BVTP3x8)
1 Flat type wire (CN1)
9 Main board
!º Connector (CN961
)
6 Connector (CN830)
8 Connector (CN901)
7 Two screws (BVTP3x8)
5 Flat type wire (CN801)
3 Power cord
