– 65 – – 66 –

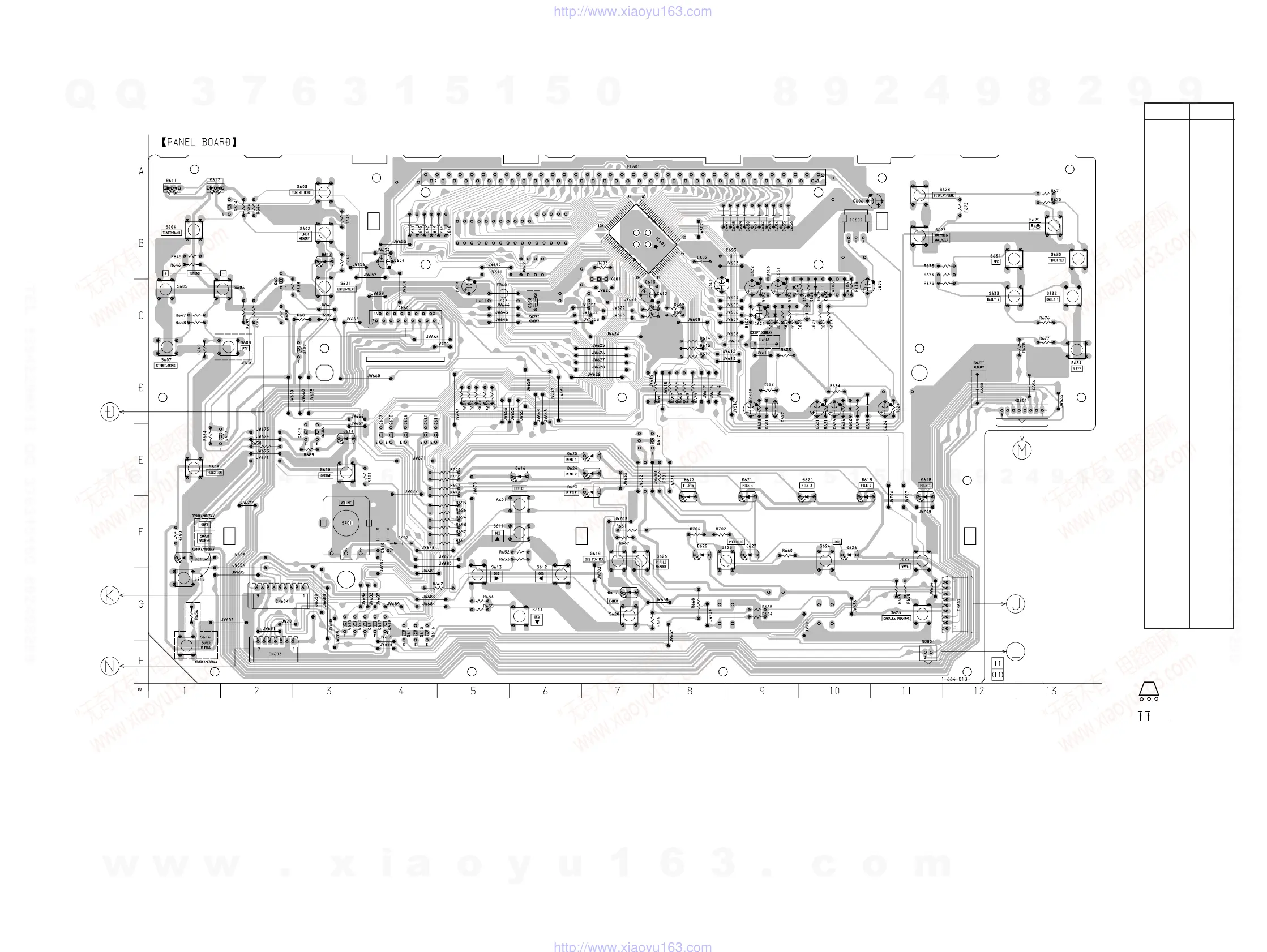

6-20. PRINTED WIRING BOARD – PANEL SECTION –
• See page 18 for Circuit Boards Location.
HCD-D890AV/XB55AV/XB80AV/XB88AV
D601 D-9
D602 D-10
D603 C-9
D604 C-9
D605 C-10
D606 C-9
D607 C-9
D611 A-1
D612 A-1
D613 B-3
D614 E-3
D615 F-1
D616 E-6
D617 G-7
D618 E-11
D619 E-10
D620 E-10
D621 E-9
D622 E-8
D623 E-7
D624 E-7
D625 E-7
D626 F-10
D627 F-9
D629 F-8
IC601 B-7
IC602 B-10
Q601 C-2
Q602 C-3
Q603 E-2
Q604 B-2
Q605 E-3
Q606 E-3
Q607 E-4
Q608 E-4
Q609 E-4
Q610 E-4
Q611 E-4
Q612 E-7
Q614 G-4
Q615 G-4
Q616 G-4
Q617 G-4
Q618 G-4
Q619 G-3
Q621 G-4
Q622 G-3
Ref. No. Location
• Semiconductor
Location
• Indication of transistor
C
These are omitted
EB
(Page 73)
(Page 67)
(Page 73)
(Page 43)
(Page 68)
(Page 74)
