BASE UNIT
(BU-K2BD38)

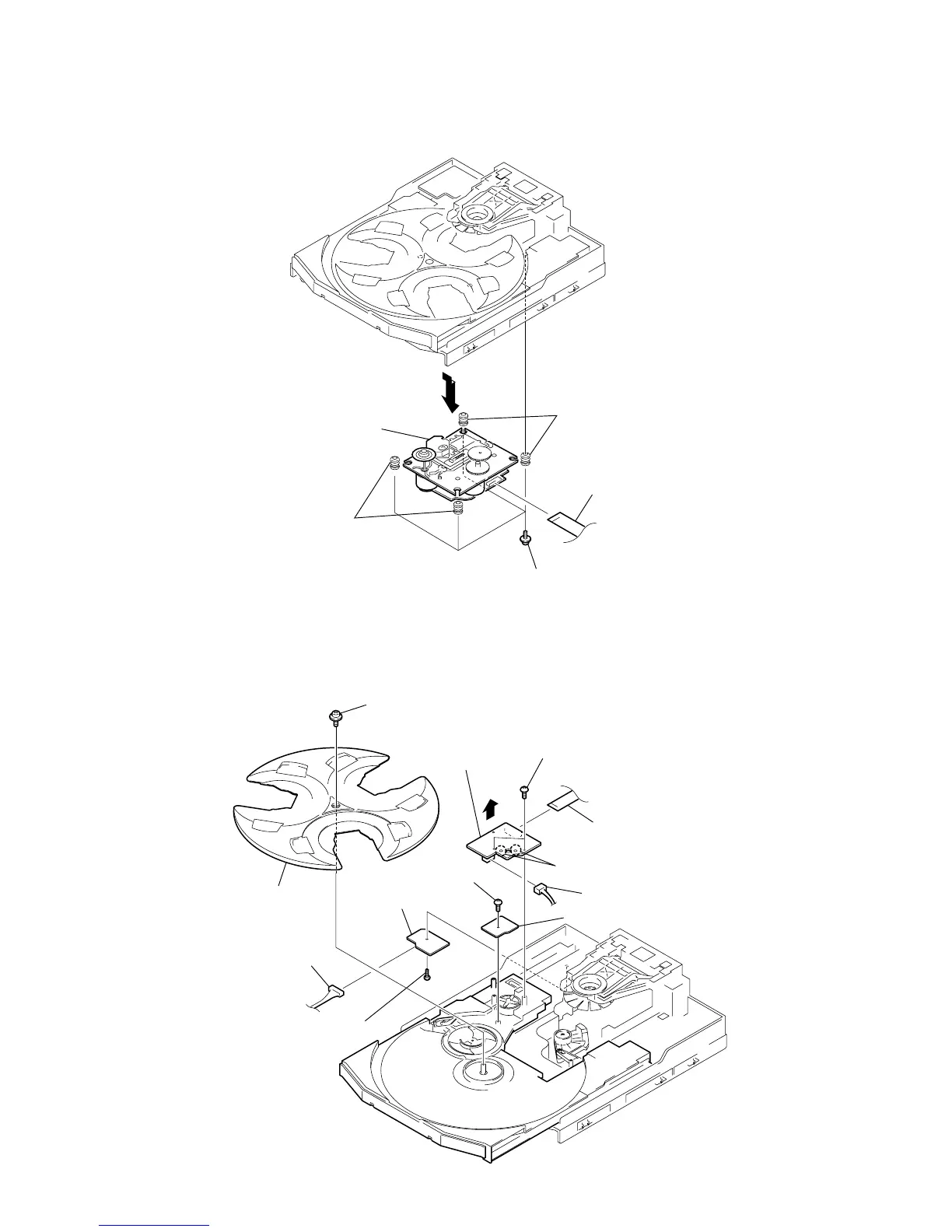

DRIVER/MOTOR/SENSOR BOARDS
2 four s crews
(PTPWH 2.6)
4 two insulators
4 two insulators
1 wire (flat type) (19 core) (CN101
)
3 Base unit
1 c onnector (CN701)
2 screw (BVTP2.6 × 8)
3 DRIVER board
q; screw (PTPWH2.6 × 8)
qs screw (BVTP 2.6 × 8)
qd SENSOR board
qa tray
4 Remove the two solderings of motor.
6
5
two screws (+BVTP 2.6 × 8)
7 wire (flat type) (8 core) (CN721
)
8 connector (CN722)
9 MOTOR board
