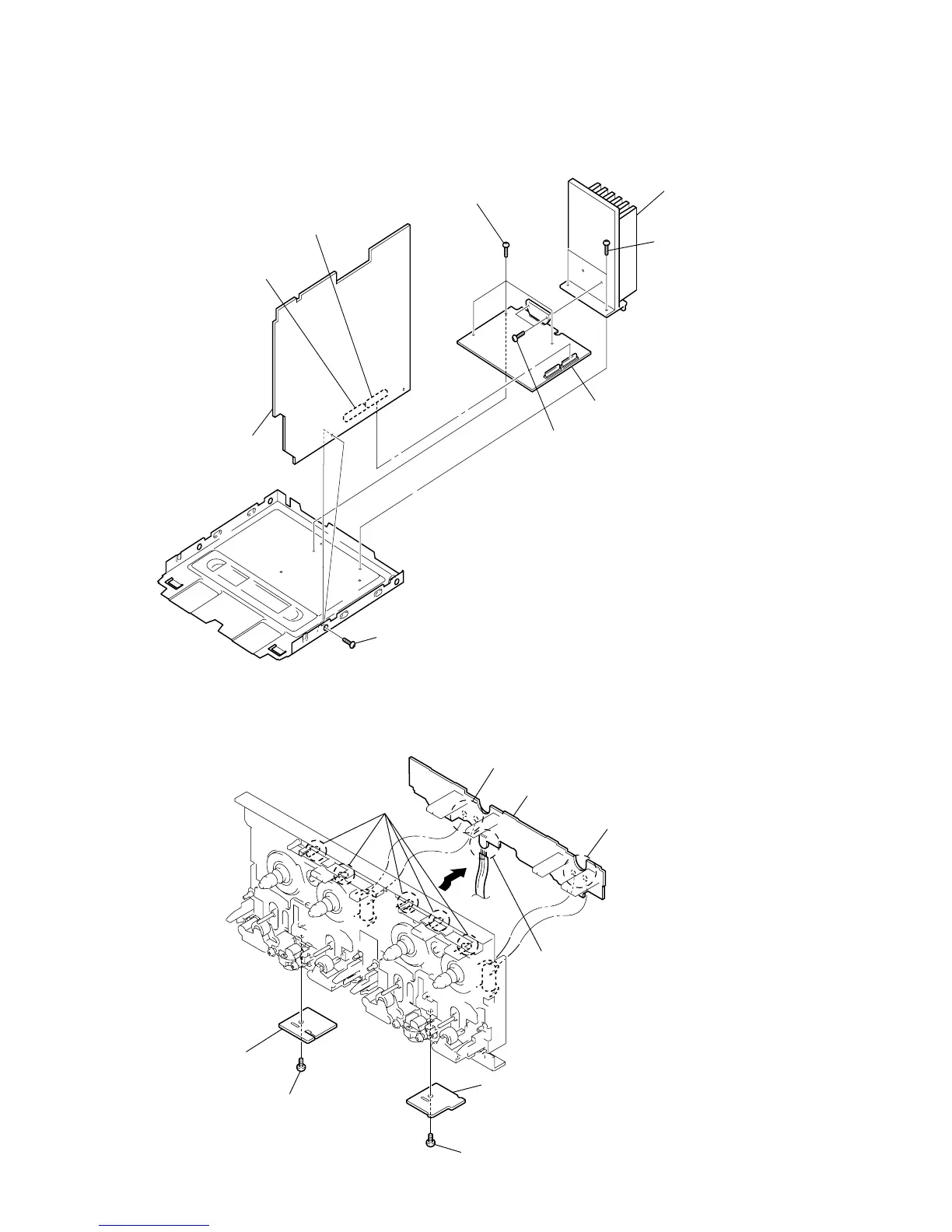

MAIN/POWER AMP BOARDS
LEAF SW/HEAD (A)/HEAD (B) BOARDS
1 two screws
(BVTP3 × 8 )
2 connector (CN502)
2 connector (CN503)
4 two screws
(BVTP3 × 16 )
7 two screws
(BVTP3 × 8
)
8 h eat sink
5 three screws
(BVTP3 × 8 )
6 POWER AMP board
3 MAIN board
6 ground point s crew
(PTT2
× 4)
2 five claws
5 LEAF
SW board
3
4
Remove the four solderings.
1 Remove the two solderings.
7 HEAD (A) board
8 ground point s crew
(PTT2
× 4)
9 HEAD (B) board
1 Remove the two solderings.
