Sony HCD-DX8 - Page 9

9

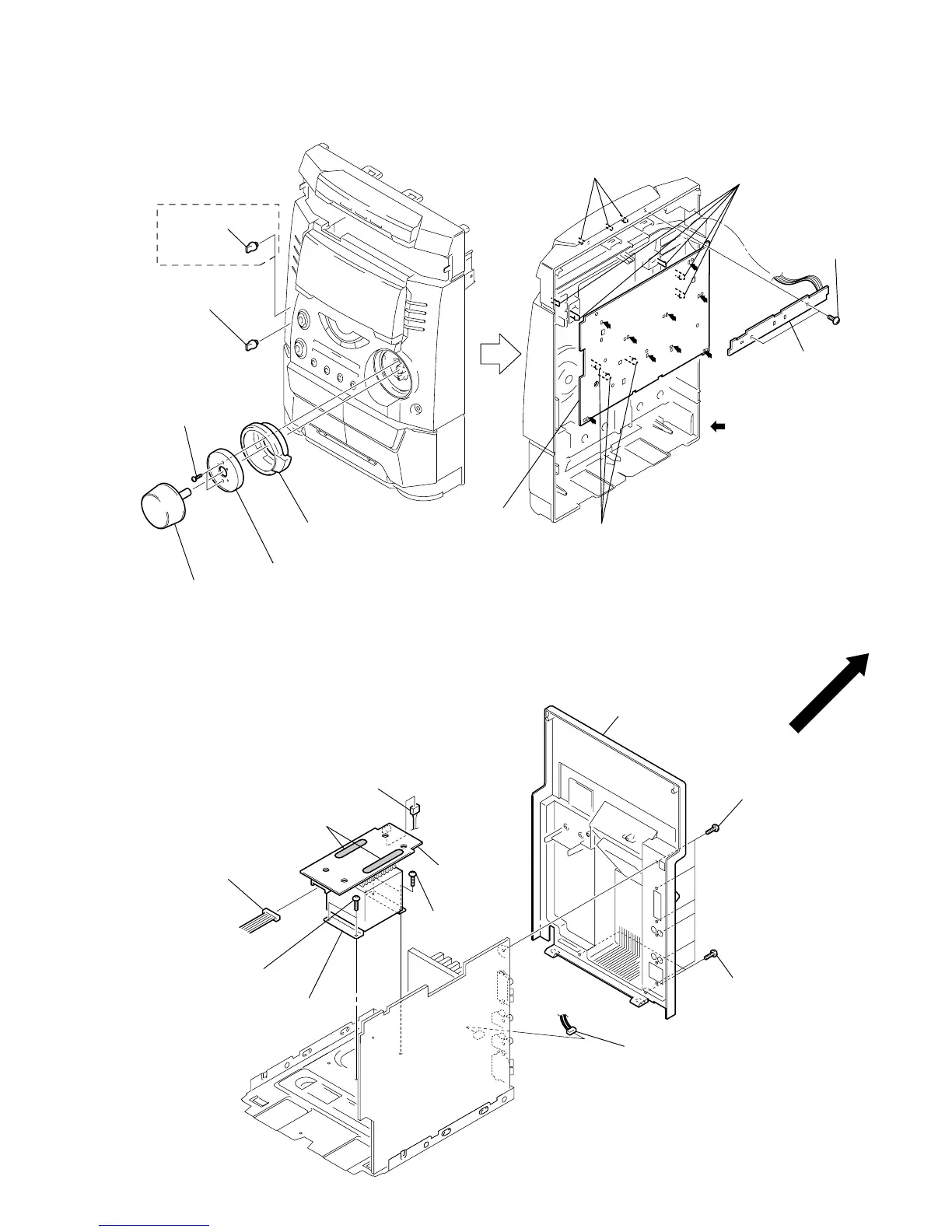

PANEL BOARD
POWER TRANSFORMER (T971), TRANS BOARD
6 two screws
(BVTP2.6
× 8 )
8 CD switch board
q; three claws
9 Cut the nine melted-connection points
with a cutting plier.
: melted-connection point
q; five claws
qa PANEL board
7 t hree claws
2 two screws
(BVTP2.6
× 8 )
3 bracket (FR)
4 FR knob
5 knob (MIC)
5 knob (MIC)
1 vol knob
Note: When attching the panel board,
refer to "Service Note" on page 4.
EA
2 two screws
(BVTP3
× 10 )
7 two screws
(BVTP4
× 8 )
7 two screws
(BVTP4
× 8 )
q; TRANS board
8 power transformer
(T971)
3 six
screws
(BVTP3
× 10
)
1 connector (CN891)
5 connector (CN975)
9 Remove the sixteen solderings.
6
connector (CN977)
4 back panel
