Sony HCD-EA20 - I;O Board

13
HCD-EA20

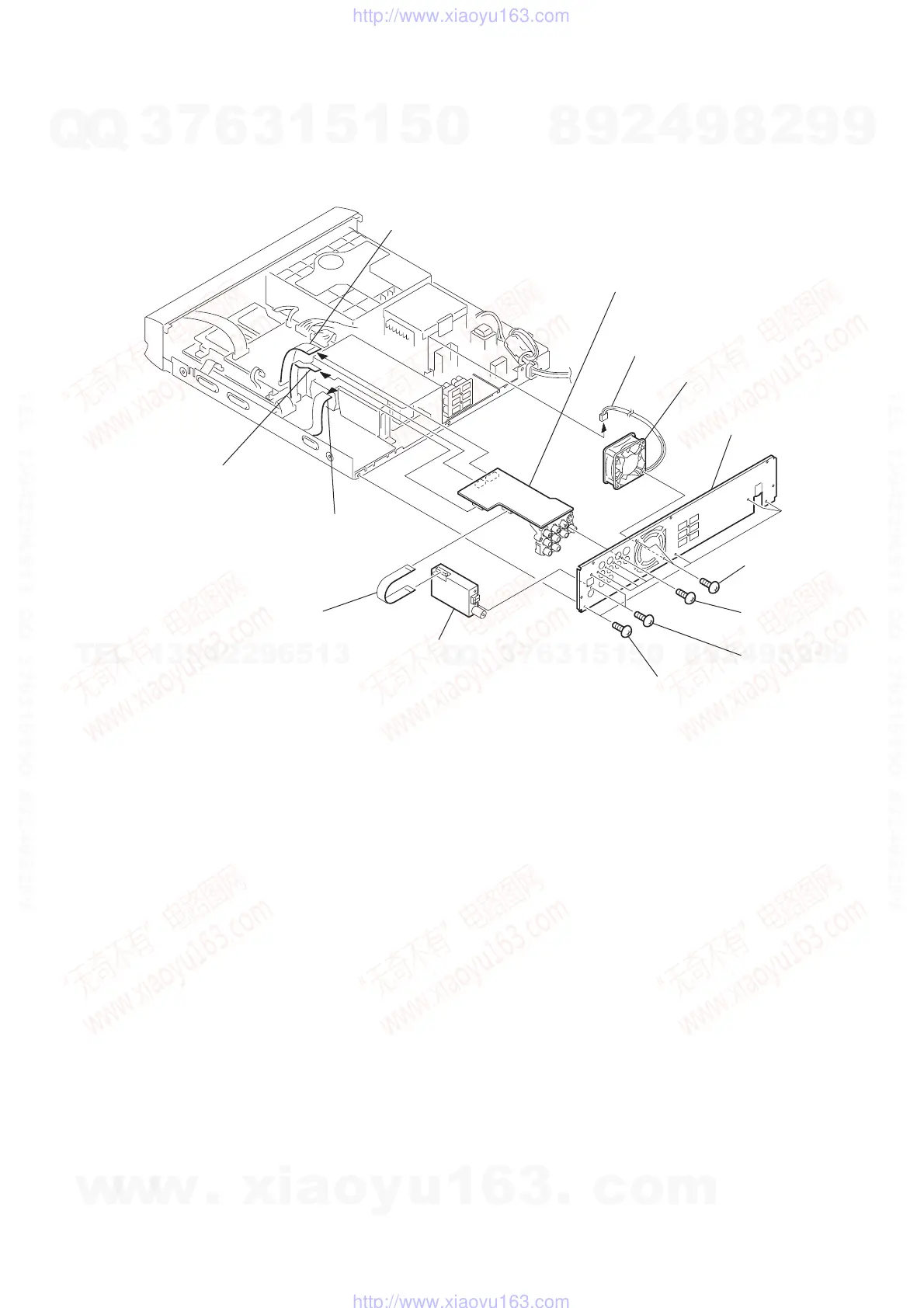

3-6. I/O BOARD
5 four screws
(+BVTP3
× 8)
9 four screws
(+BVTP3
× 8)
7 two screws
(+BVTP3
× 8)
qa two screws
(+BVTP3
× 8)
8 tuner unit
qs DC fan
qd back panel
4 connector
(CN421)
1 w ire (flat type)
17core (CN101)
2 w ire (flat type)
9core (CN102)
3 w ire (flat type)
15core (CN103)
6 w ire (flat type)
11core (CN104)
0 I/O board
