HCD-EA20

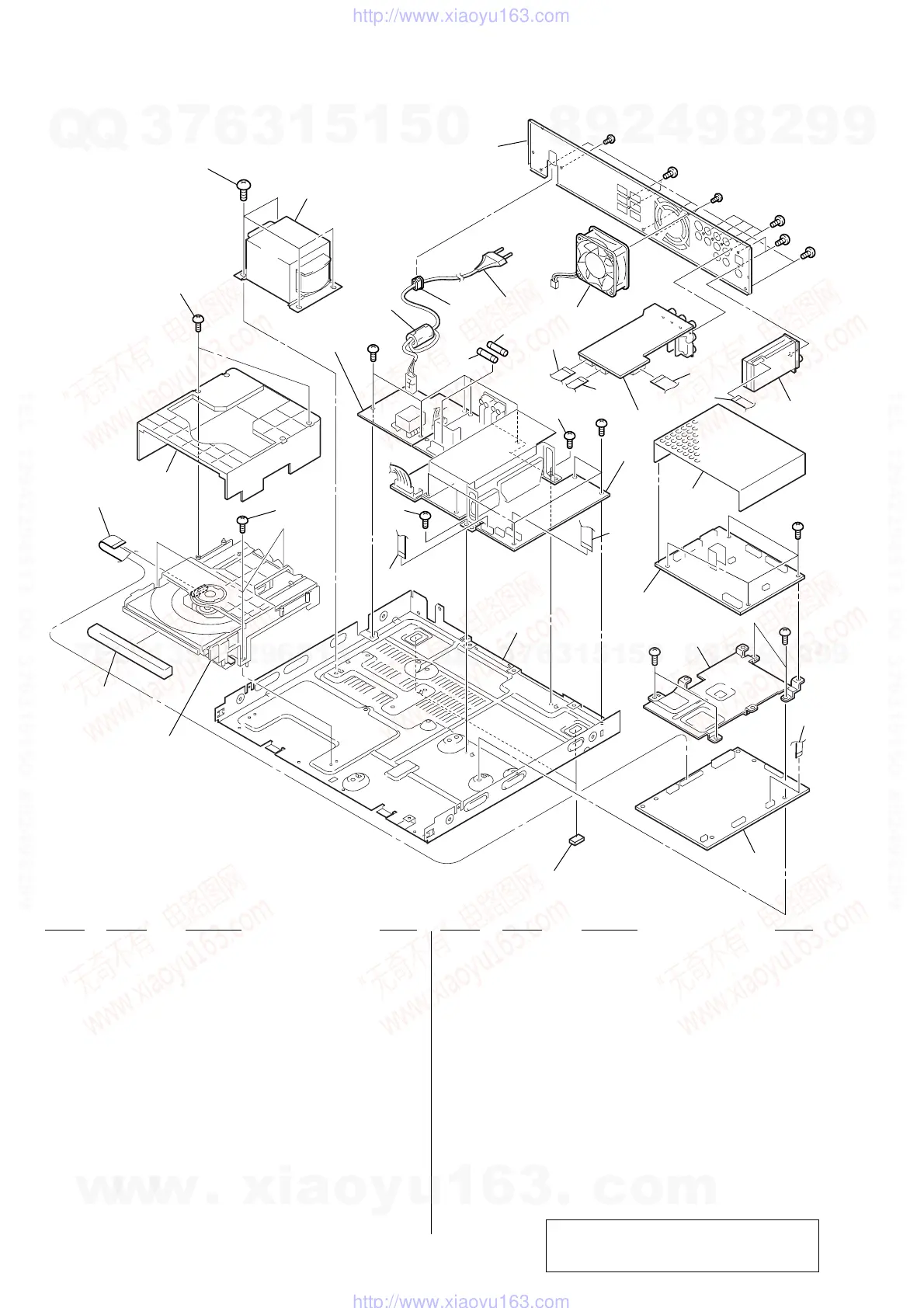

7-3. CHASSIS SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
101
102
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
103
104
107
108
106
118
119
120
121
117
122
123
109
110
111
105
105
112
114
116
115
113
105
DVD mechanism section
(CDM77A-DVBU20)
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
T101
F903
F902
101 4-249-177-01 CD (LID)
102 1-775-267-11 WIRE (FLAT TYPE) (29 CORE)
103 4-951-620-01 SCREW (2.6X8), +BVTP
104 4-900-386-01 SCREW
105 3-970-608-01 SUMITITE (B3), +BV (AEP,UK)
105 3-970-608-11 SUMITITE (B3), +BV (RU)
* 106 3-703-244-00 BUSHING (2104), CORD
0107 1-575-651-21 CORD, POWER
108 1-763-697-21 DC FAN (AEP,UK)
108 1-787-094-11 FAN, DC (RU)
109 1-500-386-21 FILTER, CLAMP (FERRITE CORE)
110 A-4748-523-A SUB TRANS BOARD, COMPLETE
111 A-4748-520-A AMP BOARD, COMPLETE
112 A-4748-534-A I/O BOARD, COMPLETE
113 A-4748-528-A UCOM BOARD, COMPLETE (AEP,UK)
113 A-4750-132-A UCOM BOARD, COMPLETE (RU)
114 A-4748-541-A DMB03 BOARD, COMPLETE (AEP,UK)
114 A-4750-134-A DMB03 BOARD, COMPLETE (RU)
115 4-250-787-01 FOOT
116 1-773-989-11 WIRE (FLAT TYPE) (5 CORE)
117 A-4738-774-A TUNER UNIT
118 1-775-152-11 WIRE (FLAT TYPE) (17 CORE)
119 1-775-083-11 WIRE (FLAT TYPE) (9 CORE)
120 1-827-627-11 WIRE (FLAT TYPE) (15 CORE)
121 1-769-937-11 WIRE (FLAT TYPE) (11 CORE)
122 1-775-102-11 WIRE (FLAT TYPE) (11 CORE)
123 1-775-189-11 WIRE (FLAT TYPE) (21 CORE)
0 F902 1-533-473-12 FUSE, GLASS TUBE (DIA. 5) (T6.3AL/250V)
0 F903 1-533-473-12 FUSE, GLASS TUBE (DIA. 5) (T6.3AL/250V)
0 T101 1-443-067-11 TRANSFORMER, POWER
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
