Sony HCD-EA20 - I;O Section

4949
HCD-EA20

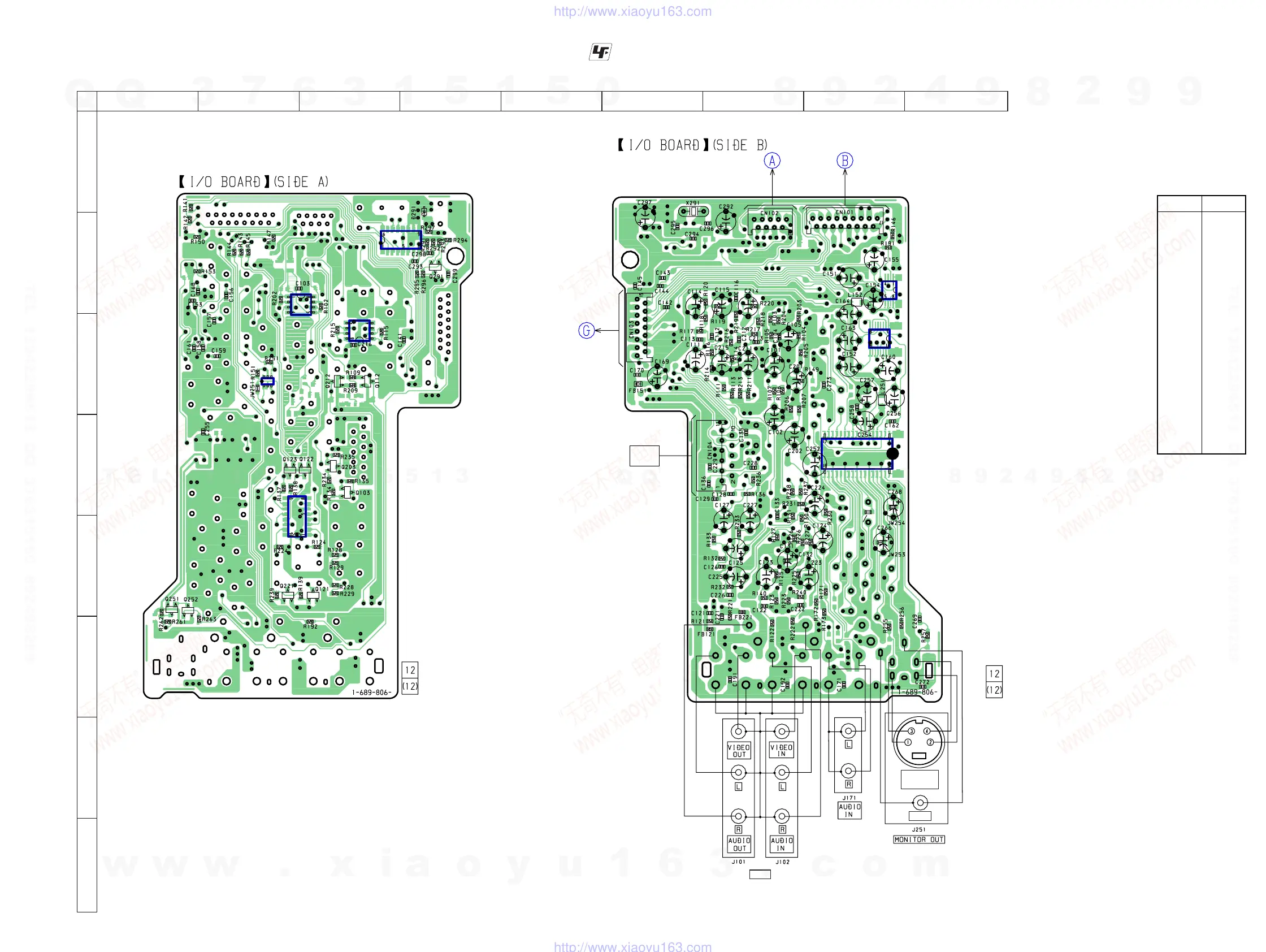

6-19. PRINTED WIRING BOARD – I/O SECTION – • See page 27 for Circuit Boards Location.
• : Uses unleaded solder.
• Semiconductor
Location
Ref. No. Location
D291 B-4
IC101 C-3
IC106 C-8
IC111 B-3
IC121 E-2
IC151 B-8
IC251 C-2
IC252 D-8
IC291 B-3
Q103 D-3
Q112 C-3
Q121 E-3
Q122 D-3
Q123 D-2
Q203 D-3
Q212 C-3
Q221 E-2
Q251 E-1
Q252 E-2
Q291 B-4
IC151
IC106
IC252
IC291
IC111
IC101
IC251
IC121
E
E
E
1
3
4
6
E
E
E
E
E
E
E
E
TUNER
UNIT
TO
DMB03
BOARD
CN105
(Page 37)
TO
AMP
BOARD
CN303
(Page 52)
TO
UCOM
BOARD
CN631
(Page 47)
VIDEO
S VIDEO
(DVD ONLY)
