Sony HCD-EA20 - 6-8. Printed Wiring Board - DMB Section (Side B) -

3838
HCD-EA20

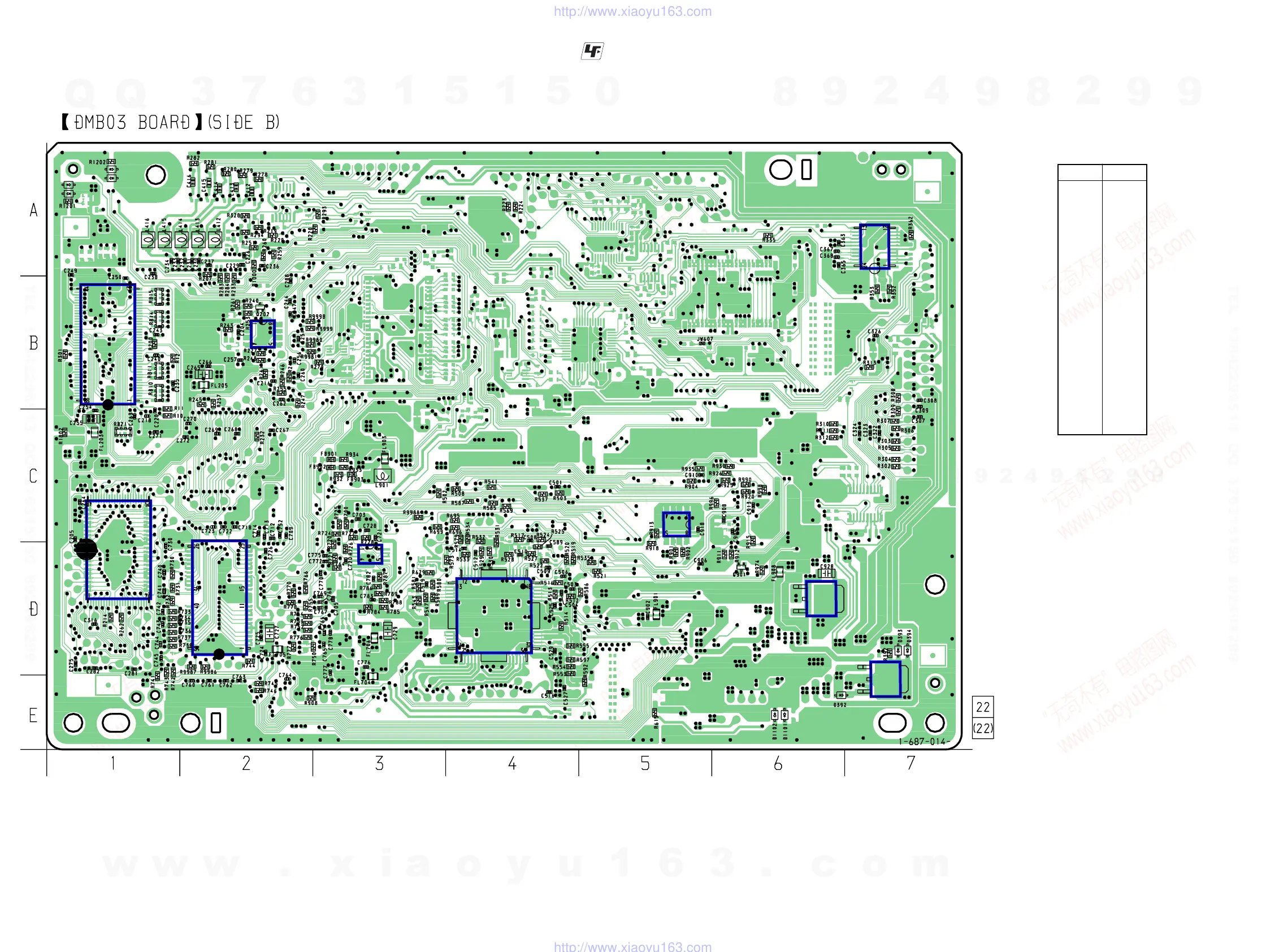

6-8. PRINTED WIRING BOARD – DMB SECTION (SIDE B) – • See page 27 for Circuit Boards Location.
• : Uses unleaded solder.
Ref. No. Location
D392 D-6
D393 D-7
D394 D-7
D1101 E-6
D1102 E-6
D1201 A-1
D1202 A-1
D1203 A-1
D1204 A-1
IC203 B-1
IC204 B-2
IC206 C-1
IC352 A-7
IC392 E-7
IC501 D-4
IC703 D-3
IC706 D-2
IC903 C-5
IC907 D-7
Q202 B-2
Q901 D-6
• Semiconductor
Location
IC352
IC392
IC907
IC903
IC204
IC703
IC706
IC203
IC206
IC501
D1203
D1204
D1201
D1202
