Sony HCD-EA20 - Panel Section

5555
HCD-EA20
IC802
IC801
TO
UCOM
BOARD
CN601
(Page 47)
TO
AMP
BOARD
CN401
(Page 52)
PREV
NEXT
PRESET
VOLUME
-
+
FUNCTION
PHONES
E
E
E
E
FLUORESCENT INDICATOR TUBE
1
1
1
5
5
5
POWER
POWER
12
A
B
C
D
E
F
34567891011

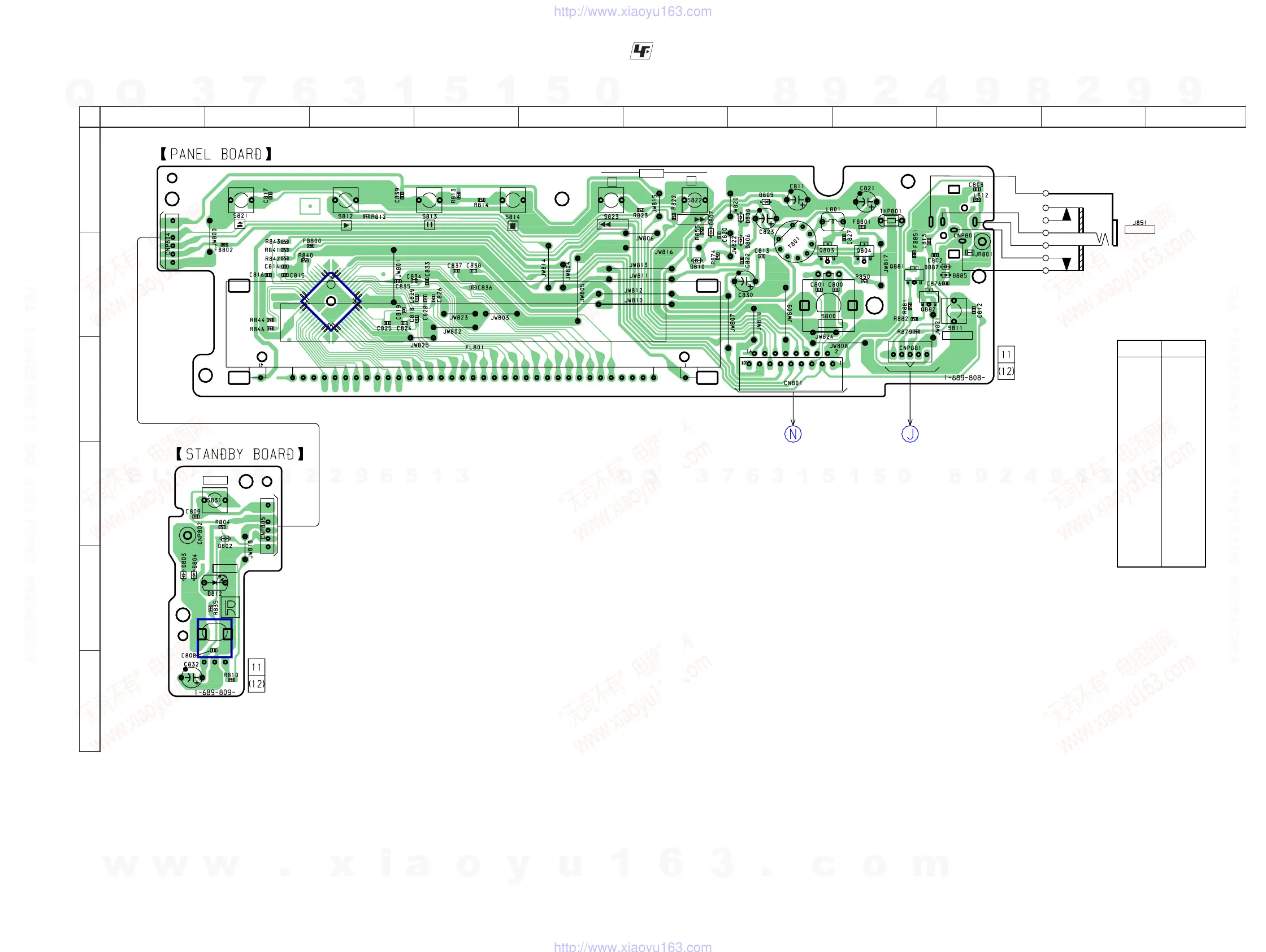

6-25. PRINTED WIRING BOARD – PANEL SECTION – • See page 27 for Circuit Boards Location.
• : Uses unleaded solder.
Ref. No. Location
D802 E-2
D803 E-1
D804 E-1
D806 B-7
D807 B-6
D808 A-7
D809 A-7
D810 B-6
D812 E-2
D885 B-9
D887 B-9
IC801 E-1
IC802 B-3
Q803 B-7
Q804 B-8
Q881 B-8
Q882 C-8
