Sony HCD-EA20 - 3-7. Amplifier Board and Sub Transformer Board Disassembly

14
HCD-EA20

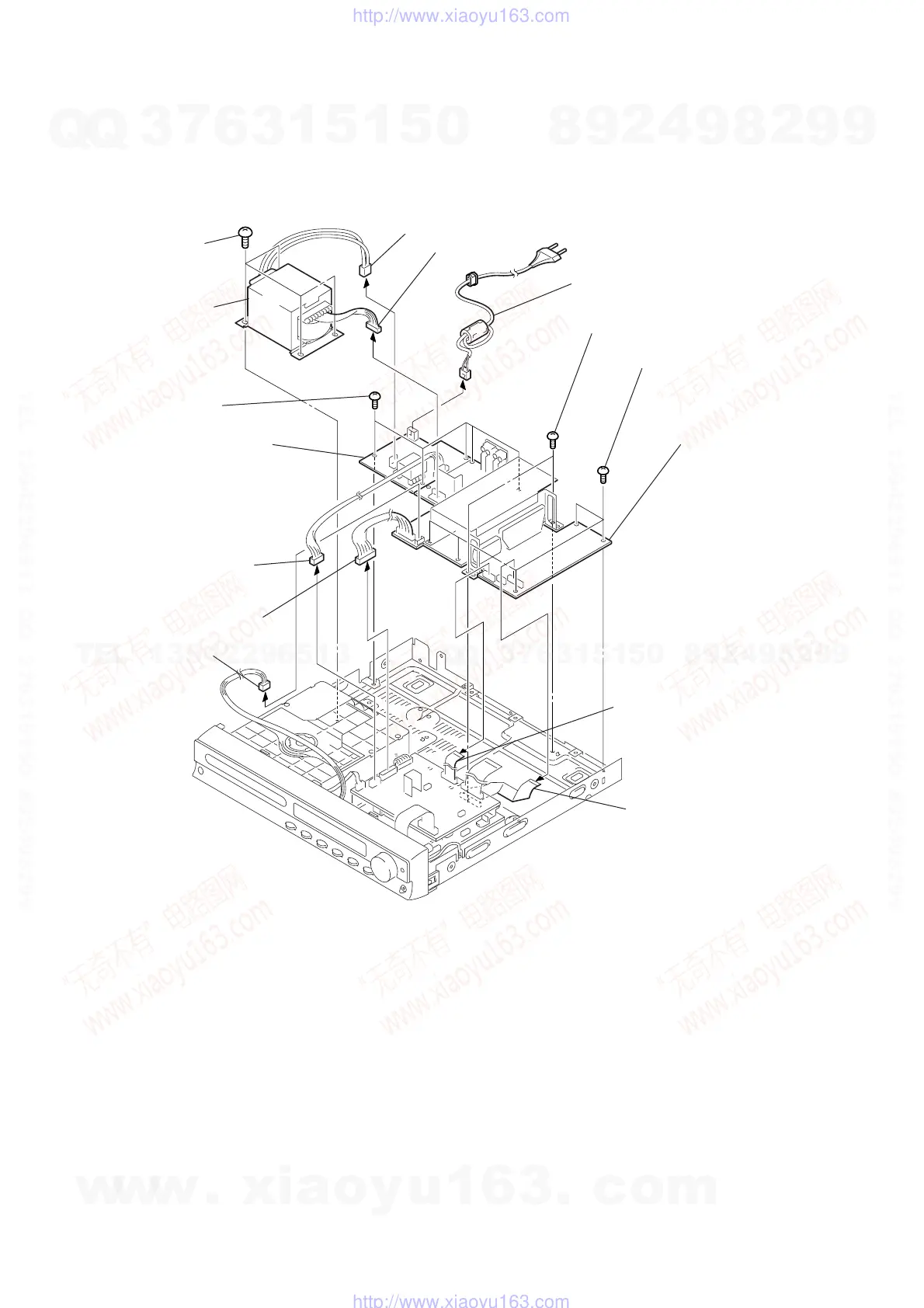

3-7. AMP BOARD, SUB TRANSFORMER BOARD
qs AMP board
qd SUB TRANSFORMER board
9 five screws
(+BVTP3
× 8)
qa five screws
(+BVTP3
× 8)
qf four screws
8 power cord
qg power transformer
(main) (T101)
0 two screws
(sumitite 3
× 6)
6 connector
(CN951)
4 connector
(CN652)
5 connector
(CN401)
3 connector
(CN651)
7 connector
(CN902)
2 w ire (flat type)
11core (CN952)
1 w ire (flat type)
25core (CN302)
