HCD-EA20

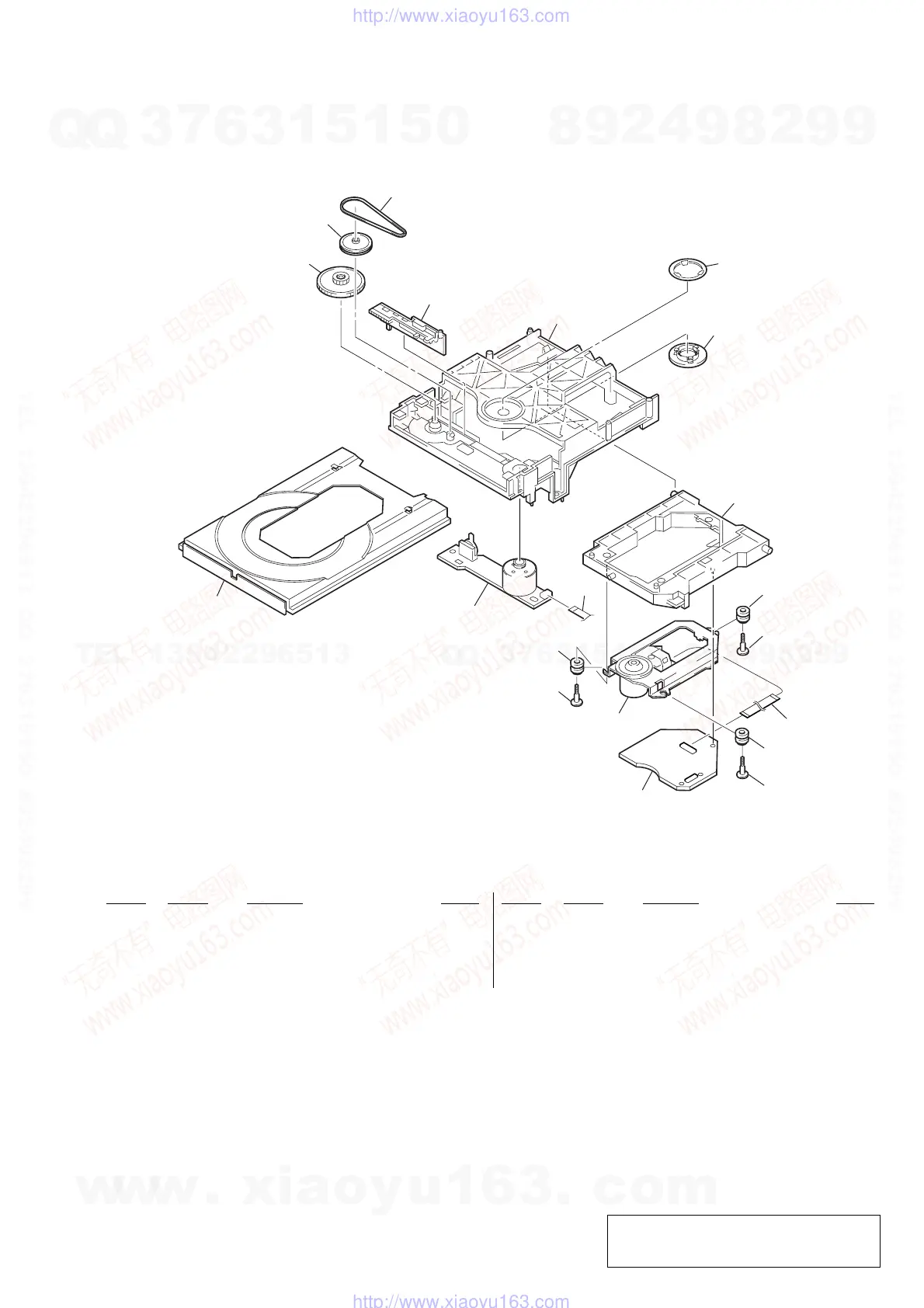

7-4. DVD MECHANISM SECTION (CDM77A-DVBU20)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
401
404
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
403
409
410
407
410
410
408
405
406
402
402
402
401 4-243-742-01 TRAY (AU)
402 4-981-923-01 SCREW (M), STEP
403 1-773-983-11 WIRE (FLAT TYPE)(5 CORE)
404 3-080-478-01 BELT
405 A-4728-690-A RF BOARD, COMPLETE
406 4-243-741-01 BASE (AU), LOADING
407 1-689-264-11 PWB, FLEXIBLE (24 CORE)
0 408 1-477-263-11 OPTICAL PICK-UP (TDP022W)
409 4-243-743-01 HOLDER (DBU1)
410 3-053-847-41 INSULATOR
