Sony HCD-EX1 - Amplifier Block Disassembly; CD Block Disassembly

10

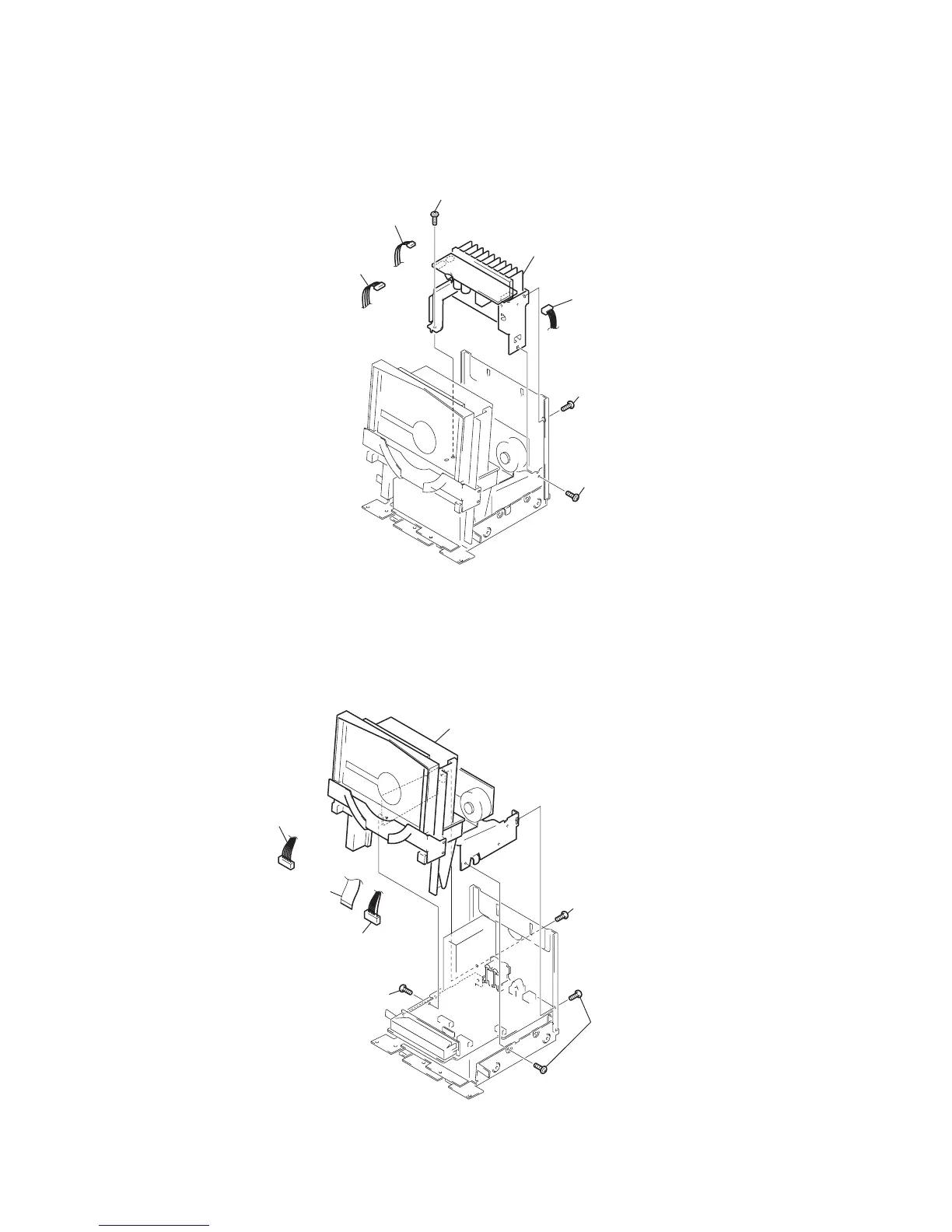

3-4. CD BLOCK
3-3. AMP BLOCK
Connector
AMP board: CN801
Screw (BVTT3x5)
AMP block
Screw (BVTT3x5)
Screw (BVTT3x5)
Connector
AMP board: CN810
Connector
AMP board: CN802
1
2
3
4
5
6
7
Connector
MAIN board: CN351
Flat type wire (16 core)
Connector
MAIN board: CN301
1
2
3
4
5
6
7
Two screws (BVTT3x5)
Screw (BVTT3x5)
Screw (BVTT3x5)
CD block
