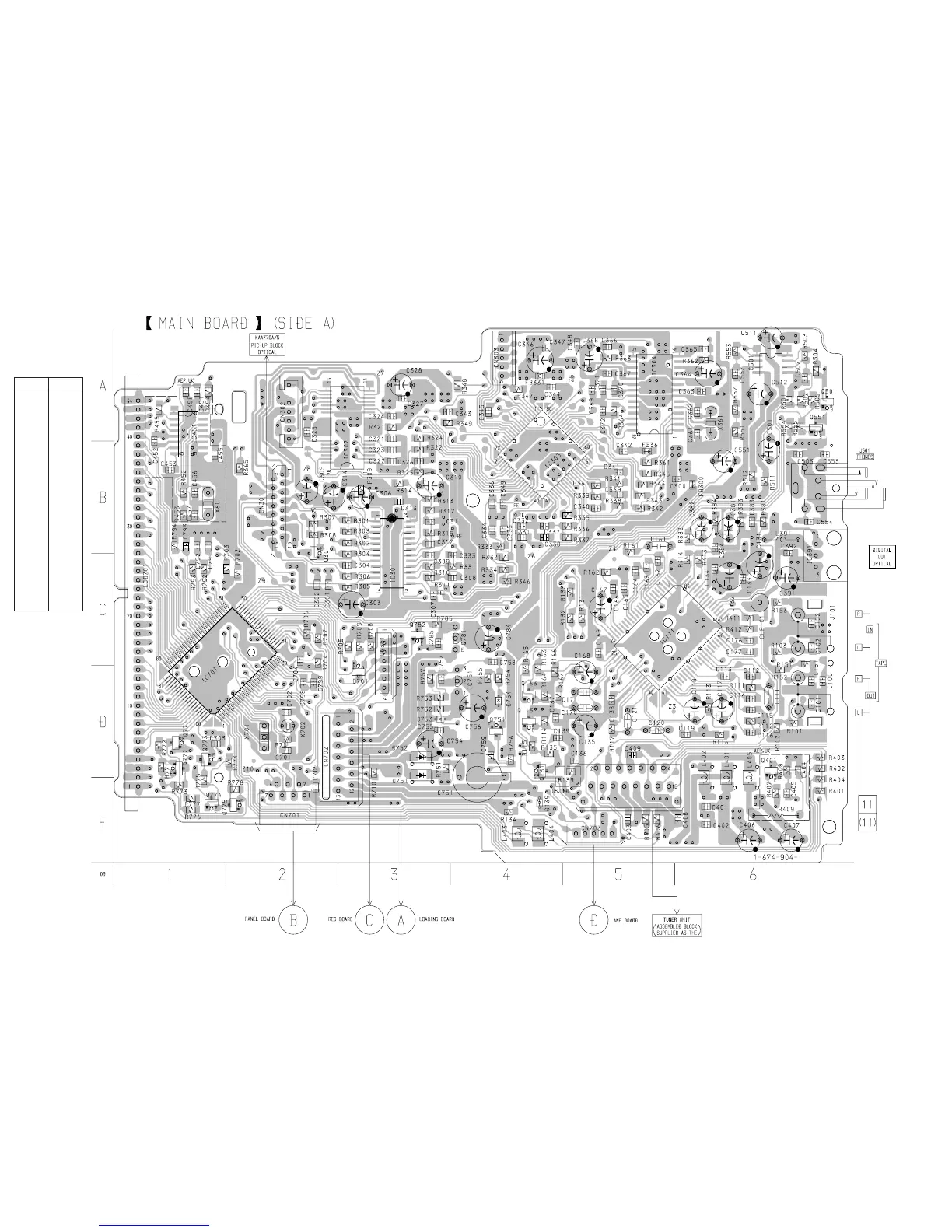

5-2. PRINTED WIRING BOARD – MAIN SECTION –
• See page 14 for Circuit Boards Location.
Ref. No. Location
D139 E-4
D701 D-3
D751 D-3
D752 D-3
D753 D-3
D754 D-4
IC111 C-5
IC301 C-3
IC302 B-3
IC303 B-4
IC304 A-5
IC391 B-6
IC451 A-1
IC501 A-6
IC701 D-1
IC751 C-4
Q113 D-4
Q131 D-4
Q163 D-4
Q301 C-2
Q401 D-6
Q751 D-4
Q771 D-1
Q772 D-1
Q781 C-4
Q782 C-3
• Semiconductor
Location
