Sony HCD-EX1 - Printed Wiring Board - Power Section

HCD-EX1
26 26

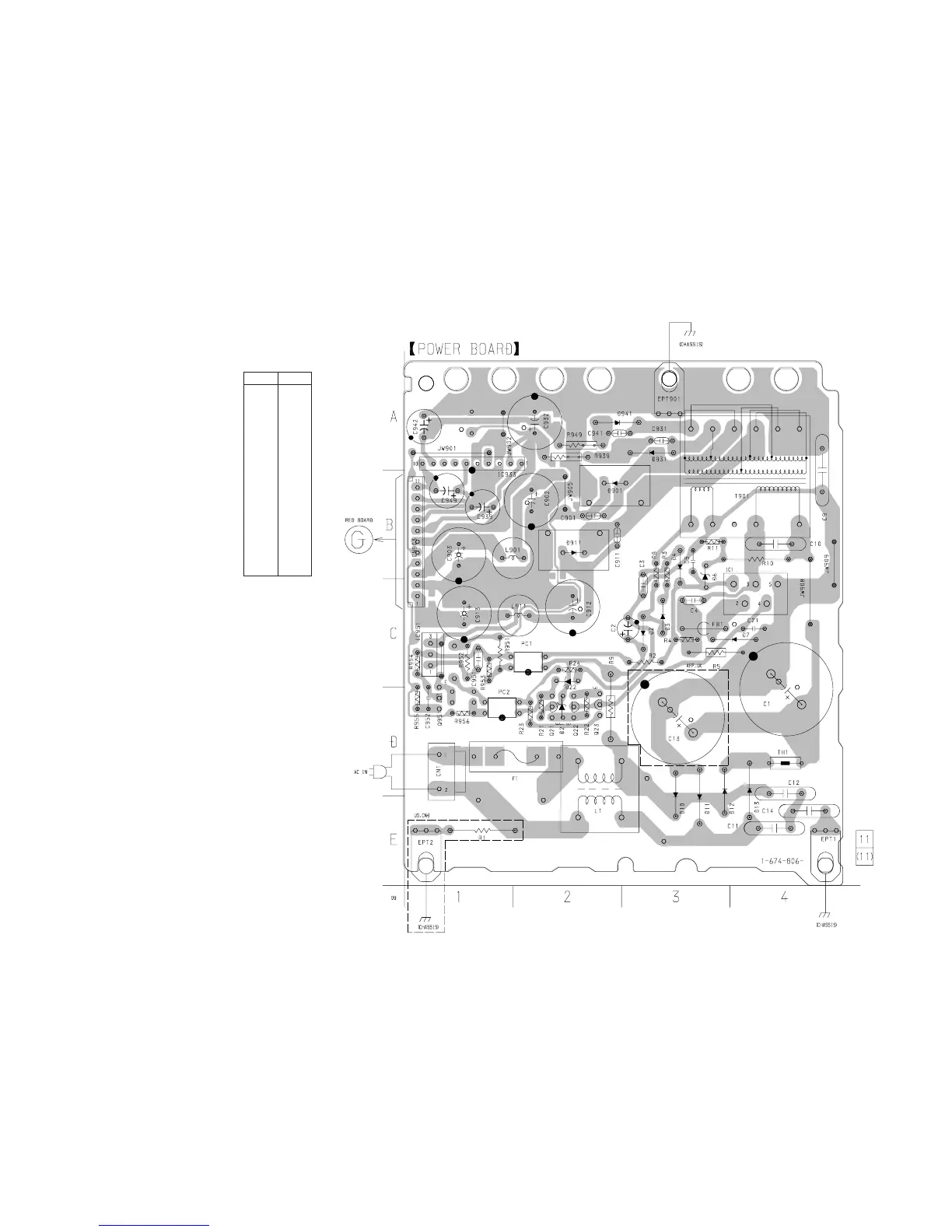

5-12. PRINTED WIRING BOARD – POWER SECTION –
• See page 14 for Circuit Boards Location.
Ref. No. Location
D2 C-3
D3 C-3
D4 B-3
D6 B-3
D7 C-4
D10 E-3
D11 E-3
D12 D-3
D13 D-3
D21 D-2
D22 C-2
D901 B-2
D911 B-2
D931 A-3
D941 A-2
IC1 C-4
IC933 A-1
IC951 B-1
Q21 D-2
Q22 D-2
Q23 D-2
Q951 D-1
• Semiconductor
Location
(Page 28)
