Sony HCD-EX1 - GENERAL INFORMATION; Parts and Controls Identification

7

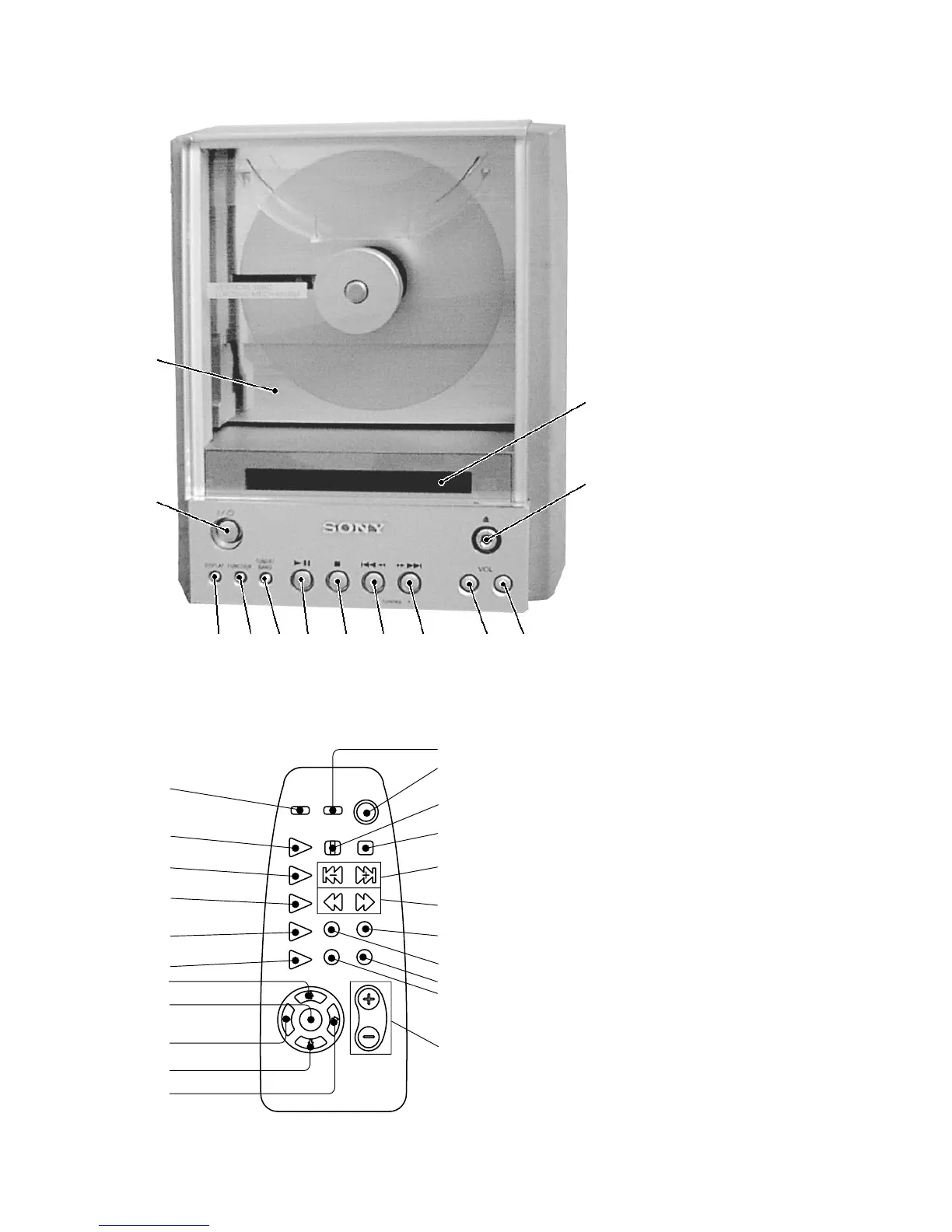

LOCATION OF PARTS AND CONTROLS
1 1/u (power) button
2 DISC tray
3 Display window
4 6 button
5 VOLUME + button
6 VOLUME – button
7 )+/TUNING + button
8 =0/TUNING – button
9 p (stop) button
10 ^ button
11 TUNER/BAND button
12 FUNCTION button
13 DISPLAY button
SECTION 2
GENERAL
2
1
4
3
7
913 8 56
10
1112
Remote
1
2
4
3
7
9
8
5
6
10
11
12
13
14
17
19
18
15
16
20
21
22
1 OPEN/CLOSE button
2 CD · button
3 TUNER/BAND button
4 FUNCTION button
5 CD PLAY MODE button
6 TUNING MODE button
7 MEMORY button
8 ENTER button
9 TIMER SET button
10 SLEEP button
11 TIMER SELECT button
12 DISPLAY button
13 1/u (power) button
14 ∏ button
15 π button
16 ≠/± (AMS) TUNING +/– button
17 º/‚ button
18 REPEAT button
19 DSG button
20 SURROUND button
21 STEREO/MONO button
22 VOLUME +/– button
• AMS is the abbreviation for Automatic Music Sensor.
Front Panel
