HCD-EX1
24 24

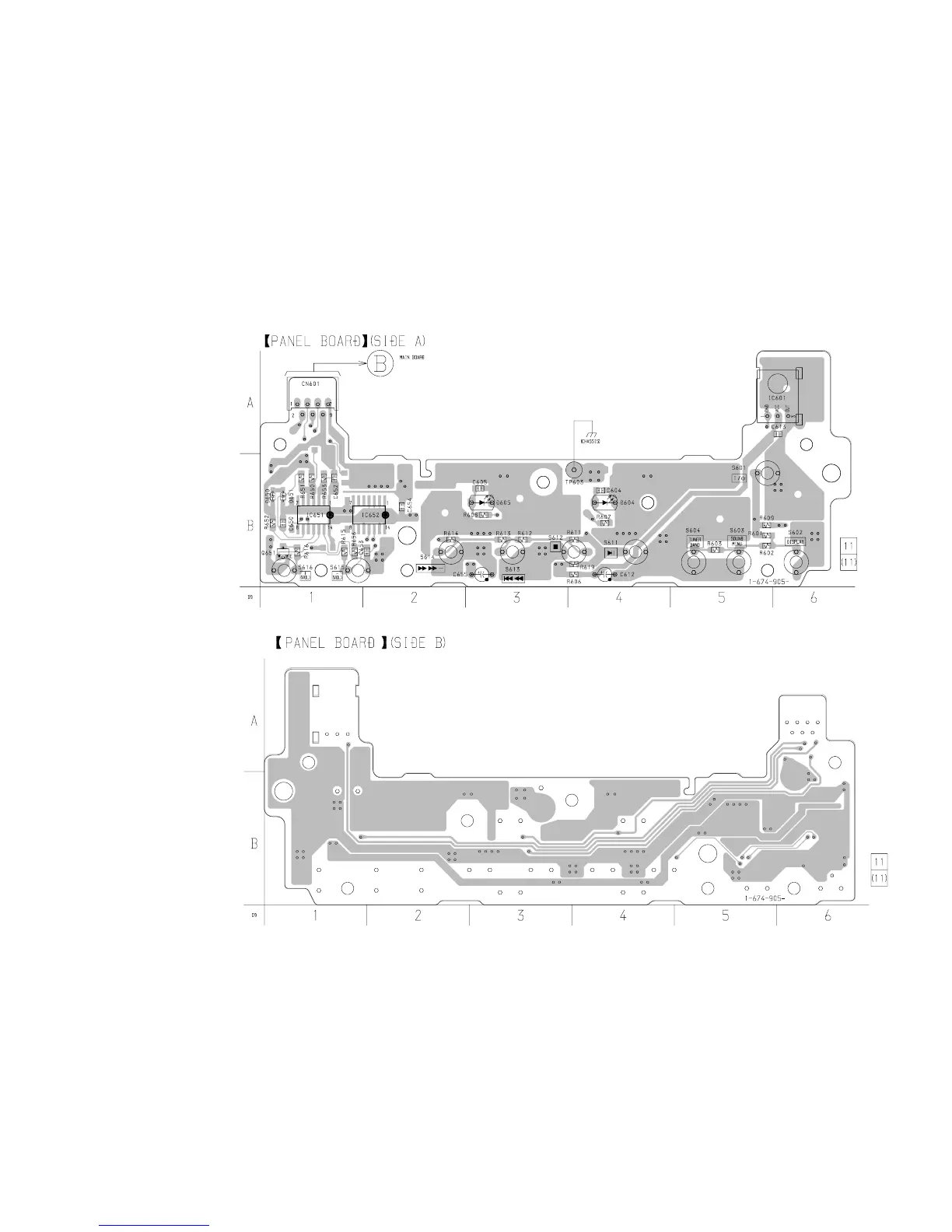

5-10. PRINTED WIRING BOARD – PANEL SECTION –
• See page 14 for Circuit Boards Location.
(Page 16)
