Sony HCD-EX200 - Panel Board and Stabilizer; AMP Block

10
HCD-EX200

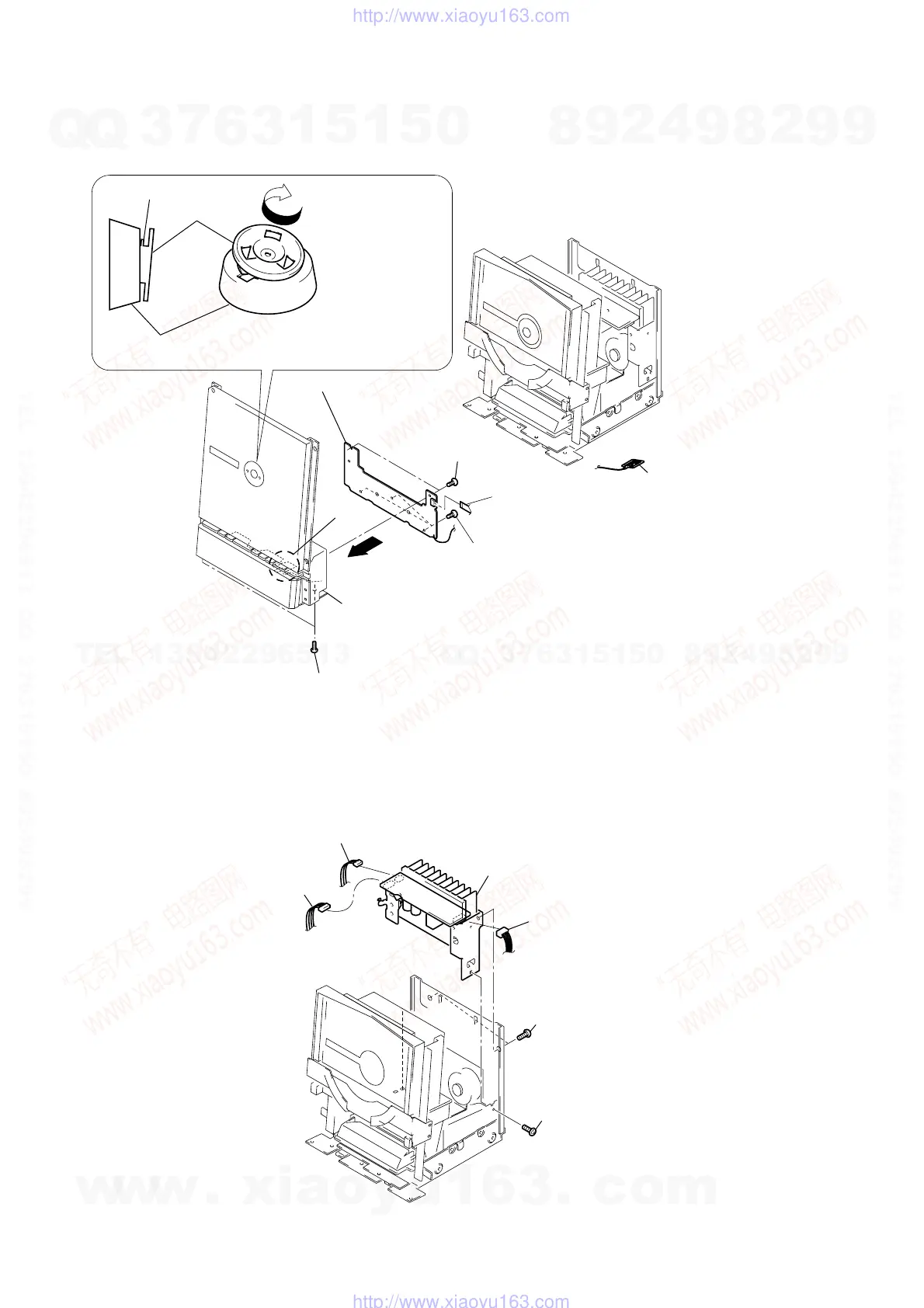

3-3. AMP BLOCK
3-2. PANEL BOARD AND STABILIZER
4
2
3
Remove the Earth clip
Front panel assy
1 Two screws (+BVTT3X5)
5
Two screws
(+BVTT2.6X8)
5
Three screws
(+BVTT2.6X8)
7
Panel board
6
Flat type wire
(CN601)
Claw
Stabilizer
Stabilizer
Stabilizer claw
Turn the stabilizer claw in the direction
of the arrow to remove it from the notch
on the stabiholder.
Connector
AMP board: CN801
AMP block
Two screw (BVTT3x5)
Screw (BVTT3x5)
Connector
AMP board: CN810
Connector
AMP board: CN802
2
3
4
1
1
5
